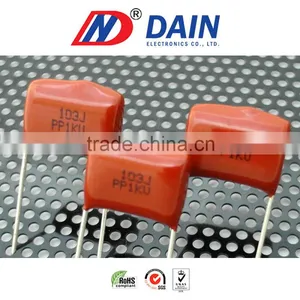

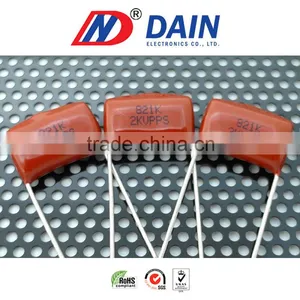

Your best choice High quality polypropylene film capacitor high voltage starting capacitor
Lead length
Code |
04 |
08 |
10 |
13 |
23 |
30 |
40 |
Length(mm) |
4mm |
8mm |
10mm |
13mm |
23mm |
30mm |
40mm |

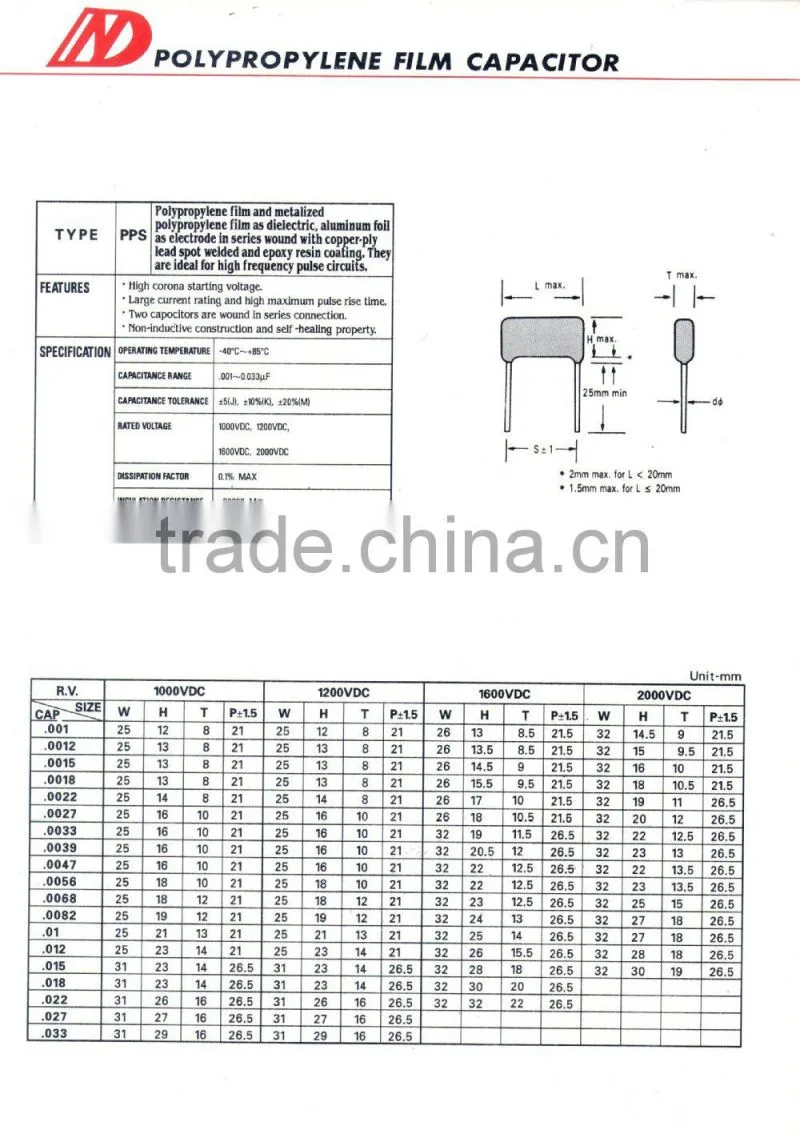

Specifications ( IEC 60384-17)
No |
Test items |
Performance |
Test Method |
7-1 |
Withstand voltage (Between Terminals) |
Shall be no abnormality |
150% Of Rated Voltage, 60sec. |
|
Between terminal and Enclosure |
Shall be no abnormality |
UR×200%+1000VDC, 60sec. |
No |
Test items |
Performance |
Test Method |
7-2 |
Insulation resistance (Between Terminals) |
IR≥50,000MΩ |
Measured at 100±15VDC, For 60sec / 25C |
7-3 |
Capacitance |
Within the tolerance specified |
1KHz, 1Vrms Max. at 25C |
7-4 |
Dissipation Factor |
0.001 (0.1%) Max. |
1KHz, 1Vrms Max. at 25C |
7-5 |
Tense Strength of Terminal |
No wire breakage and No Damage of Capacitor |
1. Load Force : 1.0 Kg 2. Holding Time : 10 ± 1sec |
7-6 |
Bending Strength of Terminal |
No wire breakage and No Damage of Capacitor |
1. Load Force : 0.5 Kg 2. Bending Time : 4 x 90 in 5sec |
No |
Test items |
Performance |
Test Method |
7-7 |
Solder-ability |
1. Appearance : No Visible Damage 2. Covering an area of > solder 95% |
Soldering Peocess 1.Capacitor preheating temperature of T < 120 ℃ 2.Preheating time capacitor t< 5 min Single wave soldering 1.Solder temperature: 270±5℃
2.Solder time: 2±0.5sec |
7-8 |
Heat Shock test |
(1) Appearance : No Visible Damage (2) Withstand Voltage : Normal (3) Capacitance Change : ≤ ±3% of The Initial Value |
The terminal of capacitor shall be immersed in the melting solder. a. Solder temperature: 270±5℃ b. Solder time: 3±0.5sec c. Test Voltage: 100% of The Rate Voltage For 1min. |
7-9 |
Cold Resistance |
(1) Appearance : No Visible Damage (2) Capacitance Change : ≤ 0~ -10% of The Initial Value |
a. Test Temperature: -40℃
b.Test Times: 2Hrs |
7-10 |
Dry Heat Resistance |
(1) Appearance : No Visible Damage (2) Withstand Voltage : Normal (3) Capacitance Change : ≤ +5~ -2% Of The Initial Value
|
a. TEST TEMPERATURE: 85℃ ± 2℃ b. Test Times: 2Hrs |
◊ Machinery and Equipment
◊Testing Instrument
| Lead time | 14-35 days (If no stock) ; but it can be change by your request |
| Payment |
T/T in advance |
| Shipping way | By SEA, AIR, Express |
◊ Dain Five Promises
♦Because there are many faked DAIN products in China , we highly recommend you to contact and purchase with original DAIN company (TAIWAN) directly to ensure quality of your product.
A specialized manufacture of capacitor since 1989.
Over 26 years capacitors production experiences.
Reliable capacitor, reliable partner.
Looking for high quality supplier, come to Dain, don't hestiate to contact with us!
