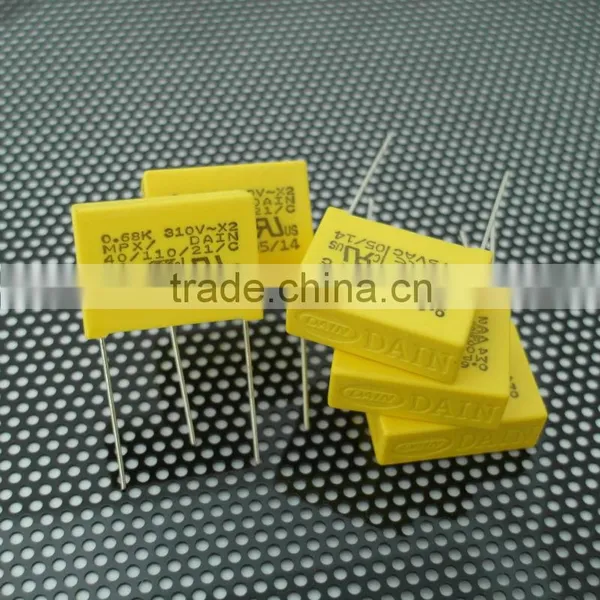

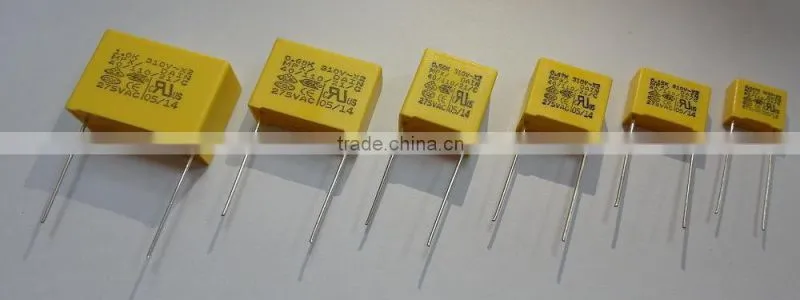

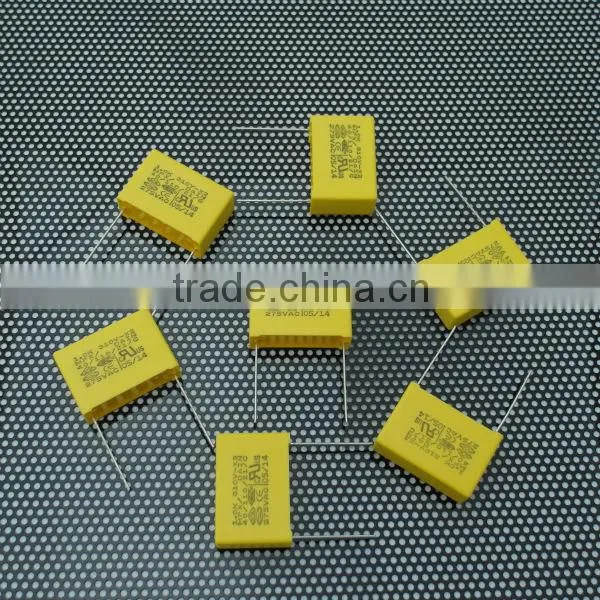

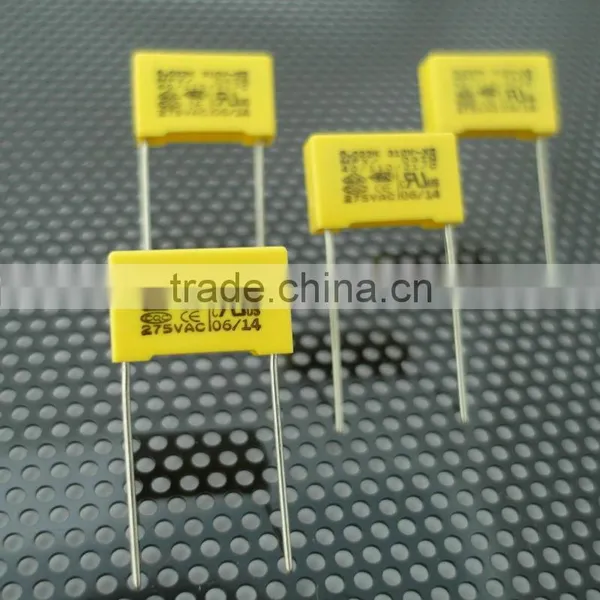

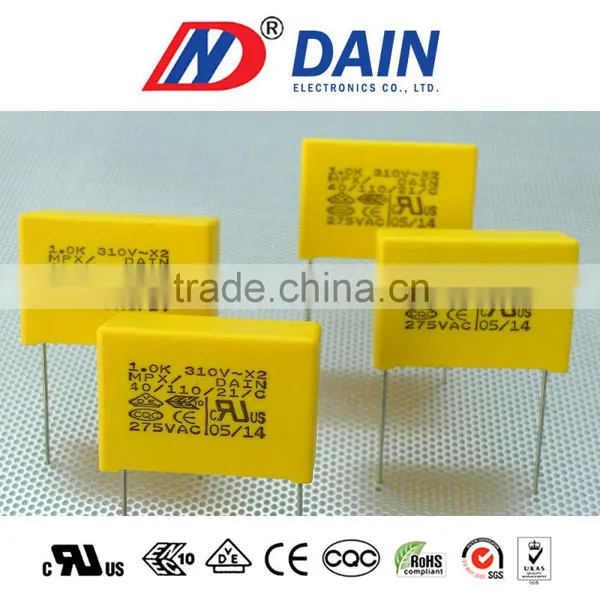

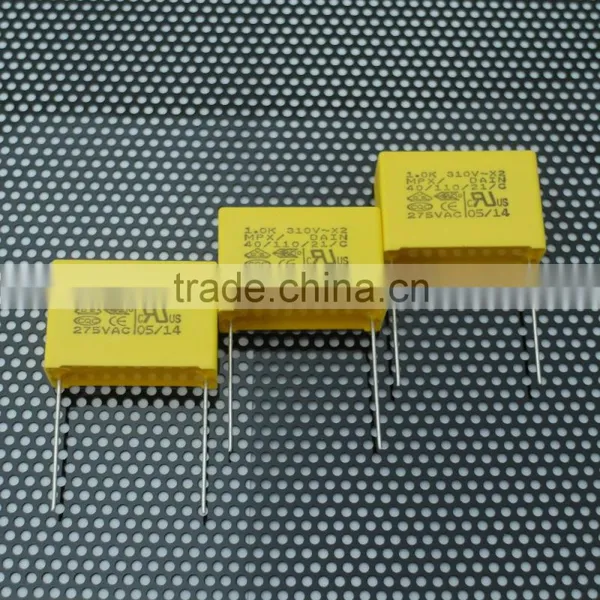

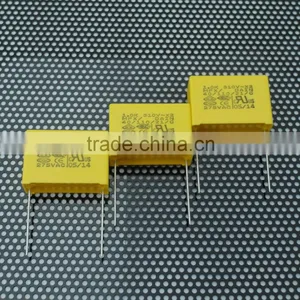

Typical application antenna coupling and Line by pass components interference suppression capacitors
Features
l UL, cUL,VDE, ENEC, CQC, CE APPROVALS
l NON-INDUCTIVE & SELF-HEALING CONTRUCTION
l RoHS COMPLIANT & Pb-FREE FINISH
l MOLDED PLASTIC CASE & EPOXY RESIN MEETS UL-94-0 FLAMMABILITY TEST
Typical application
l Fixed capacitors for use in electronics equipment-component,
l Across-the-line, Antenna-coupling, Line-by-pass,
l Interference suppression, Connection to the supply mains
l EMI filter and spark killer circuits
Electrical Characteristics
Dielectric: Polypropylene film
Electrodes: Metallized film
Capacitance Tolerance: J (±5%), K (±10%), M (±20%)
Range Capacitance: 0.001μF~ 1μF
Dissipation Factor: 0.01% Max. at 1 KHz and 25℃
Insulation Resistance:15000MΩ (Min.) for C ≤ 0.33μF > 5000MΩ for C > 0.33μF
Rated Voltage: 250 VAC for UL,cUL
275 VAC for UL,cUL, VDE, CQC, CE, ENEC,
310 VAC for UL,cUL
Operating Temperature: -40~+110℃

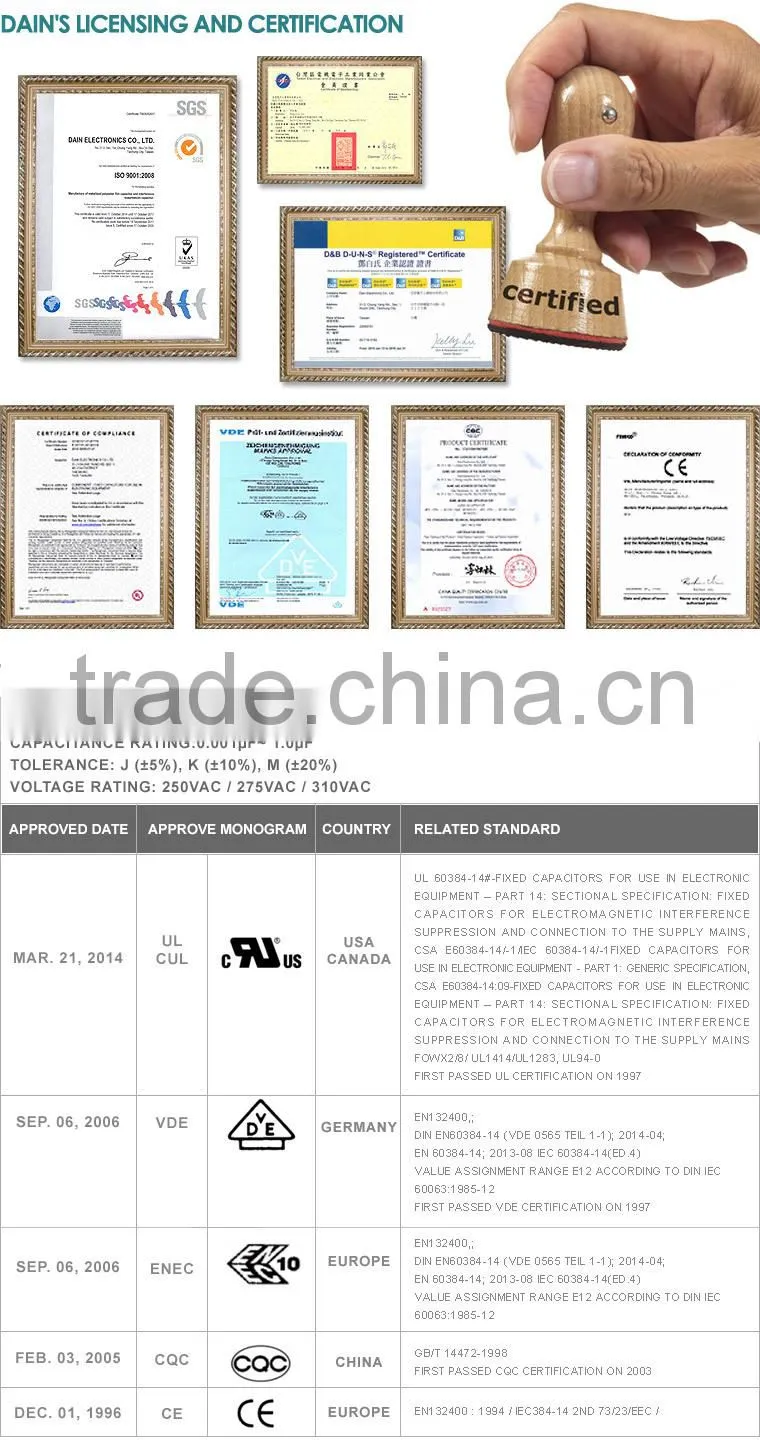

International Technical standard:
In accordance with IEC60384-14(ed.3) DIN EN60384-14(VDE 0565 Teil 1-1):2006-04; EN132400 & UL1414 UL1283 Jun 19, 2003- UL60384-14 (Passive flammability category B)& GLF/C.(C: passive flammability category C) UL(B: passive flammability category B) Minimum Limit Temperature: G = -40℃ Maximum Limit Temperature: L= +110℃
CODE |
MFD |
PART NO |
250/275VAC/310VAC |
SPQ (PCS) |
||||
L±1.0 |
H±1.0 |
T±1.0 |
P±0.5 |
d±0.08 |
||||
|
102- 103 |
0.001- 0.01 |
MPX102K310ACC2 |
13 |
11 |
5 |
10 |
0.6 |
500 |
103 |
0.01 |
MPX103K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
123 |
0.012 |
MPX123KC310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
153 |
0.015 |
MPX153K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
183 |
0.018 |
MPX183K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
223 |
0.022 |
MPX223K310ACC2 |
13 |
11 |
5 |
10 |
0.6 |
500 |
223 |
0.022 |
MPX223K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
273 |
0.027 |
MPX273K310ACC2 |
13 |
11 |
5 |
10 |
0.6 |
500 |
273 |
0.027 |
MPX273K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
333 |
0.033 |
MPX333K310ACC2 |
13 |
11 |
5 |
10 |
0.6 |
500 |
333 |
0.033 |
MPX333K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
393 |
0.039 |
MPX393K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
473 |
0.047 |
MPX473K310ACC2 |
13 |
11 |
5 |
10 |
0.6 |
500 |
473 |
0.047 |
MPX473K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
563 |
0.056 |
MPX563K310ACC2 |
13 |
11 |
5 |
10 |
0.6 |
500 |
563 |
0.056 |
MPX563K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
683 |
0.068 |
MPX683K310ACC2 |
13 |
11 |
5 |
10 |
0.6 |
500 |
683 |
0.068 |
MPX683K310ACD1 |
18 |
11 |
5 |
15 |
0.8 |
500 |
823 |
0.082 |
MPX823K310ACC3 |
13 |
12 |
6 |
10 |
0.6 |
500 |
823 |
0.082 |
MPX823K310ACD2 |
18 |
12 |
6 |
15 |
0.8 |
500 |
104 |
0.1 |
MPX104K310ACC3 |
13 |
12 |
6 |
10 |
0.6 |
500 |
104 |
0.1 |
MPX104K310ACPD1 |
18 |
11 |
5 |
15 |
0.6 |
500 |
104 |
0.1 |
MPX104K310ACD2 |
18 |
12 |
6 |
15 |
0.8 |
500 |
124 |
0.12 |
MPX124K310ACD2 |
18 |
12 |
6 |
15 |
0.8 |
500 |
154 |
0.15 |
MPX154K310ACD25 |
18 |
13 |
6.2 |
15 |
0.8 |
500 |
154 |
0.15 |
MPX154K310ACD4 |
18 |
14.5 |
8.5 |
15 |
0.8 |
250 |
184 |
0.18 |
MPX184K310ACD4 |
18 |
14.5 |
8.5 |
15 |
0.8 |
250 |
224 |
0.22 |
MPX224K310ACD4 |
18 |
14.5 |
8.5 |
15 |
0.8 |
250 |
224 |
0.22 |
MPX224K310ACD25 |
18 |
13 |
6.2 |
15 |
0.8 |
500 |
224 |
0.22 |
MPX224K310ACE2 |
26.5 |
16.5 |
7 |
22.5 |
0.8 |
250 |
274 |
0.27 |
MPX274K310ACE3 |
26.5 |
17 |
8.5 |
22.5 |
0.8 |
200 |
334 |
0.33 |
MPX334K310ACD5 |
18 |
16 |
10 |
15 |
0.8 |
250 |
334 |
0.33 |
MPX334K310ACE3 |
26.5 |
17 |
8.5 |
22.5 |
0.8 |
200 |
394 |
0.39 |
MPX394K310ACE4 |
26.5 |
19 |
10 |
22.5 |
0.8 |
150 |
474 |
0.47 |
MPX474K310ACD5 |
18 |
16 |
10 |
15 |
0.8 |
250 |
474 |
0.47 |
MPX474K310ACE3 |
26.5 |
17 |
8.5 |
22.5 |
0.8 |
200 |
474 |
0.47 |
MPX474K310ACE4 |
26.5 |
19 |
10 |
22.5 |
0.8 |
150 |
474 |
0.47 |
MPX474K310ACF1 |
32 |
20 |
11 |
27.5 |
0.8 |
100 |
564 |
0.56 |
MPX564K310ACF1 |
32 |
20 |
11 |
27.5 |
0.8 |
100 |
684 |
0.68 |
MPX684K310ACD6 |
18 |
18.5 |
11 |
15 |
0.8 |
|
684 |
0.68 |
MPX684K310ACE4 |
26.5 |
19 |
10 |
22.5 |
0.8 |
150 |
684 |
0.68 |
MPX684K310ACF1 |
32 |
20 |
11 |
27.5 |
0.8 |
100 |
824 |
0.82 |
MPX824K310ACD6 |
18 |
18.5 |
11 |
15 |
0.8 |
250 |
824 |
0.82 |
MPX824K310ACF2 |
32 |
22 |
13 |
27.5 |
0.8 |
100 |
824 |
0.82 |
MPX824K310ACE6 |
26.5 |
21.5 |
12 |
22.5 |
0.8 |
100 |
105 |
1 |
MPX105K310ACE6 |
26.5 |
21.5 |
12 |
22.5 |
0.8 |
100 |
105 |
1 |
MPX105K310ACF1 |
32 |
20 |
11 |
27.5 |
0.8 |
100 |
105 |
1 |
MPX105K310ACF2 |
32 |
22 |
13 |
27.5 |
0.8 |
100 |
