Home > Products > Flow Meter > Diameter 80 Electromagnetic Flow Meter

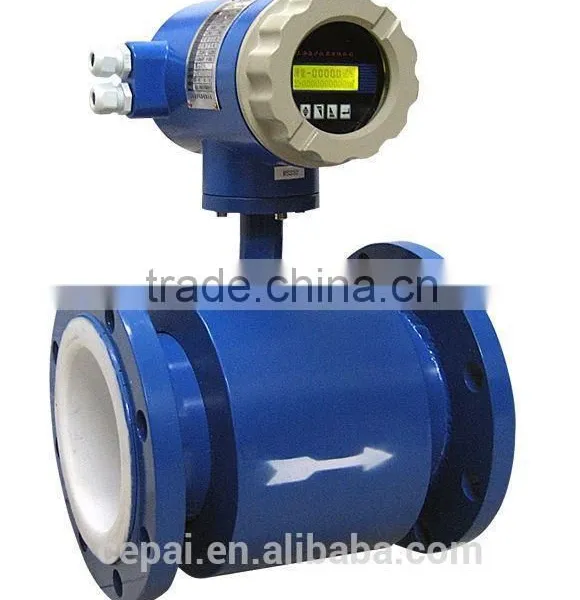

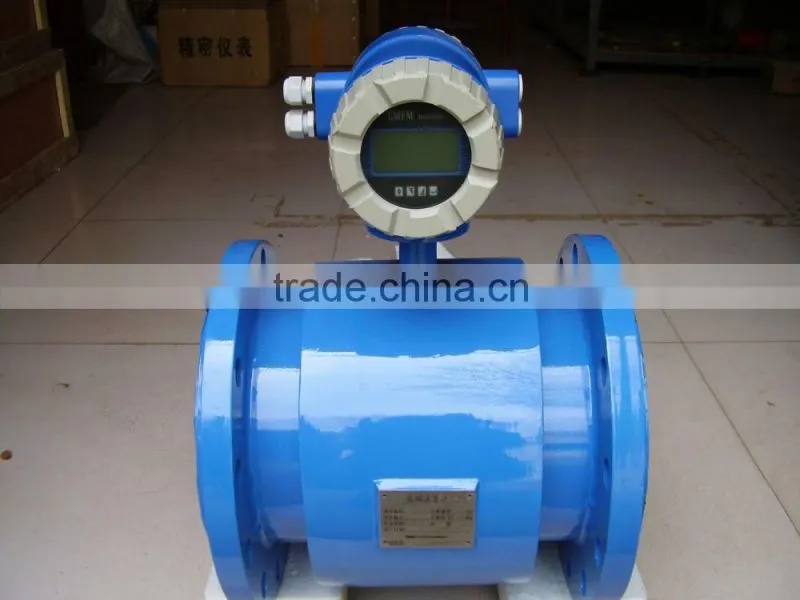

Diameter 80 Electromagnetic Flow Meter
- 5000 Piece / Pieces per Month
- shanghai jiangsu
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | CEPAI | Model Number: | LDGY-80 |
Product Description
Medium: liquid and mixed liquid with conductivity more than 5μS/cm
Flow velocity: 0.2~8m/s
Environment temperature: -40℃~+50℃
Medium temperature: PTFE line, not more than 180℃
Rubber line, not more than 65℃
Explosion-proof: ExmibdⅡBT4
Magnetic interference: ≤400A/m
Housing: integrated, IP65
Separated, sensor IP68 (underwater 5m, limited to rubber line), converter IP65
Output signal: 4~20mA.DC, load 0~750Ω
Communication output: RS485 or HART
Electric connection: M20×1.5F, cable hole-DN10
Power supply: 90~220V.AC、24±10%V.DC
High quality
test system
High quality
test system
High quality
test system
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Favorable Comment
High quality
Favorable Comment
Good price
Favorable Comment
Full of faith
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
