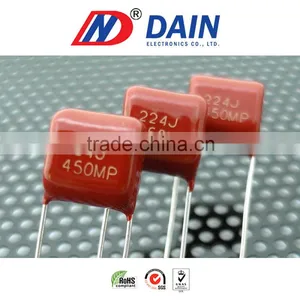

Polypropylene film MFD 0.01 to 4.7 capacitor
- 3000000 Piece / Pieces per Month
- Taichung Kaohsiung Keelung
- T/T L/C D/P D/A
You May Like
-
High quality Metallized Polypropylene film MPP DC 250V 400V 630V capacitor
-
High quality and RoHs MPP capacitor cbb22 400v
-
High quality MPF Metallized polypropylene radial film capacitor 4.7uf 400v
-
MPP film 500vac capacitor cbb60
-
Metallized polypropylene film 630v 400v 1uf 105j 105k cbb22 capacitor
-
High quality Metallized polypropylene film RoHs capacitors 4.7uf 400v 250v
Product Details
| Place of Origin | Taiwan | Brand Name | DAIN | |
| Model Number | MPF | Type | Polypropylene Film Capacitor | |
| Application | General Purpose | Package Type | Other | |
| Capacitance | 0.01~4.7MFD | Rated Voltage | DC 250V, 400V, 630V | |
| Operating Temperature | -40~+85 |
Product Description

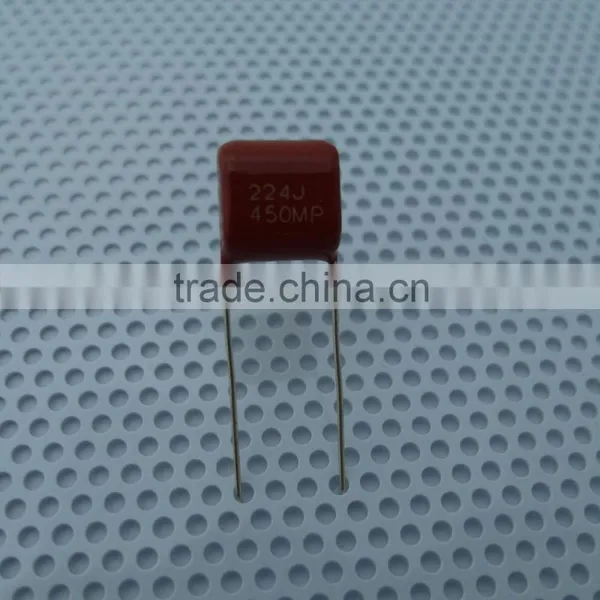

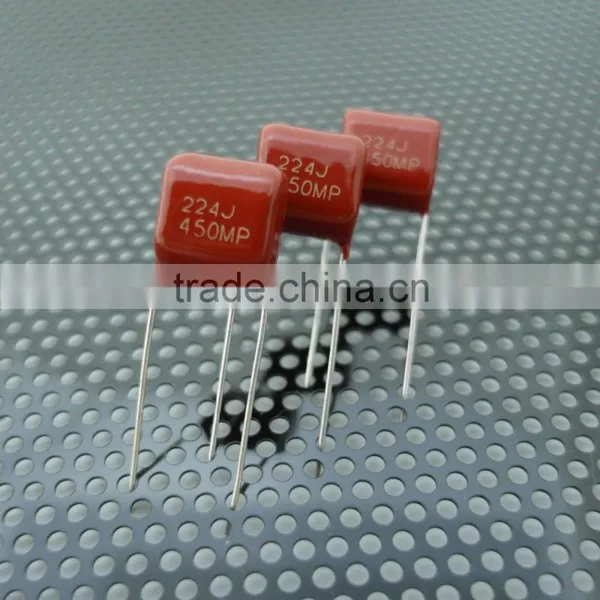

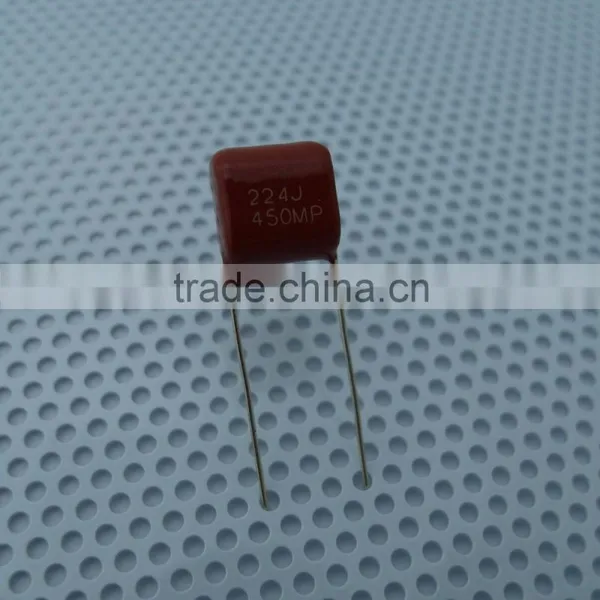

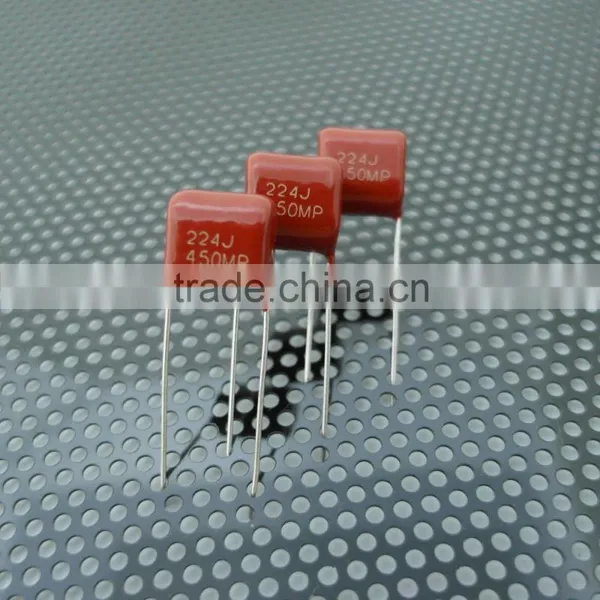

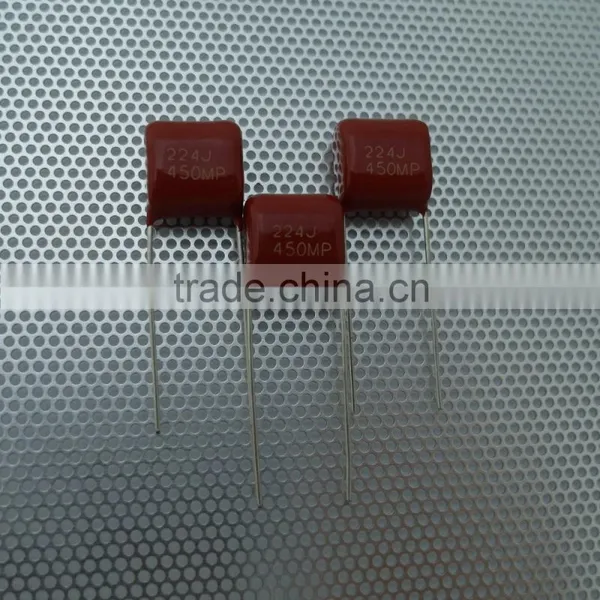

Polypropylene film MFD 0.01 to 4.7 capacitor

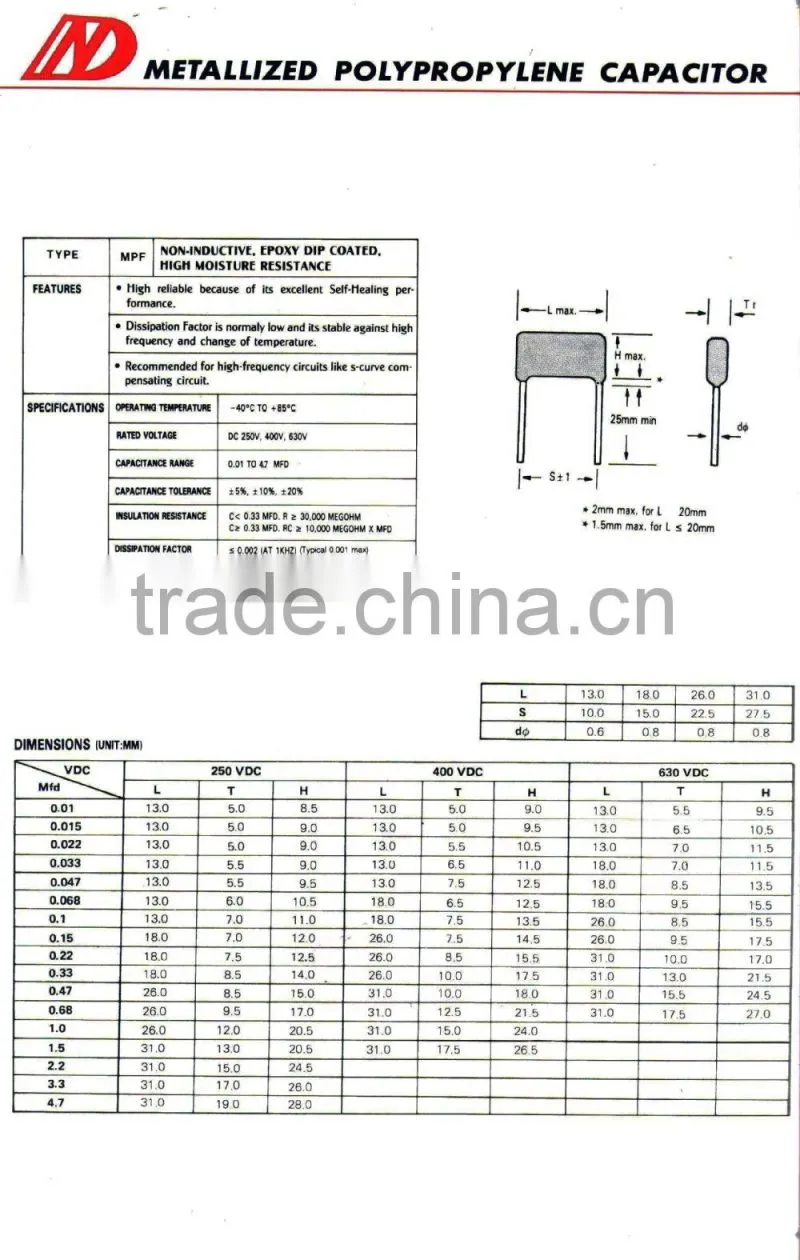

Specifications (IEC60384-16)
No | Test items | Performance | Test Method |
7-1 | Withstand voltage (Between Terminals) | Shall be no abnormality | 150% Of Rated Voltage, 60sec. |
Between terminal and Enclosure | Shall be no abnormality | UR×200%+1000VDC, 60sec. |
No | Test items | Performance | Test Method |
7-2 | Insulation resistance (Between Terminals) | CR≤ 0.33uF IR≥15,000MΩ CR > 0.33uF IR≥ 5,000 MΩ÷C(uF) | Measured at 100±15VDC, For 60sec / 25 C |
7-3 | Capacitance | Within the tolerance specified | 1KHz, 1Vrms Max. at 25 C |
7-4 | Dissipation Factor | 0.001 (0.1%) Max. | 1KHz, 1Vrms Max. at 25 C |
7-5 | Tense Strength of Terminal | No wire breakage and No Damage of Capacitor | 1. Load Force : 1.0 Kg 2. Holding Time : 10 ± 1sec |
7-6 | Bending Strength of Terminal | No wire breakage and No Damage of Capacitor | 1. Load Force : 0.5 Kg 2. Bending Time : 4 x 90° in 5sec |
|

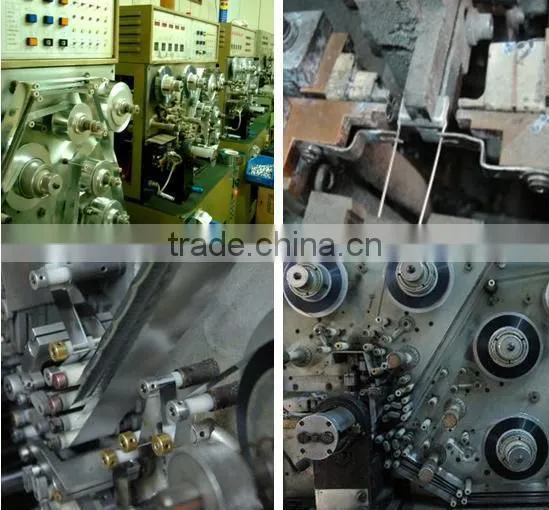

◊ Machinery and Equipment

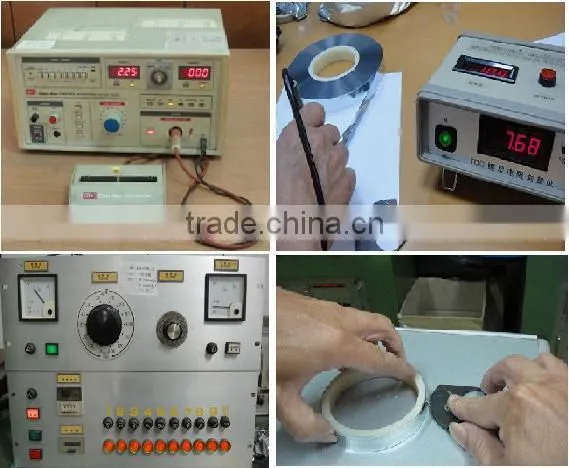

◊Testing Instrument
| Lead time | 14-35 days (If no stock) ; but it can be change by your request |
| Payment | T/T in advance |
| Shipping way | By SEA, AIR, Express |
◊ Dain Five Promises
♦Because there are many faked DAIN products in China , we highly recommend you to contact and purchase with original DAIN company (TAIWAN) directly to ensure quality of your product.
A specialized manufacture of capacitor since 1989.
Over 26 years capacitors production experiences.
Reliable capacitor, reliable partner.
Looking for high quality supplier, come to Dain, don't hestiate to contact with us!
