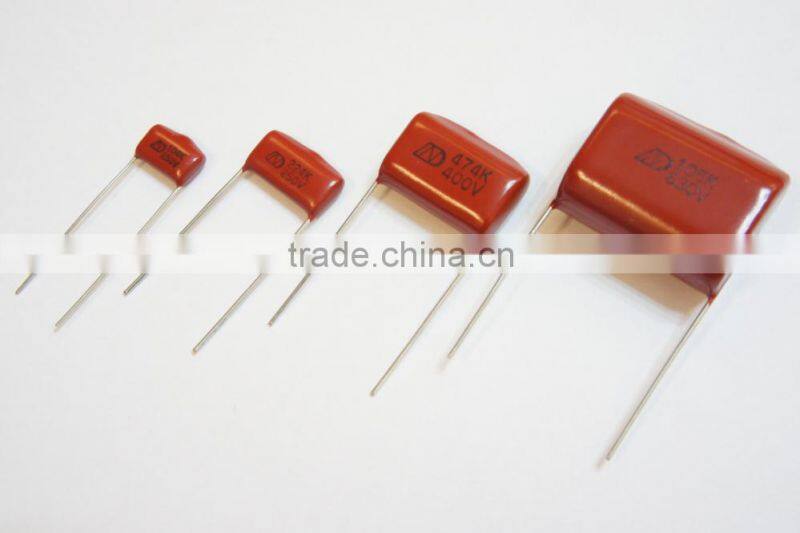

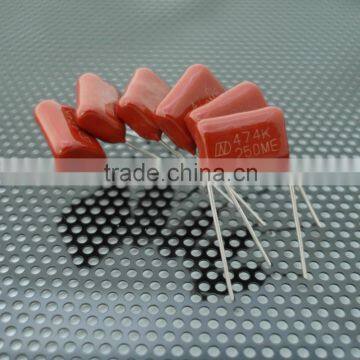

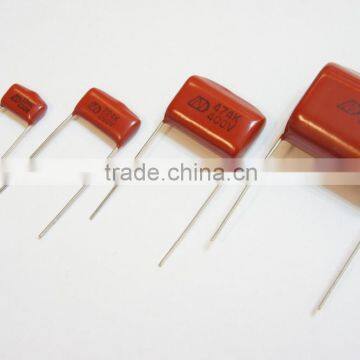

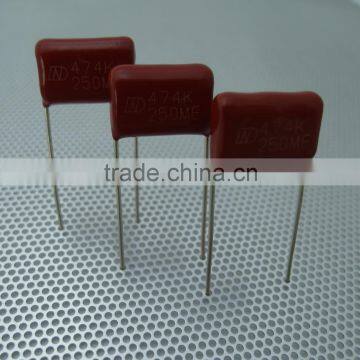

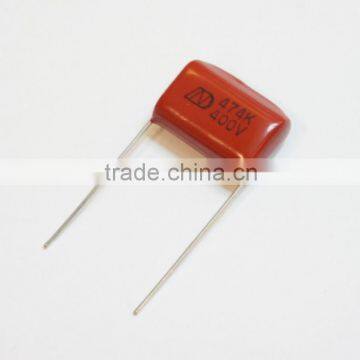

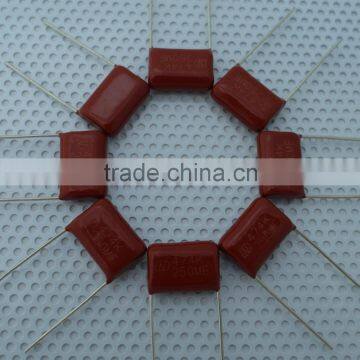

Metallized polyester 400v film capacitor mfd 155j 400v film capacitors 225k 630v
MEF type is self-healing flat style capacitor which is winging with Metallized Polyester Film as dielectric, epoxy resin dip coated and with radial CP wire.
Electrical Characteristics
Operating Temperature : -40℃~ +85℃
Capacitance Tolerance : J (±5%), K (±10%), M( ±20%)
Capacitance Range: 0.01uF ~ 10 uF
Dissipation Factor: 1% Max, at 1 KHz and 25℃
Insulation Resistance: ≥15000MΩfor C≤0.33uF
≥5000MΩ.uF for C>0.33uF
Rated Voltage: 100, 250, 400, 630VDC
Dielectric Strength: 175% of rated voltage for 3 - 5 sec.
Dimensions: (mm) (Max.)
◊ DAIN’s products are RoHs.
| CODE | MFD | 100VDC | 250VDC | 400VDC | 630VDC | ||||||||||||||||
| L | H | T | P | d | L | H | T | P | d | L | H | T | P | d | L | H | T | P | d | ||
| ±0.08 | ±0.08 | ±0.08 | ±0.08 | ||||||||||||||||||
| 103 | 0.01 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 |
| 153 | 0.015 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 6 | 10 | 0.6 |
| 183 | 0.018 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 |
| 223 | 0.022 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 11 | 6.5 | 10 | 0.6 |
| 333 | 0.033 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 18 | 11 | 6 | 15 | 0.8 |
| 473 | 0.047 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 11 | 6.5 | 10 | 0.6 | 18 | 12 | 7 | 15 | 0.8 |
| 563 | 0.056 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 18 | 12 | 8 | 15 | 0.8 |
| 683 | 0.068 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 11 | 6.5 | 10 | 0.6 | 18 | 13 | 8 | 15 | 0.8 |
| 104 | 0.1 | 12 | 10 | 5.5 | 10 | 0.6 | 12 | 10 | 5.5 | 10 | 0.6 | 18 | 11 | 7 | 15 | 0.8 | 18 | 15 | 9.5 | 15 | 0.8 |
| 154 | 0.15 | 12 | 10.5 | 7 | 10 | 0.6 | 12 | 10.5 | 7 | 10 | 0.6 | 18 | 13 | 8 | 15 | 0.8 | 23 | 16 | 9 | 20 | 0.8 |
| 224 | 0.22 | 12 | 11 | 7.5 | 10 | 0.6 | 18 | 11 | 7 | 15 | 0.8 | 18 | 14 | 9.5 | 15 | 0.8 | 23 | 18 | 11 | 20 | 0.8 |
| 334 | 0.33 | 12 | 11 | 8 | 10 | 0.6 | 18 | 12 | 7 | 15 | 0.8 | 23 | 16 | 8.5 | 20 | 0.8 | 31 | 17.5 | 10.5 | 27 | 0.8 |
| 474 | 0.47 | 18 | 11 | 6.5 | 15 | 0.8 | 18 | 13 | 8 | 15 | 0.8 | 17 | 12.8 | 8 | 15 | 0.8 | 31 | 21.5 | 12 | 27 | 0.8 |
| 564 | 0.56 | 18 | 11.5 | 7.5 | 15 | 0.8 | 18 | 14 | 9 | 15 | 0.8 | 23 | 19 | 12 | 20 | 0.8 | |||||
| 105 | 1 | 18 | 15 | 9 | 15 | 0.8 | 23 | 17 | 9.5 | 20 | 0.8 | 31 | 20 | 12 | 27 | 0.8 | 31 | 28 | 18 | 27 | 0.8 |
| 155 | 1.5 | 23 | 17 | 9 | 20 | 0.8 | 23 | 18 | 11 | 20 | 0.8 | 31 | 23 | 13 | 27 | 0.8 | |||||
| 225 | 2.2 | 23 | 18 | 10 | 20 | 0.8 | 31 | 20 | 12 | 27 | 0.8 | 31 | 27 | 16 | 27 | 0.8 | |||||
| 335 | 3.3 | 23 | 22 | 13 | 20 | 0.8 | 31 | 22 | 14 | 27 | 0.8 | 31 | 28 | 17 | 27 | 0.8 | |||||
| 475 | 4.7 | 31 | 23 | 13 | 27 | 0.8 | 31 | 24.5 | 15 | 27 | 0.8 | ||||||||||
| 685 | 6.8 | 31 | 24 | 16 | 27 | 0.8 | 36 | 25 | 16 | 33 | 0.8 | ||||||||||
| 106 | 10 | 31 | 26 | 21 | 27 | 0.8 | | ||||||||||||||
◊ Machinery and Equipment
◊Testing Instrument
| Lead time | 14-35 days (If no stock) ; but it can be change by your request |
| Payment | T/T in advance |
| Shipping way | By SEA, AIR, Express |
◊ Dain Five Promises
♦Because there are many faked DAIN products in China , we highly recommend you to contact and purchase with original DAIN company (TAIWAN) directly to ensure quality of your product.
A specialized manufacture of capacitor since 1989.
Over 26 years capacitors production experiences.
Reliable capacitor, reliable partner.
Looking for high quality supplier, come to Dain, don't hestiate to contact with us!
