Taiwan film capacitor product 10uf 250v motor capacitor 250v 50-60hz cbb60 16uf 250v ac motor capacitor

Features

l   UL, cUL,VDE, ENEC, CQC, CE APPROVALS

l   NON-INDUCTIVE & SELF-HEALING CONTRUCTION

l   RoHS COMPLIANT & Pb-FREE FINISH

l   MOLDED PLASTIC CASE & EPOXY RESIN MEETS UL-94-0 FLAMMABILITY TEST

Typical application

l Fixed capacitors for use in electronics equipment-component,

l Across-the-line, Antenna-coupling, Line-by-pass,

l Interference suppression, Connection to the supply mains

l EMI filter and spark killer circuits

Electrical Characteristics

Dielectric:  Polypropylene film

Electrodes:  Metallized film

Capacitance Tolerance:  J (±5%), K (±10%), M (±20%)

Range Capacitance:  0.001μF~ 1μF

Dissipation Factor: 0.01% Max. at  1 KHz and  25℃

Insulation Resistance:15000MΩ (Min.) for C ≤ 0.33μF > 5000MΩ for C > 0.33μF

Rated Voltage:  250 VAC for UL,cUL

                                     275 VAC for UL,cUL, VDE, CQC, CE, ENEC,

                                     310 VAC for UL,cUL

Operating Temperature:  -40~+110℃

International Technical standard:

 In accordance with IEC60384-14(ed.3) DIN EN60384-14(VDE 0565 Teil 1-1):2006-04; EN132400 & UL1414 UL1283 Jun 19, 2003- UL60384-14 (Passive flammability category B)& GLF/C.(C: passive flammability category C) UL(B: passive flammability category B) Minimum Limit Temperature: G = -40℃ Maximum Limit Temperature: L= +110℃

◊ The latest Safety Regulation Approval

◊Testing Instrument

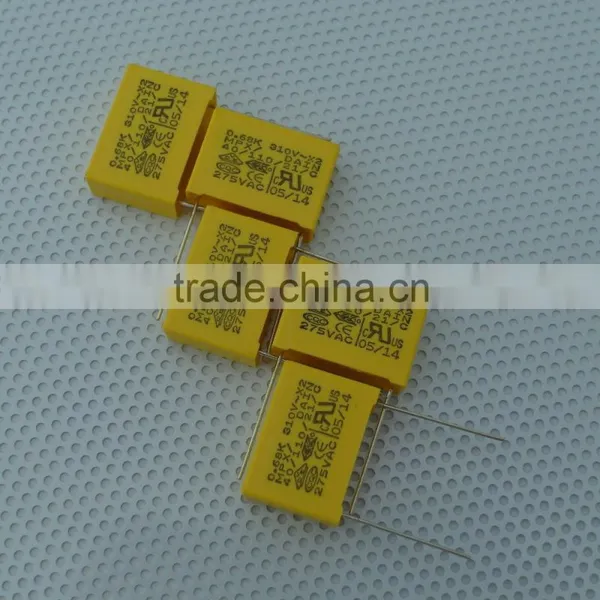

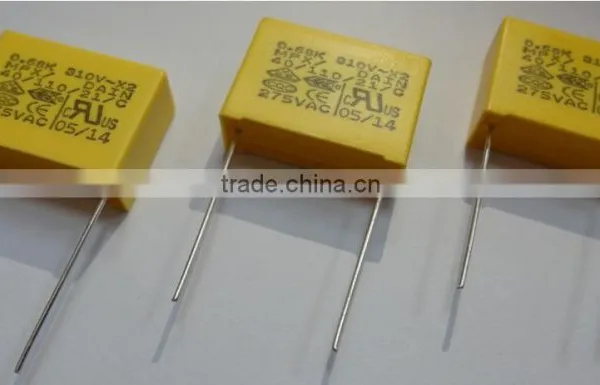

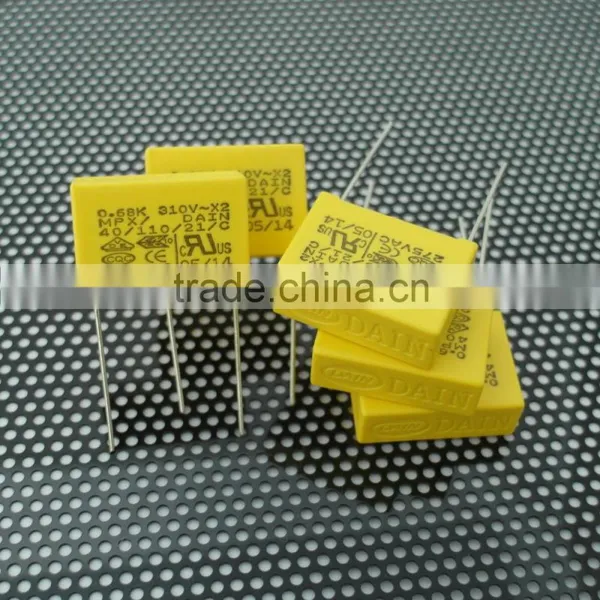

METALLIZED POLYPROPYLENE FILM CAPACITOR

◊ Dain Five Promises

♣SINCERE SERVICE: Provide the quickest and best service inculding quotation, samples, delivery

♣PROMPT DELIVERY: DAIN can deliver goods to Taiwan, China and all around the world. Delivey place and lead time can be adjusted according to customer's requirement

♣CONTINUAL IMPROVEMENT: Having laboratory to Keep improving product quality. At the same time, also keep updating the safety regulation approval.

♣REASONABLE PRICE: Dain not only provides customer good quality but also offer favorable price.

♣HIGH QUALITY: 1.Dain uses import A plus Film 2. Case use Nan. Ya plastics Corp Flame class V-0 140°c

3. Expoxy use Flame class V-0 130°c

♦Because there are many faked DAIN products in China , we highly recommend you to contact and purchase with original DAIN company (TAIWAN) directly to ensure quality of your product.

Looking for high quality supplier, come to Dain, don't hestiate to contact with us!
