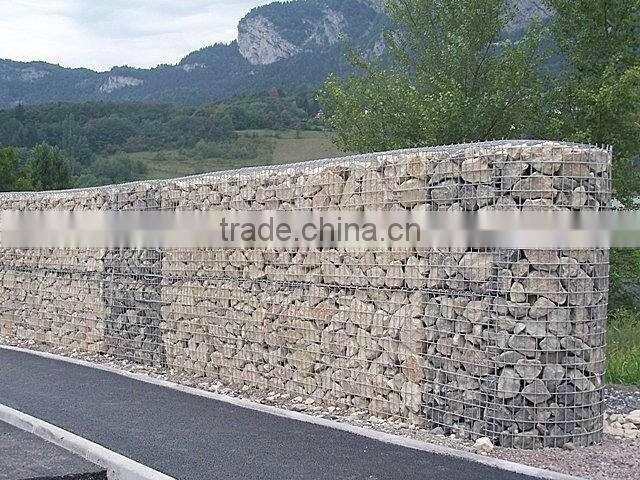

hot dip galvanized gabion stone mattress for sale

Specifications

hot dip galvanized gabion stone mattress
wire dia:3.0mm
mesh size:80*100
cage size: 2*1*1
ISO9001

Galvanized gabion stone mattress can be divided into Electro galvanized gabion box and Hot-dipped galvanized gabion box.

The gabion box is divided into cells by means of diaphragms positioned at approximately 1m centers.

Wire: 2.0-4.0mm

Mesh: 60×80mm, 80×100mm, 100×120mm, 100×150mm, 120×150mm

PVC coating thickness: 0.4-1.2mm

Hot dip galvanized can reach 300g/m2

Gaboins size: 1×1×1m,1.5×1×1m,2×1×1m,3×1×1m,4×1×1m, etc



 1. Standard Gabion Size



Standard Gabion Size
Length(m)	Width(m)	Height(m)	Cells
1.0	1.0	1.0	1
1.5	1.0	1.0	1
2.0	0.5	0.5	2
2.0	1.0	0.5	2
2.0	1.0	1.0	2
3.0	1.0	0.5	3
3.0	1.0	1.0	3
4.0	1.0	1.0	4
4.0	1.0	1.0	4
Custom sizes are also available



2. pvc coated gabion

	Gabion box
opening (mm)	Wire diameter(metal wire)   (mm)	Wire diameter(PVC Coated) Inner/Outside(mm)	Strands
60*80	f2.0-2.8	f2.0/3.0-2.5/3.5	3
80*100	f2.0-3.2	f2.0/3.0-2.8/3.8	3
80*120	f2.0-3.2	f2.0/3.0-2.8/3.8	3
100*120	f2.0-3.4	f2.0/3.0-2.8/3.8	3
100*150	f2.0-3.4	f2.0/3.0-2.8/3.8	3
120*150	f2.0-4.0	f2.0/3.0-3.0/4.0	3
