Help CenterGalvanized Gabion Box;gabions ,gabion Boxes,hexagonal Wire Mesh
Related Products
Specifications

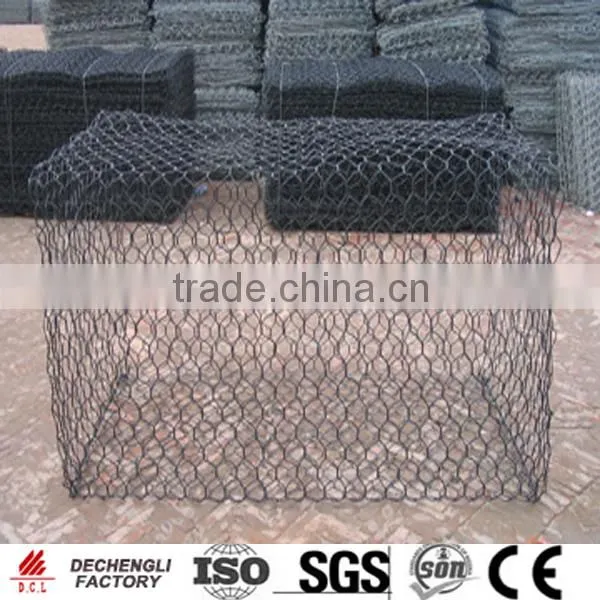

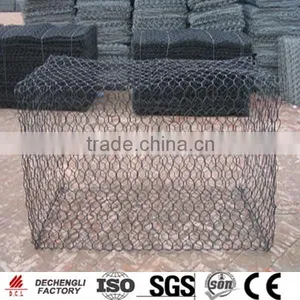

Hexagonal wire mesh as known as chicken netting, 6 corners nettingMaterial: galvanized wire, PVC coated wire, stainless steel
Gabion mesh

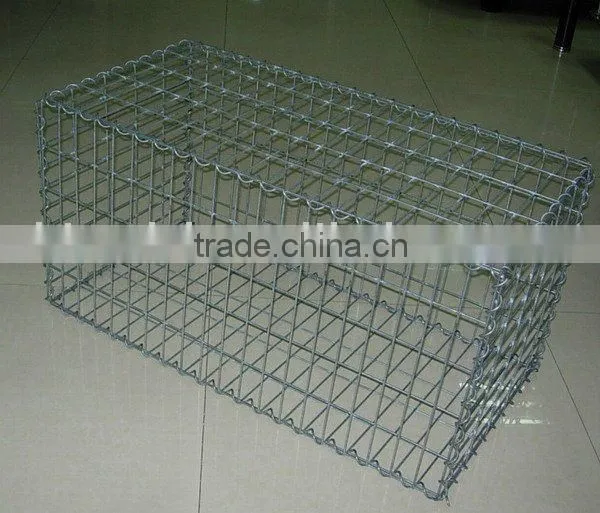

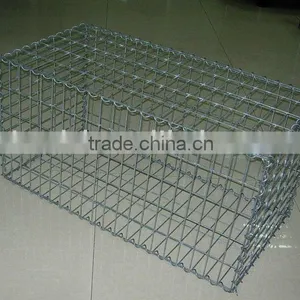

Welded gabion box

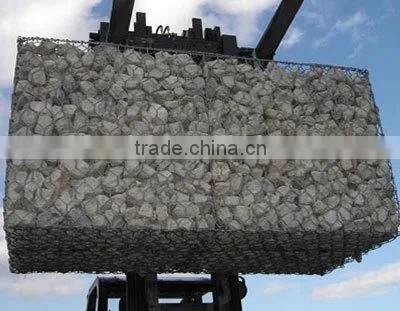

Gabions are wire mesh baskets formed by connecting individual panels of mesh with helical spirals on the vertical edge wires creating an open series of box compartments that fold in a concertina fashion to be flat packed. Lids and bases are sometimes supplied loose with helical spiral binders to connect the top and bottom of the open cells along one edge. Alternatively they may be factory fitted where practical for transportation purposes.
|
Length (m) |
Width (m) |
Height (m) |
Wire diameter (mm) EN/BS1052 |
Mesh aperture (mm) |
diaphragm |
||
Mesh wire |
Selvedge wire |
helical spiral |
|||||
1.0 |
1.0 |
0.5 or1.0 |
2.7-4.5
|
Thicker 1mm than mesh wire |
4mm |
50*100, 100*100, 50*70, 76*76 |
no |
1.5 |
1.0 |
0.5 or1.0 |
no |
||||
2.0 |
1.0 |
0.5 or1.0 |
1 |
||||
3.0 |
1.0 |
0.5 or1.0 |
2 |
||||
4.0 |
1.0 |
0.5 or1.0 |
3 |
||||
5.0 |
1.0 |
0.5 or1.0 |
4 |
||||
Characteristics :

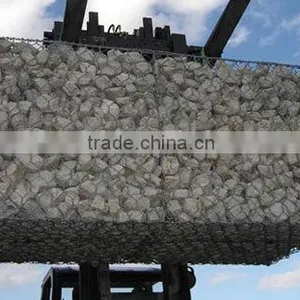

1. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. Sludge in the stones is good for plant growing.Mixed to form a integrity with the natural environment.
5. Good permeation can prevent the damage by hydrostatic.

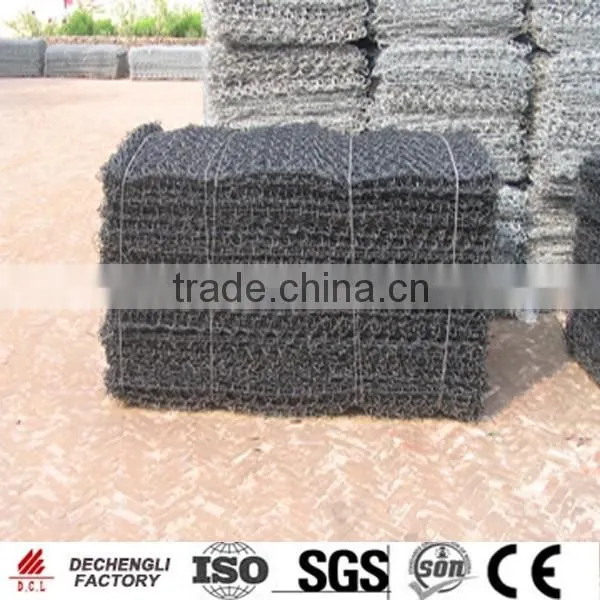

6. Less transport freight. It can be folded together for transport and further installation.
7. No collapse even under big scope of deforming.

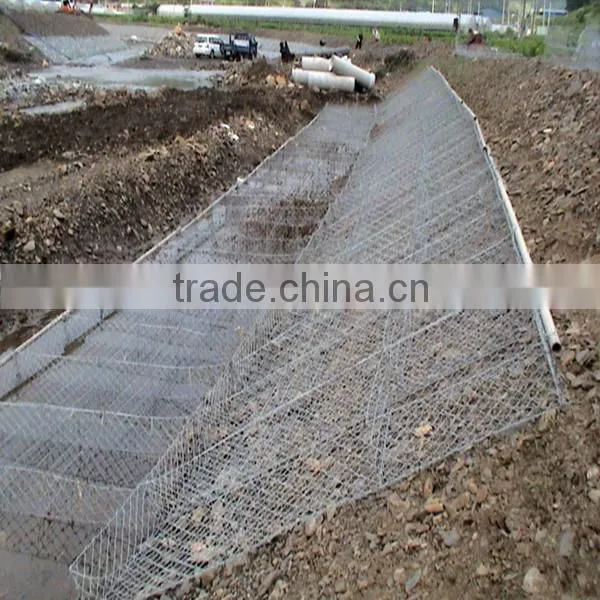

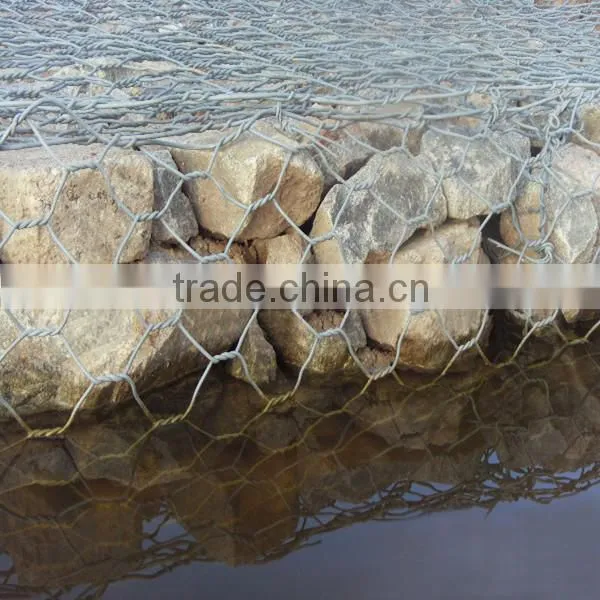

Application
1. Control and guide of water or flood
2. Preventing of rock breaking
3. Rock fall protection
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.
8. Port project
9. Keep off dust wall
10.Roadway protection.
Characteristic: Firm structure, flat surface, corrosion-risisting and oxidation-resisting.
Usage: Hexagonal wire mesh is used for breeding chicken, duck, goose, rabbit and also used as fencing in zoo, machinery equipment's protection, speedway's fencing, stadium to purse net, the evanescence belt protection mesh on the road. If we use the hexagonal wire mesh to make container whose shape is like a box, then fill the container with riprap, it could be used for protecting and holding out the sea wall, hillside, bridge and other related civil engineering, it is the superior material for flood control and fighting a flood
