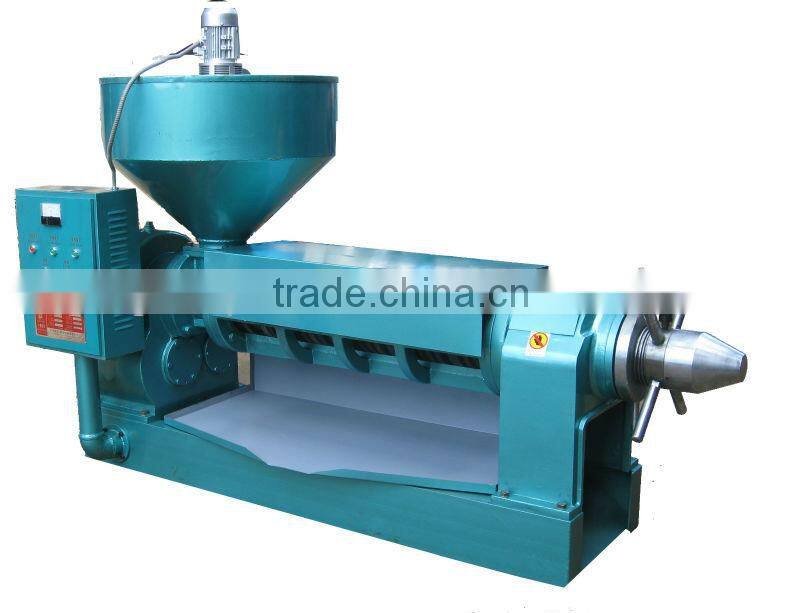

High efficiency!!! 20ton per day Vegetable oil expellers
- 400 Set / Sets per Month
- Shanghai Guangzhou other China Port
- T/T Credit Card
-
used for stone pe-250x400 quartz small jaw crushers
-
low comsuption mini rock diesel engine jaw crusher
-
china manufacturer provide used jaw crusher price
-
high efficiency pe 400 x 600 old mini jaw crusher for sale
-
manufacturer provide toggle platepe 150x250 jaw crusher machine
-
pe 400x600 mobile jaw crusher price with spare parts
Product Details
| Condition: | New | Usage: | Peanut Oil | Type: | Other, Cold & Hot Pressing Machine |
| Automatic Grade: | Automatic | Production Capacity: | 830kgs/hour | Place of Origin: | Sichuan, China |
| Brand Name: | Guangxin | Model Number: | YZYX168 | Voltage: | 380V |
| Power(W): | 37-45KW | Dimension(L*W*H): | 2670*1000*1726mm | Weight: | 1500kgs |
| Certification: | ISO9001, BV, SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

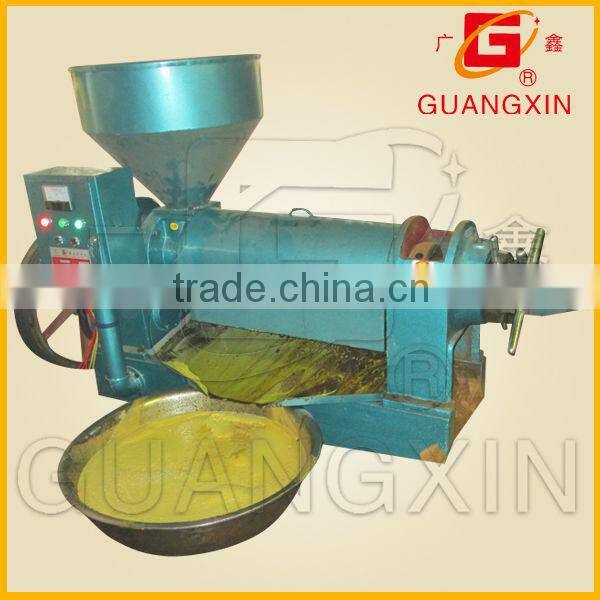

YZYX168 produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
YZYX168 has strong squeeze power. The pressure in its chest is powerful. Users can obtain very good squeezing result when operate properly.
The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.
Technical specification
ITEMS | YZYX168 |
Revolving speed of spiral axis (r/min) | 38 |
Power required(KW) | 30,6pole |
Measurement (mm) | 2670×1008×1726(including feeder) 2670×1008×1522 (excluding feeder) |
Weight (kg) | 1710(including feeder), 1631 (excluding feeder) |

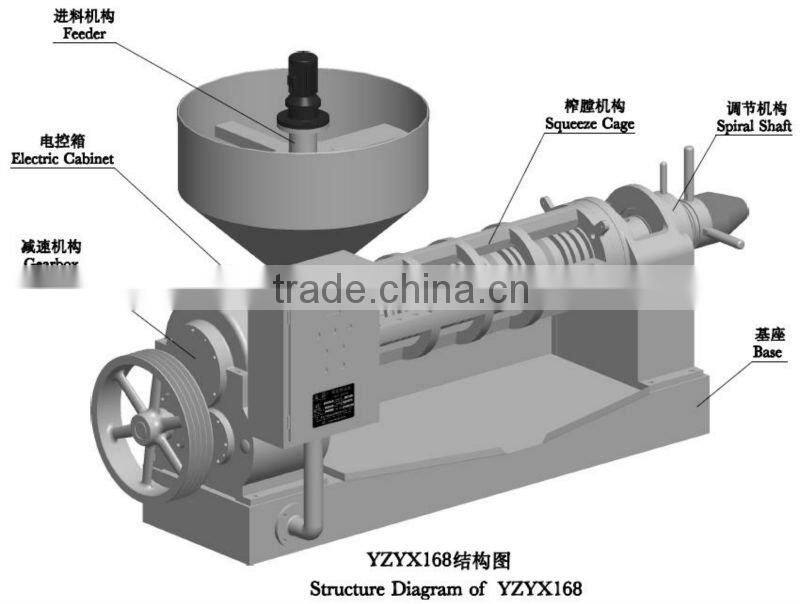

Characteristics of YZYX168
1. Healthy!Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
Seeds or nuts suits for pressing.
High efficiency 20ton per day refinery use big Sweet Almond oil press
High efficiency 20ton per day refinery use big Sweet Almond oil press
Company Profile
Located in the southwest of China, we're in this line in 1980s, and renamed as Mianyang Guangxin Machinery Of Grain&Oil Processing Co., Ltd. in 2008. With more than 30 years history, we grow to one of the largest manufactures of oil extraction, oil filter and seeds roaster, our products have been exported to more than 60 countries, we own good reputation within our domestic&oversea clients.

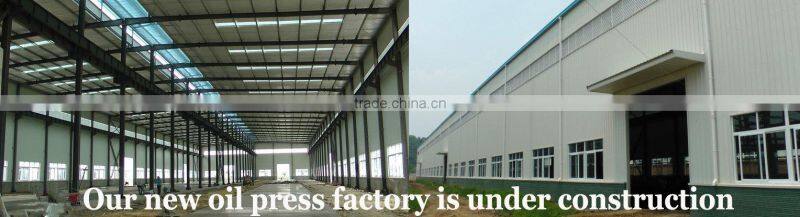

New factory show:
Spare parts:
1. Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.
4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
*Warranty period: 1 year except wearing parts.
*We offer spare parts all the year round.
*We offer best products solution from professional engineers with more than 30 years experience.
*24 hours online customer service, welcome contact with us freely.
