DEM/ODM 1037u industrial motherboard Using Intel NM70 High-speed Chipset, max to 16G
Specifications:
CPU |
Intel ® Celeron 847/1007/1037 dual-core processor (1.1 G / 1.5 G / 1.8 GHZ) TDP 17 w power consumption
|
Chipset |
Using Intel ® NM70 High-speed Chipset
|
Memory |
1*dual channel SO DDR3 1333/1066MHz,Max to 16GB |
Power |
12v DC or ATX 20 pin |
|
Storage
|
Up to 3*SATAⅡ hard disk interface, transmission speed can reach 3 GBPS
|
|
Network
|
2 * RTL8111E gigabit nics or 2 * RTL8111E gigabit nics, support network awaken, PXE function
|
|
Sound
|
Integrated Realtek ALC662 6 channel high-fidelity audio controller
|
|
Display
|
Integrated Intel ® HD Graphics core Graphics Support LVDS,HDMI and 2*VGA output ,Support independent double display LVDS support 24bitVGA1 and currently under XP system does not support VGA2 of synchronous/asynchronous
|
|
Expansion Bus Interface
|
1 * Mini PCIE slot ,support 3G/Wifi 1* MSATA slot , SSD transmission speeds of up to 600 MB/s |
BIOS |
32MB SMT Flash ROM |

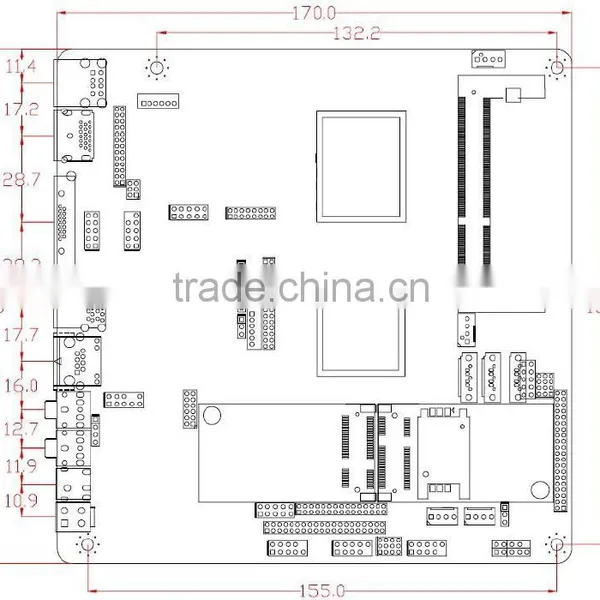

Size |
170mm * 170mm |
|

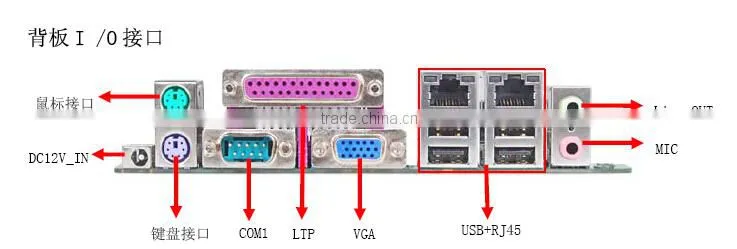

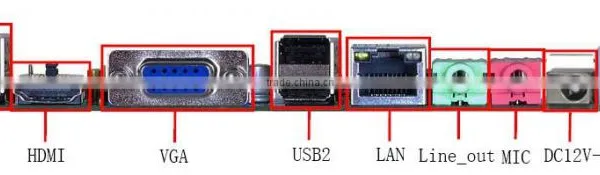

Backplane Interface
|
1 * 12 v DC_JACK input 1 * PS / 2 keyboard mouse connector 4 * USB2.0 interface 2 * RJ - 45 network interface or 1 * RJ - 45 network interface 1 * double standard audio interface (support MIC and Line out) 1 * LPT interface 1 * VGA1 interface 1 * RS232 serial port (9 pin support 5 v / 12 v electric function)
|
VWM- M100_I3 |
l Ultra-thin I3 3217 u processor, HD video card, DDR3 memory, 1 * gigabit nics, double eight l LVDS,1*MSATA,1*MINIPCIE,6*COM |
VWM- M100-I5 |
l Ultra-thin I5 3337 u processor, HD video card, DDR3 memory, 1 * gigabit nics, double eight l LVDS,1*MSATA,1*MINIPCIE,6*COMVWM-M100-I7 |
VWM-M100-I7 |
l Ultra-thin I7 3537 u processor, HD video card, DDR3 memory, 1 * gigabit nics, double eight l LVDS,1*MSATA,1*MINIPCIE,6*COM |
GUANGZHOU VINWO ELECTRONIC CO., LTD was established in 2008 , located in Tianhe area Guangzhou, our factory covers an area over 2300 square meters.
We specialized in produce,sales and provide good techniques support for Digital Signage Kiosk for Industrail Mini - Itx Motherboard , Information Kiosk, LCD video wall, LCD Television, Electronic Whiteboard for Education, Multimedia exhibition planning and Film production planning.
Q:How many years warranty?
A:Generally speaking, we wil guarantee freey 1 year.
Q:What's your mode of transportation?
A: In general , we will make shippment by DHL, FedEx, EMS,etc,and also according to your request.
Q:What‘ your
