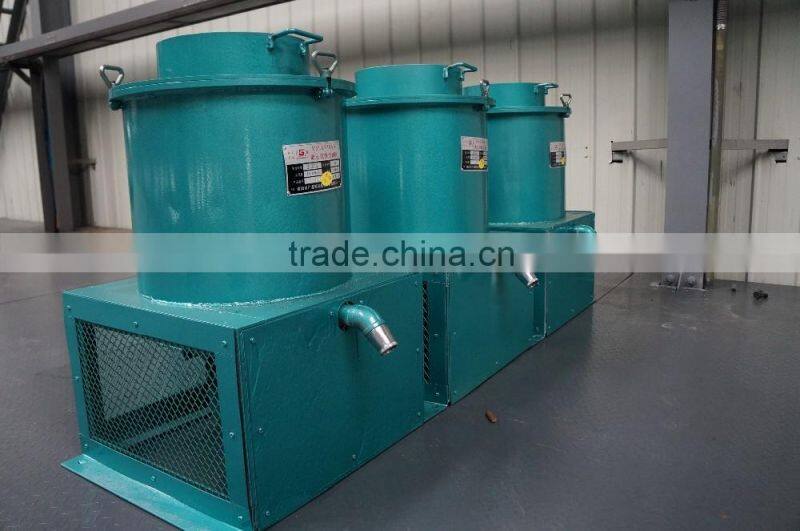

YSLC430 China Advanced Centrifugal Cooking Oil Separator

Name: YSLC430 China Advanced Centrifugal Cooking Oil Separator
Brand: Guangxin
Availability: InStock

FOB Price

US$ 500 - 1,000 / Piece

1 Piece(Min. Order)

Port Shanghai Guangzhou Qingdao or other China port
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, centrifugal oil filter
Structure	Other, Centrifugal	Place of Origin	Sichuan, China
Brand Name	Guangxin	Model Number	YSLC430
Power(W)	4kw	Weight	160 kg
Dimension(LWH)	580520930mm	Certification	ISO, BV,SGS
Warranty	12 Months	After-sales Service Provided	No overseas service provided

Product Description

1. Product description:

The new product Centrifugal subside oil residue separator YSLC430 is developed by our company to satisfy customer’s demand. It can work match with our spiral oil press such as YZYX95, YZYX10, YZYX120 series and so on. And is suitable for filtering kinds of crude plant oil to meet oil residue separating automaticly. This machine we have designed brake device. It has following advantages compare to traditional plate frame filter:

Has better effect of oil residue separating.
Easy operation and high efficiency.
No filter cloth, avoiding washing filter cloth.
No need to clean the oil residue every time after filtering.
The oil looks clean and bright after filtering, will not full fill with the tank.

2. Specifications:


Product Name	Centrifugal subside oil residue separator
Model	YSLC430
Processing capacity (Kg/h)	100
Diameter of rotor drum (mm)	430
The revolving speed of rotor drum (r/min)	1460
Power (kw)	4

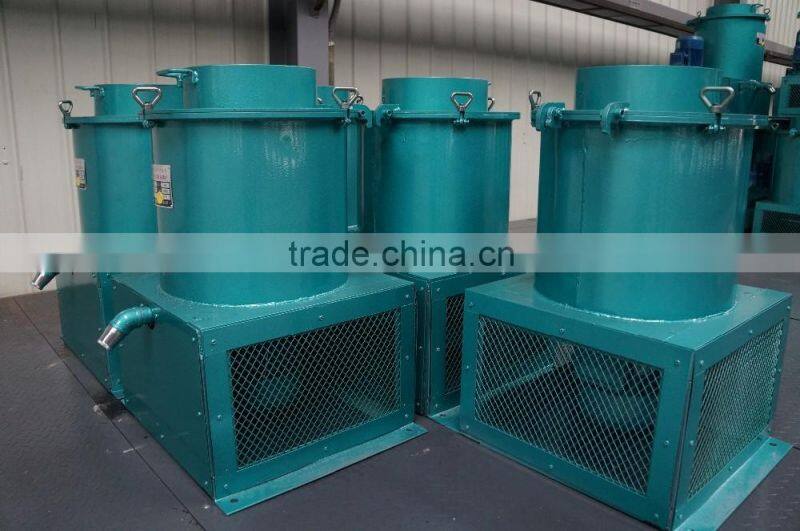

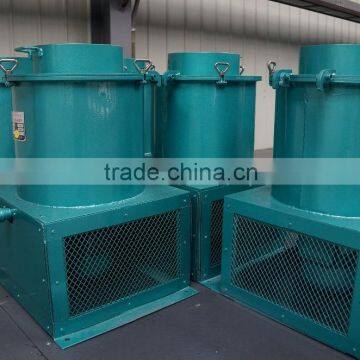

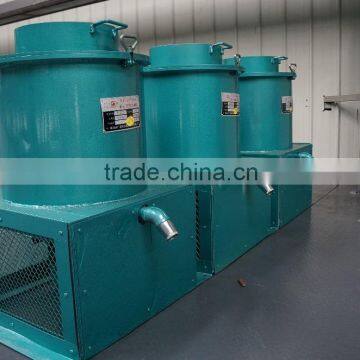

3. Details:

4. Usage:

I. Water degummed: put the crude oil in a container, add 1%~1.5% proportion cold salty water, proportion of which is 10% when temperature is 60~80 degree °c, and stir them 1~2 minutes to totally mix till there is few bubble on oil surface.

II. Turn on Centrifugal oil purifier: make sure it's rotating, and pour the water degummed oil into the tank, turn it off after 2~5 minutes.

III. Get clean oil: put a container under the oil tap, when the machine stops rotating, clean oil would come out automatically.

5. Application:

6. Quality Standard:

Conform to JB/T9793·1-1999 of The People's Republic of China & ISO9001:2008.

There are 2 types for choosing:


Product Name	Centrifugal subside oil residue separator
Model	YSLC430A	YSLC500A
Processing capacity (Kg/h)	80-120	120-180
Diameter of rotor drum (mm)	430	500
The revolving speed ofrotor drum (r/min)	1460	900
Power (kw)	4	4
Measurement(L×W×H)	580520930	840658900
Weight (Kg)	160	217
