Help CenterGlass Lined Piping and Fitting
Related Products
Specifications
Advance And Mature Reaction And Heat Exchanger Technology1-Agitation efficient 2- Ready-to Use 3-Durability 4-functionality
Technical Data:

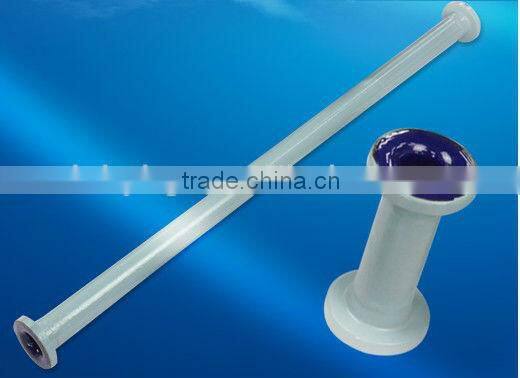

| DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| L | 100-150-200-250-300-400-500-600-700-800-900-1000-1100- 1200-1300-1400-1500-1600-1700-1800-1900-2000-2500-3000 |
||||||||||
siphonium
| DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| L | 60 | 65 | 70 | 80 | 85 | 95 | 105 | 125 | 150 | 180 | 220 |

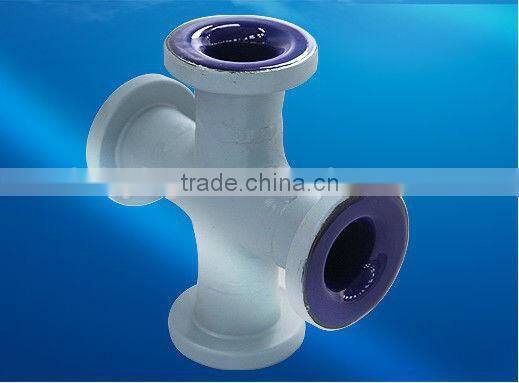

cross pipe
| DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
| L | 180 | 200 | 210 | 230 | 240 | 270 | 310 | 350 | 390 | 520 | 630 |
| L1 | 90 | 100 | 105 | 115 | 120 | 135 | 155 | 175 | 195 | 260 | 630 |
We, FHPEE Engineered Products Co.,Limited a Chinese professional manufacture since 1998 years and ISO9001-2000 approval for 8 years of Glass-Lined and 304, 316L stainless steel chemical reactors and customer designed fabricated Chemical reactors, Storage Tanks, Blenders, Condensers and all its accessories, pipes, fittings and sections. All the Reactors are available with all Standards Testing Facility. Which jacketed, agitated, limpet coil, complete with gear box explosion proof motor and glass lined or stainless steel heat exchanger and complicated process system, those can operate under pressure or vacuum.
Contact us for asking catalogue if you’re interesting our glass lined/stainless steel reactor/vessel.
Glass Lined Reactor |
Glass Lined Jacketed Reactor |
Glass Lined Electric Heating Reactor |
Glass Lined Storage Vessel |
Glass Lined Tank |
Glass Lined Heat Exchanger |
Glass Lined Condenser |
Glass Lined Agitation Vacuum Filter |
Glass Lined Agitated Nutsche Filter |
Glass Lined Agitator |
Glass Lined Thermowell |
Glass lined Accessories |
Mechanical Sealing |
stainless steel SS304 316L Reactor |
Glass Lined Electric Heating Reactor |
stainless steel SS304 316L Jacketed Reactor |
stainless steel SS304 316L Storage Vessel |
stainless steel SS304 316L Tank |
Advance And Mature Reaction And Heat Exchanger Technology
1.Agitation efficient 2.Ready-to Use 3.Durability 4.functionality
5.50- 60000 liter 6. Economic efficient 7. Easy install and require minimal maintenance
Please contact for more technical data and dimensions as well as our products catalogue for your reference.
The Glass Lined Equipment manufactured by our workshop is all:
1) Resistant to corrosion for acids and alkalis temperature up to 180 C degree often higher depends on
2) Withstanding mechanical stress
3) Withstanding thermal shock
4) Resistant to adhesion
5) Favorable price, high quality and excellent after-sales service
6) Jacketed or limpet coil straight side for product heating and cooling
7) Complete with a sight glass
8) Easy and fast to clean internal surface
9) Glass lining with steel outside for structural strength is an inert material. There is no contamination of product purity. Color and taste are not affected. Sticky materials such as latex and resins do not readily cling to the fire-polished smooth surface.
10) Our tanks and receivers provide the many advantages of glass with the durability and strength of steel.
The glass lining surface eliminates contamination to increase product purity and allows an easy, fast and thorough cleaning. With steel outside for structural strength. FHPEE can provide custom designs if these standard sizes do not meet your specific process conditions.
The technical details descriptions of our Glass lined Equipment Performance:
- Max. Design Pressure:10 Mpa
- Max. Design Temperature: -20 C degree To 350 C degree
- Elliptical, dished, flat or conical head
- Domestic/industrial uses
- Material: austenitic stainless steel, 304, 321, 316l. / cladding
- plate of austenitic stainless steel
- Max. Volume: 100M3
- agitator speed at 0-600 rpm
- Custom designs available
- Heated with inside-coil, outside-coil, jacket or U-tube
- The Glass-lining Thickness: 1.0-2.8 mm
- Final Hydrostatic Test: 1.6 Mpa
- The High Voltage- sparking test to Glass-lining: 20KV
- Radiography Shell / Head: welding Spot / Full
- Penetrate testing Shell / Head: welding Spot / Full
- Magnetic particle testing Shell / Head: welding Spot / Full
- Ultrasonic inspection Shell / Head: welding Spot / Full
- Joint Efficiency: 0.85 / 1.0
- Corrosion Allowance 1.0
- Water, steam or oil heating
- Mechanical sealing
- Explosion proof motor with Cycloid reducer or Explosion proof motor with gear box system
- Flameproof motor with gear box
- Impeller/anchor/paddle and customized glass lined/stainless steel agitator
We also have Glass lined Chemical Reactors, Storage Tanks, Distillers, Heat Exchangers, Pipes and Fittings etc.
According Specific Requirement/Order, OEM service
Loading port: Dalian port, China
Packing: Ocean transfer suitable strong steel frame plus clad plates
Delivery timeline: 20-60 days to dispatch
Equipment Approvable by: FAT- Chinese government Special equipment inspection institute
Please contact for more technical data and dimensions as well as our products catalogue for your reference.
We’re remaining at your disposal for any additional quest.
Sincerely yours,
Leo.Lee
Technical Sales Director
FHPEE Engineered Products Co., Limited
