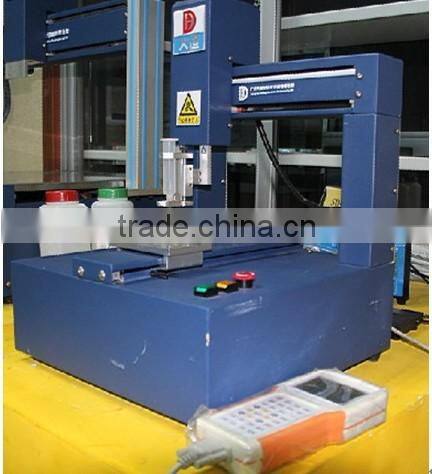

High Speed Desktop Glue Dispenser (SZD-200)

FOB Price

US$ 1 - 2 / Set

1 Set(Min. Order)

Port Guangzhou Shenzhen
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	Daheng	Model Number	QPD-300
Voltage	220V	Weight	40KG
Dimension(LWH)	20020050mm	Certification	CE, SGS
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Desktop Glue Dispenser with good value
Wide universality
1 year free warranty
Engineer can send oversea service

Desktop Glue Dispenser (SZY-200)
1. Features

1) Easy operation

Touch screen, English interface, store data, alarm system.

2) High accuracy of glue control:

All key parts imported, with unique control system, no affected by air pressure, avoiding uneven gluing, glue drawing, deckle edge, etc.

3)Quick program editing

In the gluing control system, we can store 99 programs according to different models of the products which have different dispensing track. It's very easy to select one of the programs when dispensing.

4) Simple adjustment for syringes:

Syringes can be adjusted in directions of up and down, left and right at a certain range, without change for the dispensing track.

5) Great generality, high speed:

1, 2, 4 needles dispensing head are available to improve the speed, widely used in various fluid, industry, and graphics (dot, line, curve, arc and round etc.)

2. Industrial Application
SMD, bulb lamp, COB binding, hand touch, TOP, dot matrix modules, circuit board, relay, cell phone and some other electric product with glue.

Desktop Glue Dispenser

Model & Type:SZD-200 Desktop Glue Dispenser
Certificate	CE, SGS
Dimension	L610 X W500 X H600mm
N.W.	40kg
XYZ Working Area	200x200x50mm
Flow Speed	0-66g/5s, or customized
Moving Speed	0-300mm per second
Glue & Ratio	1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability	+/-0.02g
Accuracy	+/- 1%
Power	AC220V or AC 380V

Desktop Glue Dispenser

Desktop Glue Dispenser- workshop and production line

Desktop Glue Dispenser- Fair and workshop
