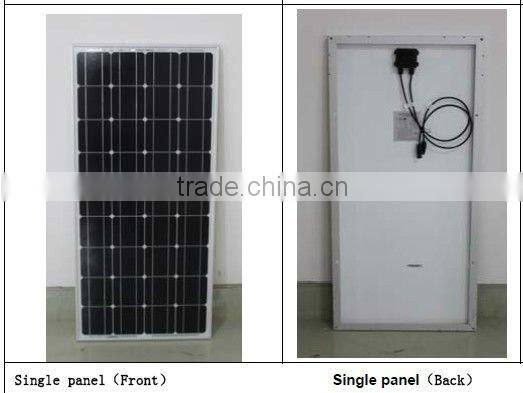

95W Mono Solar Panel Price

Name: 95W Mono Solar Panel Price
Brand: OSDA
SKU: 132584657
Availability: InStock

US$ 0.62 - 0.66 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OSDA

Model Number:

ODA95-18-M

Ningbo Osda Solar Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OSDA

Model Number ODA95-18-M

Material Monocrystalline Silicon

Size 1196x554x35mm

Number of Cells 36pcs(4x9)

Max. Power 95W

Specifications

import solar panels
OSDA dedicate to provide best quality product to our clients with competitive price and excellent service.

import solar panels import solar panels import solar panels

Specifications

Model Type	ODA105-18-M	ODA100-18-M	ODA95-18-M	ODA90-18-M
PeakPower(Pmax)	105	100	95	90
Maximum Power Voltage(Vmp)	18.72	18.64	18.57	18.5
Maximum Power Current(Imp)	5.61	5.36	5.12	4.86
Open Circuit Voltage(Voc)	22.83	22.73	22.65	22.56
Short Circuit Current(Isc)	6.16	5.9	5.62	5.35
Module Efficiency (%)	15.8	15.1	14.3	13.6
Maximum System Voltage (V)	1000
Maximum Series Fuse Rating (A)	10
Power Tolerance	0~+3%
Pmax Temperature Coefficients (W/°C)	-0.435%
Voc Temperature Coefficients (V/°C)	-0.35%
Isc Temperature Coefficients (A/°C)	0.043%
NOCT Nominal Operating Cell Temperature (°C)	47±2
Operating and Storage Temperature (°C)	-40~+85
Standard Test Condition (STC)	1,000W/m²;AM 1.5;25°C

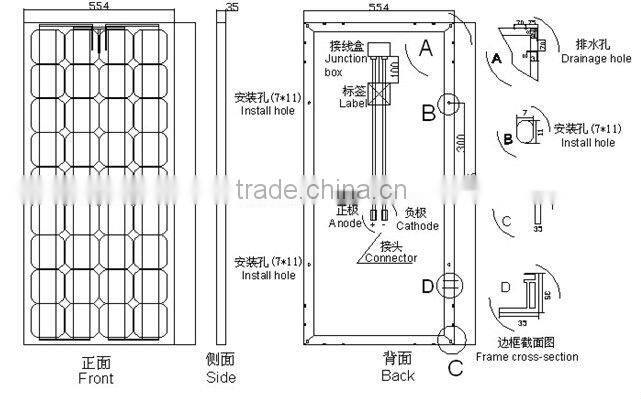

Mechanical characteristics & Packaging

Cell Type	Mono-crystalline 125x125mm
No. of Cells	36(4x9)
Dimensions	554x1196x35mm
Weight	8.0kgs
Front Glass	3.2mm high transmission,low iron,tempered glass
Frame	Anodized Aluminium Alloy
Junction box	IP65 Rated
Output cables	TUV 1X4mm²,length 90cm
Quantity/pallet	50pcs/pallet
Loading Quantity	550pcs / 20ft
