Home > Instruments & Meters > Optical Lens & Instrument > Microscope > Easy Operation DBMDA1300M-2B 1.3MP USB Digital Biological Microscope

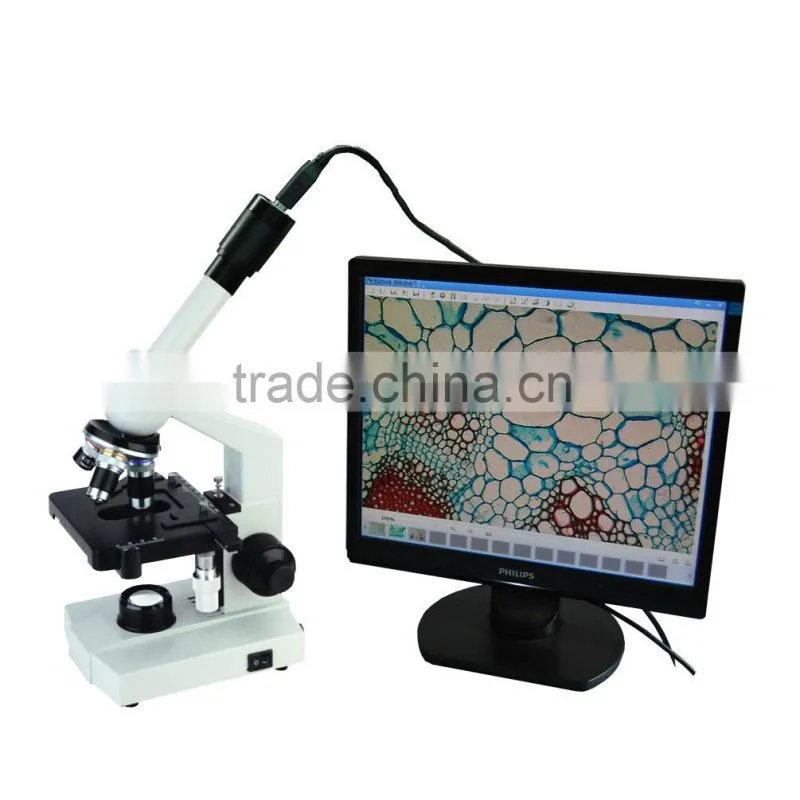

Easy Operation DBMDA1300M-2B 1.3MP USB Digital Biological Microscope

Name: Easy Operation DBMDA1300M-2B 1.3MP USB Digital Biological Microscope
Brand: Future Optics
SKU: 132584501
Availability: InStock

Easy Operation DBMDA1300M-2B 1.3MP USB Digital Biological Microscope thumbnail-1

Easy Operation DBMDA1300M-2B 1.3MP USB Digital Biological Microscope photo-1

Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Future Optics

Model Number:

DBMDA1300M-2B

Contact Supplier Request Quote Chat Now

Hangzhou Future Optics Sci & Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hangzhou Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Future Optics

Model Number DBMDA1300M-2B

Theory Video Microscope

♦Applications:

By connecting with PC, you can view images or movies of cell slide on screen and to save under the control of software. No squinting with one eye, just be enjoyable and to share with others. It’s an affordable imaging solution for microscopy in education and hobby.

♦Functions:

1. To capture images for living show, for shoot and for video recording;

2. To improve image quality by adjusting the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting.

♦Benefits:

1. Easy installation, convenient operation;

2. Wide field and bright image.

3. Compatibilitywith Win/MAC

Certification:

CE issued by SGS laboratory Verification No. SHEMO0808001971T01C

FC issued by SGS laboratory Verification No.SHEMO081100389IT01C

ROHS issued by POCE laboratory, Verification No.POCE13072325TCR

ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M

♦Configuration:

Digital eyepiece	1.3 MP USB compact digital camera
Optical eyepiece	WF10X-18mm
Viewing head	Binocular head of articulated type, interpupillary distance 55-75mm
Nosepiece	Quadruple nosepiece with positive click stopper
Achromatic objective (DIN45mm)	DIN achromatic objective: 4X / NA0.10, 10X / NA0.25, 40X R/ NA0.65, 100X R(oil)/ NA1.25.
Stage	Built-in mechanical stage 142mmX132mm with specimen holder, controlled by coaxial knobs at low position.
Condenser	N.A. 1.25 Abbe condenser with Iris diaphragm
Illumination	Halogen bulb 6V / 20W AC85-230V

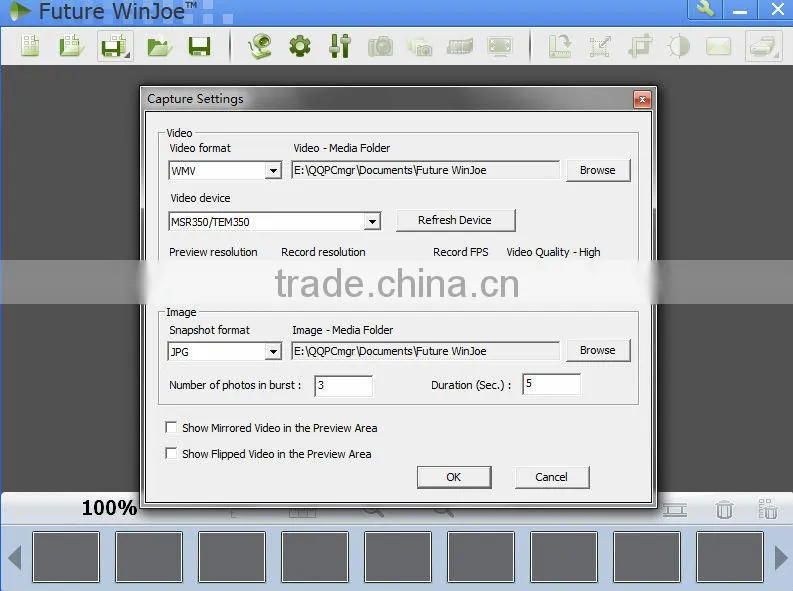

CD of software	Future Win Joe imaging software
Packing	Carton size: 36.5mm X 25.3mm X 46.8mm

♦Main specifications:

Total magnification (optical eyepiece loaded )	40X, 100X, 400X, 1000X
Equivalent magnification of digital eyepiece	49X (17” LCD screen display pixel size: 0.2625mm )
Total magnification (digital eyepiece loaded )	196X, 490X, 2040X, 4900X
Picture resolution	1280*1024
Image resolution	1280*1024
Video resolution	1280*1024
Frame rate	17fps@1280*1024
Active resolution of sensor	1280*1024
Sensitivity	1.0V/lux-sec
Dynamic rage	71dB

Trade information

Trade terms

Payment:

100% prepaid for first order

For quantity order: T/T to our company account

For sample order or trial order: T/T to our company account, Western Union, Escrow

Delivery time and shipping:

Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.

Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.

OEM orders need an extra customization time. Generally customization will take 10 days.

Warranty:

We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.

Customization:

We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information

Free sample for clients to place repeat orders:

We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.

Pre-sales service

As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.

1. Provide basic knowledge to help our clients understand working principle of our products;

2. Provide key factors and skill to our clients when they choose our products;

3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;

4. Provide product design drawing and package drawing to help clients work out customization pattern.
