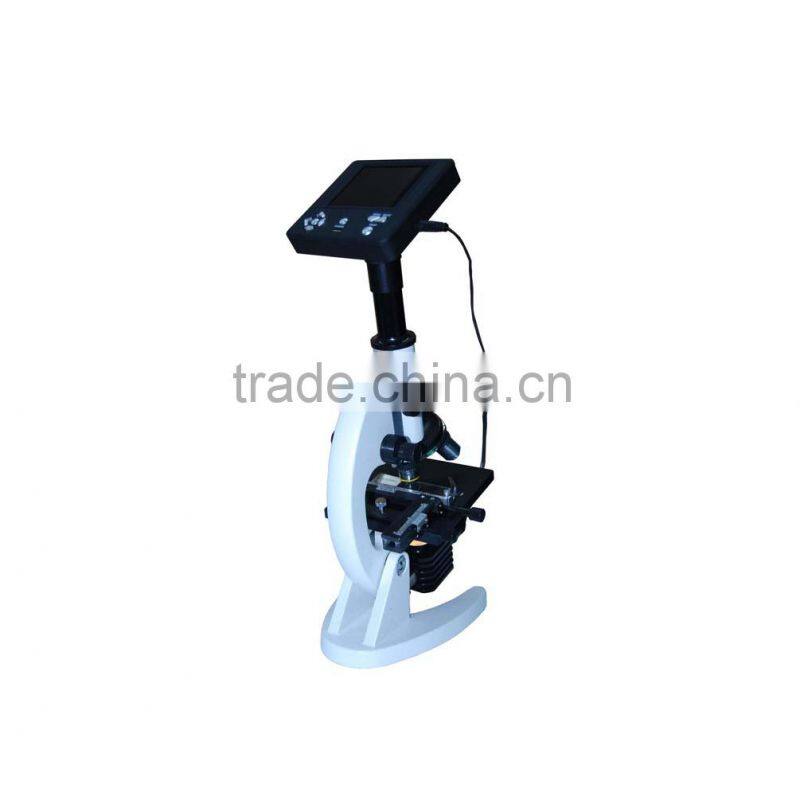

DBMDC2000-44 Digital Microscope With Lcd Screen

DBMDC2000-44 Digital Microscope With Lcd Screen photo-1
Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Future Optics
Model Number:
DBMDC2000-44
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Hangzhou Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Future Optics
Model Number DBMDC2000-44
Theory Video Microscope

Applications:

To view images or movies of cell slide on LCD screen and to save in SD card. No squinting with one eye, just be enjoyable and to share with others. It’s an affordable imaging solution for microscopy in education and hobby.

DBMDC2000-44 digital microscope with lcd screen



Functions:

1. To capture images for living show, for shoot and for video recording;

2. To improve image quality by adjusting the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting;



Benefits:

1. View images or video on LCD screen without connecting a PC;

2. Capture and save images or video in SD card;

3.Control menu keyboard allows you to adjust the gain, resolution, WB, contrast.



♦Quality control:

CE issued by SGS laboratory Verification No. SHEMO0808001971T01C

FC issued by SGS laboratory Verification No.SHEMO081100389IT01C

ROHS issued by POCE laboratory, Verification No.POCE13072325TCR

Copyright software of Future Win Joe V1.0  Registration Code:2009SR035346

ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M



Main specifications:

Digital eyepiece

2.0 MP USB compact digital camera

Active resolution of sensor

1600*1200

Sensitivity

1.0V/lux-sec

Dynamic rage

60 dB

Frame rate

10fps@1600*1200

Total magnification (optical eyepiece loaded )

50X ~ 1250X,

Picture resolution

12.0MP/8.0MP/5.0MP/3.0MP/2.0MP/1.3MP/0.35MP

Video resolution

640*480

Optical eyepiece

5X, 10X, 12.5X

Viewing head

Monocular vertical tube

Nosepiece

Triple nosepiece with positive click stopper

Objective lens

10X, 40X, 100Xs(oil)

Working stage

Stage 120mmX120mm with movable specimen holder, controlled by X-Y adjustment knobs.

Condenser

NA1.25 abbe condenser, iris disc diaphragm, filter

Illumination

Electrical illumination (110V/20W,220V/ 20W optional)

Coarse adjustment range

50mm

Fine adjustment range

1.8mm~2.2mm

CD of software

Future Win Joe imaging software

Optical eyepiece

5X, 10X, 12.5X

Packing

Carton size: 25cm X 22cm X 38.5cm
