♦Applications:

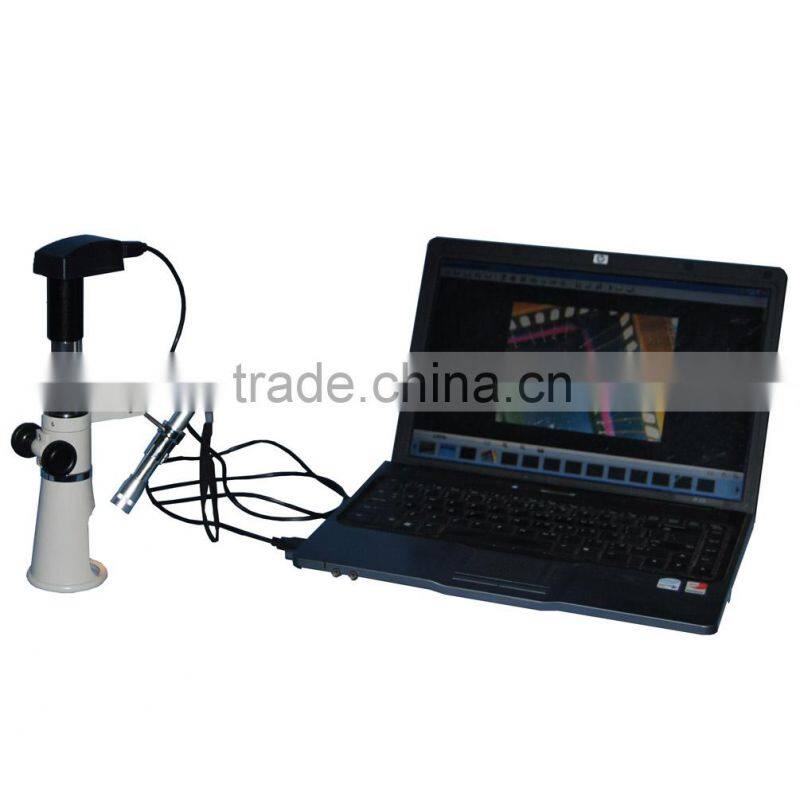

By connecting with PC, you can view images or movies of fine target on screen and to save under the control of software. No squinting with one eye, just be enjoyable and to share with others. It’s an affordable imaging solution for microscopy in industry, education and hobby.
♦Functions:
1. To capture images for living show, for shoot and for video recording;
2. To improve image quality by adjusting the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting;

♦Benefits:
1. Easy installation, convenient operation;
2. Wide field and bright image;
3. Compatibility with Win/MAC.
4. To be suitable for outdoor usage.
♦Quality control:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code:2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Main specifications:
Digital eyepiece | 0.35 MP USB compact digital camera |
Active resolution of sensor | 640*480 |
Sensitivity | 1.9V/lux-sec |
Dynamic rage | 60 dB |
Frame rate | 30fps@640*480 |
Total magnification (optical eyepiece loaded ) | 60X, |
Equivalent magnification of digital eyepiece | 42X (17” LCD screen display pixel size: 0.2625mm ) |
Total magnification (digital eyepiece loaded ) | 252X |
Optical eyepiece | 10X |
Viewing head | Monocular vertical tube |
Objective lens | 6X |
Working distance | 26.5mm |
Viewing field | 3.0mm |
Micro ruler | 0.1mm / 10 mm |
Illumination | Electrical illumination (3V / 0.25A lamp ) |
Focusing range | -22mm ~ +22mm |
Fine adjustment range | 1.8mm~2.2mm |

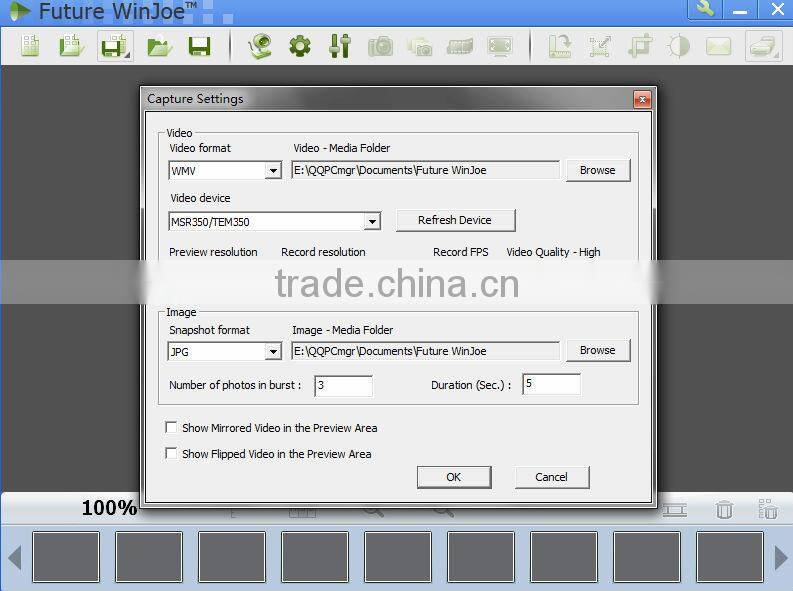

CD of software | Future Win Joe imaging software with movable reticle |
Packing | Carton size:25cm X 27.5cm X 42.5cm |
