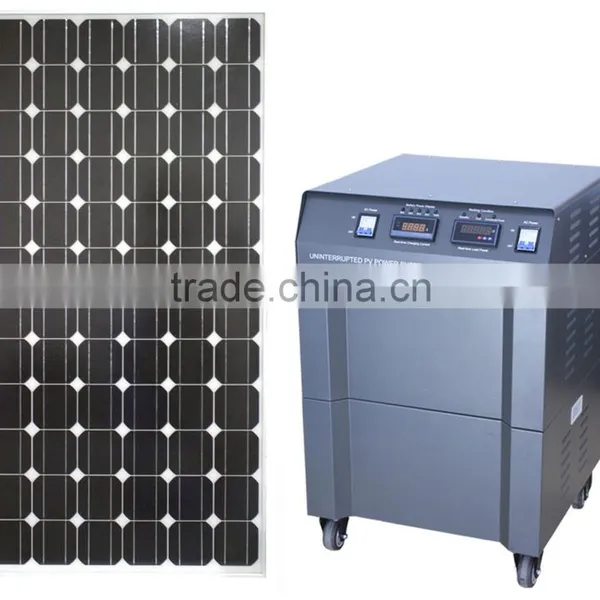

solar power system

Technical Data

Model

ODA1500Z

ODA3000Z

ODA5000Z

AC Output Power

1500W

3000W

5000W

Output Waveform

Pure Sine Wave

Precision of Output Voltage

220V±3% or 110V±3%

Precision of Output Frequency

50±3Hz or 60±3Hz

Power factor

0.99

Overload ability

120%, 30 seconds

Over Voltage Protection

>29V

>58V

>58V

Low Voltage Protection

<19V

<40V

<40V

Peak power efficiency

>92%

Switch time between solar and mains power

<20ms

Certificate

CE & RoHS

Operational Environment

Operating Temperature Range

-10~55

Relative Humidity

0~90%

Operating Altitude

0~4,000m

Configuration details

No.

What’s included

ODA1500Z

ODA3000Z

ODA5000Z

1

Mainframe box

1PC L630*W545*H165 (mm)/20.00kg

1PC L710*W690*H165 (mm)/21.00kg

2

Cell box

1PC

2PCS

3PCS

L630*W545*H280 (mm)/16.00kg

L730*W690*H280 (mm)/17.00kg

3

Wheel

4PCS (Dia. 3 inch---H110mm)

4PCS (Dia. 3 inch---H110mm)

4

Inverter

1500W

(24VDC→110-230VAC)

3000W

(48VDC→110-230VAC)

5000W

(48VDC→110-230VAC)

5

Controller

24V/40A

48V/40A

48V/60A

6

Poly Crystalline Solar Panel

1000W(250W*4PCS)

2000W(250W*8PCS)

3000W(250W*12PCS)

30.82V, 8.11A

30.82V, 8.11A

30.82V, 8.11A

L1640*W992*H40 (mm)/19.30kg

7

Lead Acid Battery

24V 200Ah

48V 200Ah

48V 300Ah

12V 100Ah*4PCS

12V 100Ah*8PCS

12V 100Ah*12PCS

L331*W173*H220(mm) Total H225mm/29.50kg

8

Automatic Switch

Shift the power source between solar energy and grid power.

9

AC output Sockets

4×110-230VAC

Mechanical Data

Dimension of System box (mm)

L630*W545*H555

L630*W545*H835

L730*W690*H1115

Packing Sizes(mm)

Power unit: 765*680*770

Solar Panel

Power unit: 765*680*1050

Solar Panel

Power unit: 830*800*1330

Solar Panel

G.W(kg)

192+100

335+180

484+260
