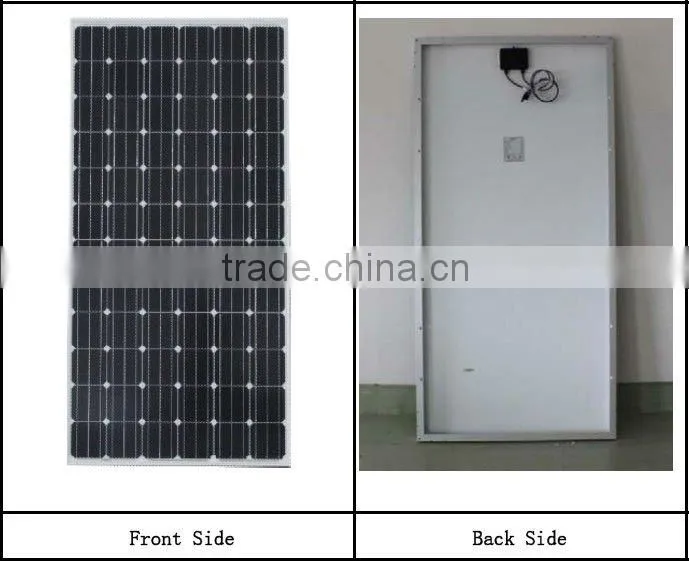

TUV MCS CEC Certificated 280W Mono Solar Panel

Name: TUV MCS CEC Certificated 280W Mono Solar Panel
Brand: OSDA
SKU: 132582561

US$ 0.62 - 0.66 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OSDA

Model Number:

ODA280-36-M

Ningbo Osda Solar Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OSDA

Model Number ODA280-36-M

Material Monocrystalline Silicon

Size 1956x992x50mm

Number of Cells 72pcs(6x12)

Max. Power 280W

Specifications

OSDA soar dedicate to provide best quality product to our customers with competitive price and excellent service.

Specifications

Product Description

Model Type	ODA300-36-M	ODA295-36-M	ODA290-36-M	ODA285-36-M	ODA280-36-M
PeakPower(Pmax)	300	295	290	285	280
Maximum Power Voltage(Vmp)	36.65	36.57	36.51	36.5	36.42
Maximum Power Current(Imp)	8.19	8.07	7.94	7.81	7.69
Open Circuit Voltage(Voc)	44.7	44.6	44.52	44.51	44.41
Short Circuit Current(Isc)	8.95	8.82	8.68	8.53	8.40
Module Efficiency (%)	15.5	15.2	15.0	14.7	14.4
Maximum System Voltage (V)	1000
Maximum Series Fuse Rating (A)	15
Power Tolerance	0~+3%
Pmax Temperature Coefficients (W/°C)	-0.435%
Voc Temperature Coefficients (V/°C)	-0.35%
Isc Temperature Coefficients (A/°C)	0.043%
NOCT Nominal Operating Cell Temperature (°C)	47±2
Operating and Storage Temperature (°C)	-40~+85
Test Condition (STC)	1,000W/m2;AM 1.5;25°C

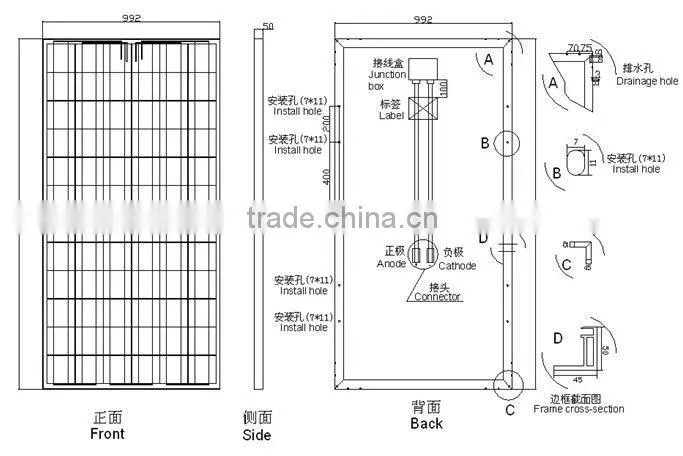

Mechanical characteristics & Packaging

Cell Type	Mono-crystalline 156x156mm
No. of Cells	72(6x12)
Dimensions	1956x992x50mm
Weight	23.0kgs
Front Glass	3.2mm high transmission,low iron,tempered glass
Frame	Anodized Aluminium Alloy
Junction box	IP65 Rated
Output cables	TUV 1X4mm²,length 90cm
Quantity/pallet	20pcs/pallet
Loading Quantity	494pcs / 40ft
