36V Mono Photovoltaic 190W Solar Panel,solar Panels for Sale

Name: 36V Mono Photovoltaic 190W Solar Panel,solar Panels for Sale
Brand: OSDA
SKU: 132582401

US$ 0.6 - 0.64 MOQ: 1 set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OSDA

Model Number:

ODA190-36-M

Ningbo Osda Solar Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OSDA

Model Number ODA190-36-M

Specification Normal

Application Commercial

Output Voltage (V) 36V

Solar Power (W) 190W

Specifications

*IEC61215, IEC61730, MCS CEC certified
*TUV, CE conformity
*ISO 9001:2008(Quality Management System) certified factory

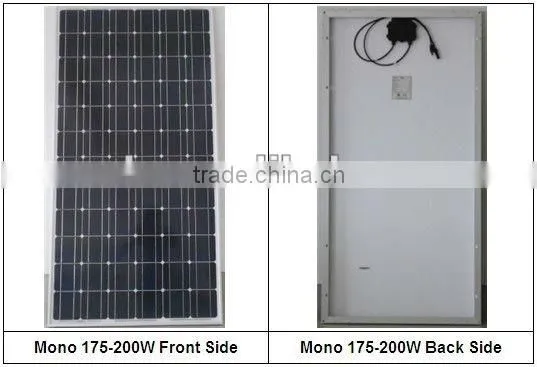

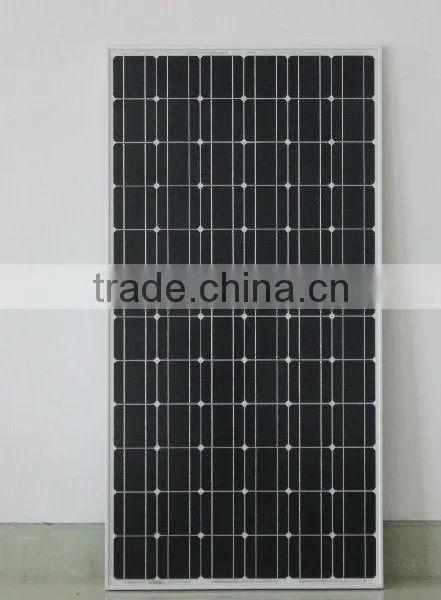

OSDA Mono 190w

Panel

Details on the back

Production

Packing & Loading

Technical parameter(with tolerance 0+3%)

Maximum Power(W)	190Wp
Optimum Power Voltage(Vmp)	37.15V
Optimum Operating Current(Imp)	5.11A
Open Circuit Voltage(Voc)	45.30V
Short Circuit Current(Isc)	5.62A
Cell Efficiency (% )	16.89%
Module Efficiency (%)	14.88%

Mechanical Characteristics

Cell Type	Monocrystalline 125x125mm (5 inch)
No. of Cell	72(6x12)
Dimensions	1580x808x35mm
Weight	14.5kg
Front Glass	3.2mm,High Transmission, Low Iron,Tempered Glass
Frame	Anodized Aluminium Alloy
Junction box	IP65 Rated
Output Cable	TUV 1x4.0mm2/UL12AWG,Length:900mm

Temperature and Coefficients

Operating Temperature(°C)	-40°C ~ + 85°C
Maximum System Voltage	600V(UL)/1000V(IEC) DC
Maximum Rated Current Series	10A
Temperature Coefficients of Pmax	-0.435%
Temperature Coefficients of Voc	-0.35%
Temperature Coefficients of Isc	0.043%
Nominal Operationg Cell Temperature (NOCT)	47+/-2°C
