♦Features :
1. Digital imaging module: high sensitivity 0.3MP color CMOS imaging module;
2. Imaging software: astronomical imaging software of Future Win Joe.
3. Camera connection: 24.5mm and 31.75mm (1.25”) eyepiece adapter;
4. Camera house: compact and light-weight L-shaped shell.
♦Applications:

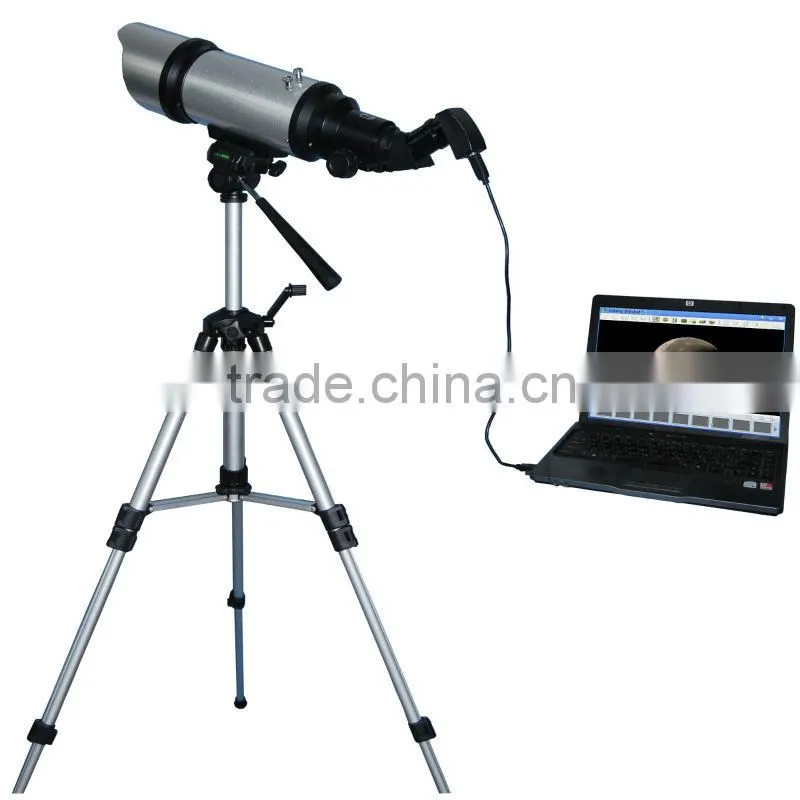

To update any type of optics telescope into digital telescope and to Increase the value of your telescope by adding powerful digital capability. No squinting with one eye, just be enjoyable and to share with others.
♦Function:
1. To preview images on screen of PC and to shoot pictures or to record movies;
2. To adjust the gain, contrast, exposure time, frame rate and color saturation manually for better images;
3. To offers function of images inverted vertically and horizontally that renders the image in its natural
orientation on screen
♦Benefits:
1. Easy installation, convenient operation;
2. Adapts to any telescope – 31.75mm (1.25”), and 24.5mm (0.965”) eyepiece tubes;
3. 1.25” adapter is threaded for standard eyepiece filters.
4. Compatibility with Win/MAC/Linux;
5. Real active resolution, no interpolation, no jaggies in picture.
6. Copyright software with 7 languages version.
Certification:
CE issued by SGS laboratory Verification No. SHEMO0808001971T01C
FC issued by SGS laboratory Verification No.SHEMO081100389IT01C
ROHS issued by POCE laboratory, Verification No.POCE13072325TCR
Copyright software of Future Win Joe V1.0 Registration Code: 2009SR035346
ISO9001-2008 issued by kunlun certification co., Ltd Verification No. 16814QZ0030R0M
♦Detail Specifications :
Capture Mode |
Picture and Video |
Sensor Parameter |
1/4” 0.35MP |
Max. Resolution |
640*480 |
Pixel Size |
5.6µm*5.6µm |
Responsivity |
1.9V/lux-sec |
Dynamic Range |
60dB |
S/N Ratio |
45dB |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
30fps@640*480 |
Exposure |
ERS or Manual |
Power Consumption. |
70mW |
Eyepiece Adapter Size |
24.50mm, 31.75mm |
Power Supply |
USB Powered |
Device Weight |
0.24kg |
Device Size |
54.0mm*63.0mm*35.0mm |
Cable length |
1.5m |
Function of Software |
Image & video Capture, Edit and Management |
System Compatibility |
32bit and 64bit, XP, Vista, Win7,Win8,Mac,Linux |
Language of software |
English, French, German, Spanish, Japanese, Chinese, Russian |
PC Requirements |
CPU: Inter Core2 2.8GHz or Higher; Memory: 2GB or More; USB Port:USB2.0 High-speed Port |
Trade terms
Payment:
100% prepaid for first order
For quantity order: T/T to our company account
For sample order or trial order: T/T to our company account, Western Union, Escrow
Delivery time and shipping:
Sample order or trial order (less than MOQ) will be sent within 3 days by express, such as EMS, DHL, TNT, FedEx etc.
Bulk order (less than 500 units) will be finished within 7 days, and normally shipped by air or sea through forwarders subject to client’s confirmation.
OEM orders need an extra customization time. Generally customization will take 10 days.
Warranty:
We offer two years warranty covering all of our products, including on line technical supports, replacements of defective items with new ones and supply of accessories, basing on our service offices all over the world.
Customization:
We offer free OEM service for our regular clients or big order customers, including logo printing, sticker print, CD file design and box making .--------------more information
Free sample for clients to place repeat orders:
We welcome our potential buyers to purchase sample for test and evaluation, and we will refund the sample fee when they place repeat orders.
Pre-sales service
As a manufacturer, not a trade company, we can provide sufficient pre-sale services to help our clients understand our products before placing an order to us.
1. Provide basic knowledge to help our clients understand working principle of our products;
2. Provide key factors and skill to our clients when they choose our products;
3. Provide sample pictures or video captured by our products according to clients’ special application for test and evaluation;
4. Provide product design drawing and package drawing to help clients work out customization pattern.
