Stone mining machines with features as follows:
1. PLC and two inverters allow the linear speed range from 0-40m/s.
2. Angle adjustment range from 0-360 degree, which allows any direction cutting.
3. Horizontal extensioning system ensures two parallel cuts.
4. Automatic constant tensioning system keep the diamond wire always under best working condition.
5. Quick backward speed of machine without loading range from 1.75m/min.
6. Safety alarm and stop system in case of unexpected wire breakage or other faults.

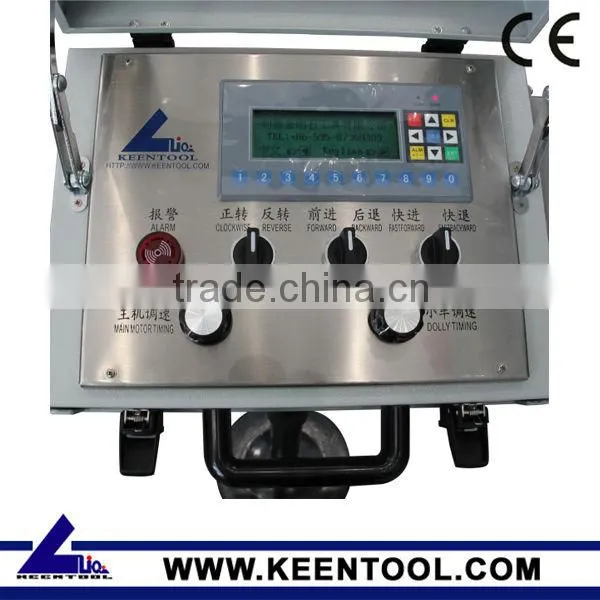

7. Distant control with very simple panel which is safe and easy for the operator.
Stone mining machines with Specifications of :
Technical Parameters: | |
Power Supply |
380V/50Hz |
Main motor power(Kw) |
37kw/45kw/55kw/75kw |
Driving wheel’s Diameter(mm) |
800/1000 |
Leading wheel’s Diameter(mm) |
380 |
Wire saw’s speed(m/s) |
0-40 |
Feeding Speed(mm/minute) |
1.75m/min |
Lateral extension(mm) |
(+/-)350-400 |
Rotation Angle |
3600 |
General gross weight(kg) |
2500-3400 |
Total Dimension(m3) |
4-7 |
Rmarks:
1.Standard power supply is 3-phases, 380Vots, 50Hz, other types could be ordered by customer.
2.We are in a position to design the wire saw machines as per customer special requirement.
Stone mining machines will be covered by waterproof plastic and packed in an crate, all these will protect the machine from damages while tranporting.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.

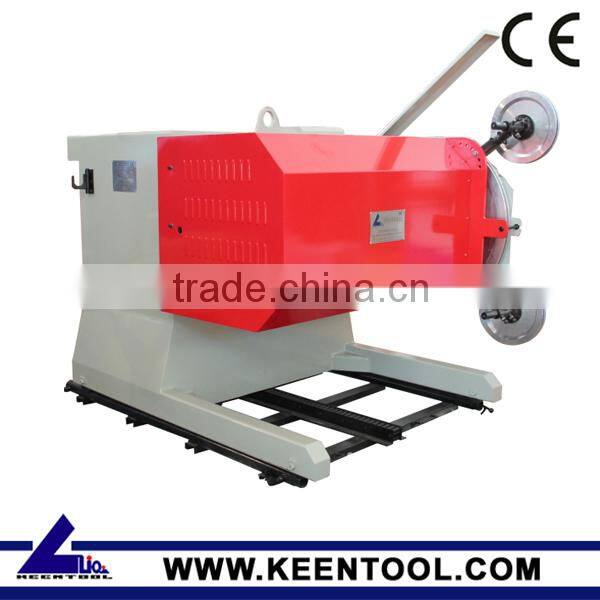

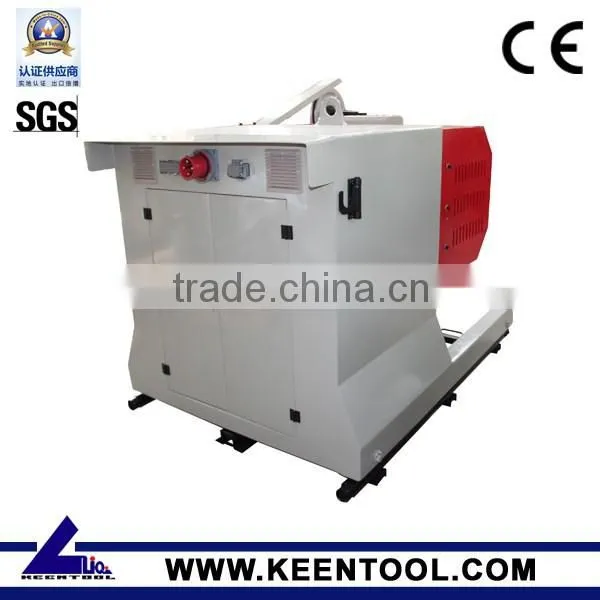

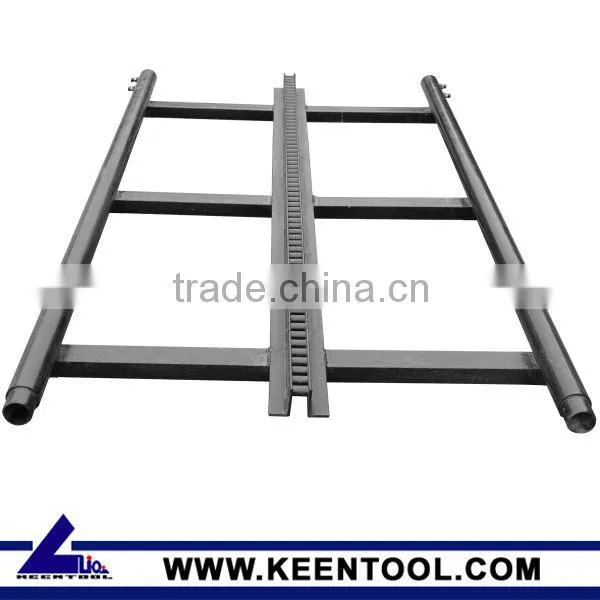

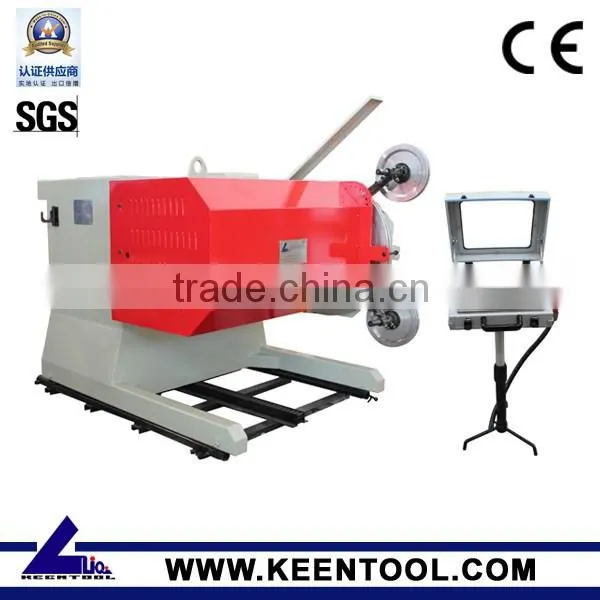

The photos of stone mining machines
Woking site

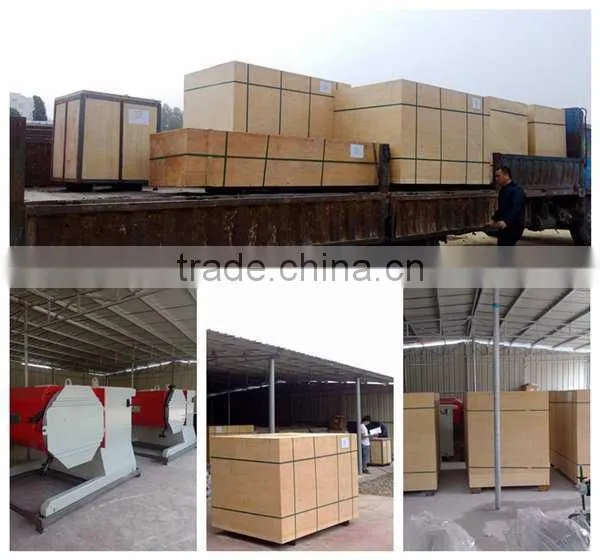

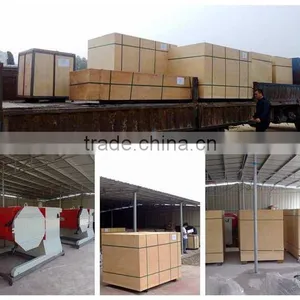

Packaging of stone mining machines
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:

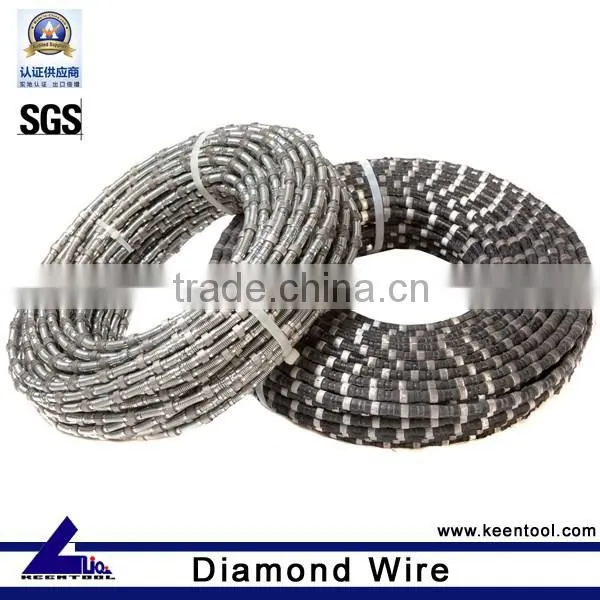

- Diamond Wire for stone quarry, blocks trimming and profiling.
- Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
- Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
- DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
- Conventional Diamond Tools for processing stone and other construction materials.
