Rope saw for reinforced concrete is mainly used for stone quarrying, like granite, marble, limestone, meanwhile, they can also be used for construction demolition, like bridge, buildings and so on, with features of high working speed, easy controlled and full automatic.
LQ Series rope saw for reinforced concrete with features of:
No. |
Item |
Data |
1 |
Total power |
39.60KW |
2 |
Main motor power |
37KW/50HP |
3 |
Travel motor power |
0.75KW |
4 |
Rotary cutting head motor power |
0.75KW |
5 |
Shifting cutting head motor power |
1.1KW |
6 |
Power supply requirement |
AC380±10% @ 50Hz |
7 |
Cutting head rotation |
3600 |
8 |
Lateral movement of cutting head |
350-400mm |
9 |
Length of rails |
2m or 3m |
10 |
Main motor rotate speed |
740 r/min(by inverter) |
11 |
Linear speed of drive flywheel |
0~40m/s |
12 |
Speed of machine traveling |
1750mm/min |
13 |
Available working temperature |
-150C~+400C |
14 |
Dimension of the machine |
L=1800,W=1100,H=1200 |
15 |
Weight |
2T |
1. PLC system and two vecter inverter that allow varied speed range from 0-40m/s, so it can be used for cutting different stone and construction materials.
2. Angle adjustment range from 0-360 degree, which allows any direction cutting.
3. Horizontal extension system that allow two parallel cuts.
4. Automatic constant tensioning system can keep the wire in best working condition.
5. Quick backward, greatly enhance the working efficiency.
6. Safety stop in case of wire breakage or other faults.
7. Independent control panel with features of easy and safety manipulation for operators.
rope saw for reinforced concrete with specifications of:
| Model | Main Motor | Speed | Length of wire | Driving wheels | Application |
| LQ-WSM-37 | 37KW | 0-40m/s | 20-80M | 600-1000MM | For stone quarrying and block trimming of all kinds of stone, and controlled demolition of buildings and bridge etc. |
| LQ-WSM-45 | 45KW | 20-100M | |||
| LQ-WSM-55 | 55KW | 20-120M | |||
| LQ-WSM-75 | 75KW | 20-150M |
Packaging: All packing will be done with protection against damages while transporting.
Delivery time: In 7 days for one set of wire saw machine.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.

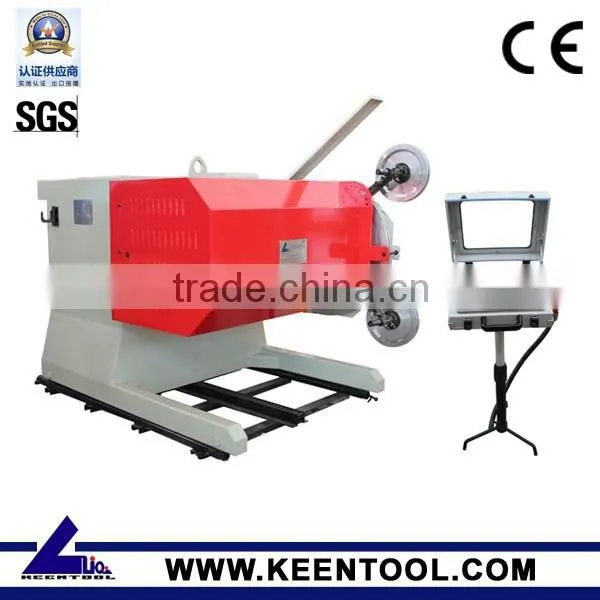

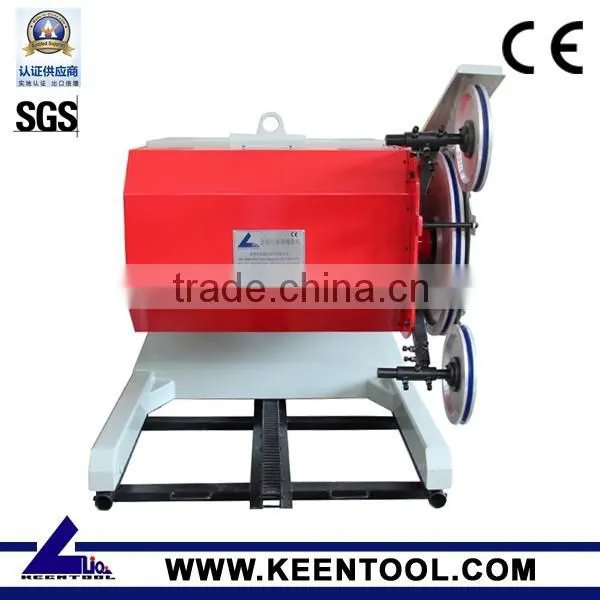

Related photos of rope saw for reinforced concrete :
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
- Diamond Wire for stone quarry, blocks trimming and profiling.
- Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
- Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
- DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
- Conventional Diamond Tools for processing stone and other construction materials.
Welcome to visit our website of or https://img13.fr-trading.comto know more about us.
