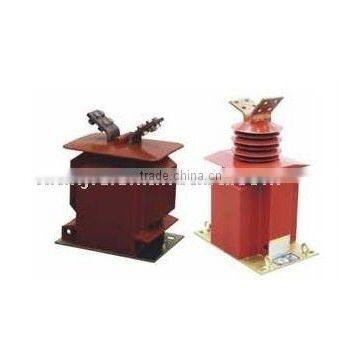

LZZBJ71-12 27.5 35 type outdoor current transformer

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	tuanjie
Model Number	LZZBJ71-12 27.5 35

LZZBJ71-12 27.5 35 type outdoor current transformer
Any special erquirements can be negotiated with us.

LZZBJ71-12 27.5 35 type outdoor current transformer

Technical data:

Type	Rated transformation ratio(A)	Accuracy Classes combination	Accuracy class and rated output COSØ=0.8				1s thermal current(kA)	Rated dynamic current(kA)
			0.2S	0.2	0.5	10P10
LZZBJ71-12	5-100/5	0.2S/10P15 0.2/10P15 0.5/10P15	10	15	20	20	200I 1n	500I 1n
	150-300/5						150I 1n	378I 1n
	400/5						45	112.5
	500/5
	600/5						63	157.5
	800/5
	1000/5						80	200
	1500/5
LZZBJ71-27.5 LZZBJ71-35	5-100/5	0.2S/10P15 0.2/10P15 0.5/10P15	10	15	20	30	150I 1n	375I 1n
	150/5						22.5	57
	200/5						27.5	69
	300/5						45	112.5
	400/5
	500/5						63	157.5
	600/5
	800/5
	1000-2500/5						80	200

Note: any special requirements can be negotiate with us.
