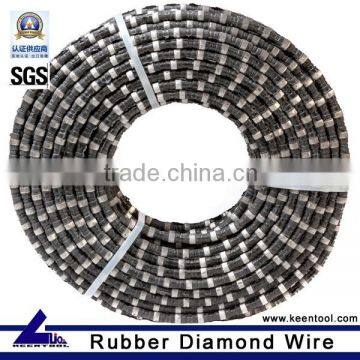

The diamond wire is widely recognized as the good solution for granite quarry and processing work, due to it’s relatively low comprehensive cost and high output offered. Diamond wire with vulcanised rubber is with exceptional advantages for quarrying of hard materials like granite, sandstone and slate etc, for the reasons as below:
1. Vulcanised rubber adheres to the beads and cable tightly, which protects the cable against from action of pastes, in particular when takes up small radii of curvature (beginning and end of quarry cuts)
2. Good flexibility which reduces the risk of irregular wear of diamond beads.
3. Higher safety for the operator, as good protection of internal cable from break.

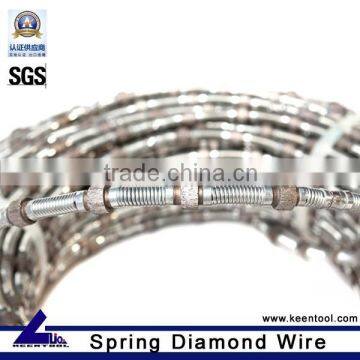

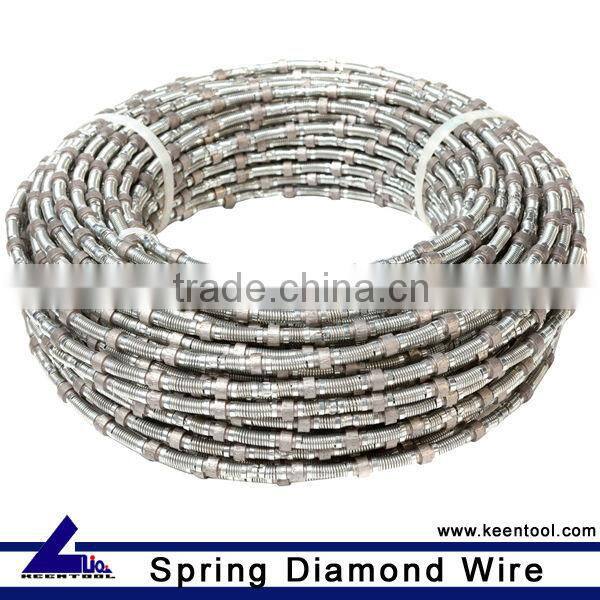

Spring diamond wire with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repairment, low cost, can be considered as the most simple and versatile of instruments for quarrying Marble, Limestone, Travertine etc .
Quarry diamond rope saw for granite | ||||||
Specification of beads(mm) |
Model |
Coating |
Beads No. (Pcs/M) |
Hardness of Granite |
Cutting speed (Sqm/Hr) |
Cutting life (Sqm/Mtr) |
|
Φ11.5mm Φ11.0mm |
GDW-KT-Q |
Rubber |
40 |
Soft |
8-12 |
28-40 |
Medium |
6-8 |
18-25 |
||||
Hard |
3-5 |
8-15 |
||||
Quarry diamond rope saw for Marble | ||||||
Specification of Beads(mm) |
Model |
Coating |
Beads No. (Pcs/Meter) |
Hardness of Marble |
Cutting speed (M2/Hour) |
Cutting life ( M2/Meter) |
|
Φ11.0mm Φ10.5mm |
MDW-KT-QR |
Rubber |
37 |
SOFT |
12-20 |
55-75 |
MEDIUM |
8-14 |
45-65 |
||||
HARD |
5-8 |
30-45 |
||||
Remarks:
1. Other specifications are available as per customers’ requirement.
2. Different bond of wire beads specially for different kinds of material are available.
3. The performance of wire depends much on real cutting operation, power and tension system of wire saws, chemical composition of material and dimension of cutting bench etc.
With guarantee of no wire breaking on the premises of correct operation.

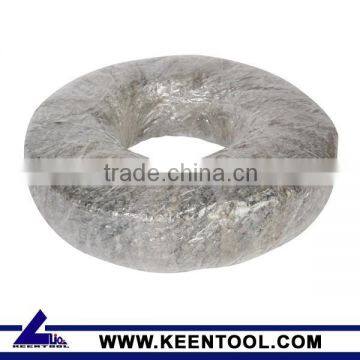

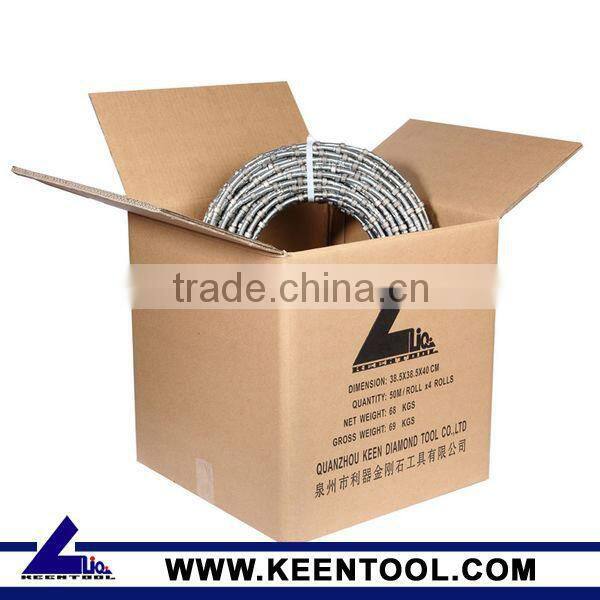

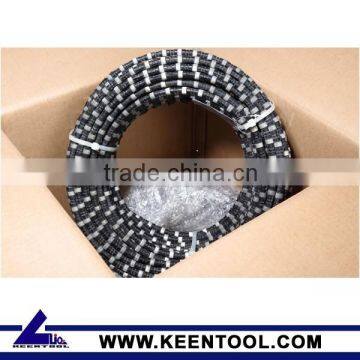

Packaging: Carton with water proof plastic.
Meters/Roll: 50 Meters/Roll
NW: 17KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
Related photos of Quarry rope saw :
Quarry Rope Saw
Quarry Rope Saw
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
- Diamond Wire for stone quarry, blocks trimming and profiling.
- Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
- Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
- DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
- Conventional Diamond Tools for processing stone and other construction materials.
Welcome to visit our website of or http://keentool.en.china.cnto know more about us.
