Premium rubber coating diamond wire for granite quarry cutting
1.Diamond cutting wire saw for granite quarry bench cutting
2.Sintered diamond wire beads
3.Wire's diameter 11.5mm
4.CE, SGS approved
The diamond cutting wire saw is widely recognized as the good solution for granite
quarry and processing work, due to it’s relatively low comprehensive cost and high output offered. Diamond wire with vulcanised rubber is with exceptional advantages for quarrying of hard materials like granite, sandstone and slate etc, for the reasons as below:
1. Vulcanised rubber adheres to the beads and cable, which protects the cable against from action of pastes, in particular when takes up small radii of curvature (beginning and end of quarry cuts)
2. Good flexibility which reduces the risk of irregular wear of diamond beads.
3. Higher safety for the operator, as good protection of internal cable from break.
Diamond cutting wire saw for granite quarry | ||||||
Specification of beads(mm) |
Model |
Coating |
Beads No. (Pcs/Mtr) |
Hardness of Granite |
Cutting speed (Sqm/Hr) |
Cutting life (Sqm/Mtr) |
|
Φ11.5*6.5 Φ11.0*6.0 |
GDW-KT-R |
Rubber |
40 |
Soft |
8-12 |
28-40 |
Medium |
6-8 |
18-25 |
||||
Hard |
3-5 |
8-15 |
||||
Spring Diamond Cutting Wire Saw for Marble Quarry | ||||||
Specification of Beads(mm) |
Model |
Coating |
Beads No. (Pcs/Meter) |
Hardness of Marble |
Cutting speed (M2/Hour) |
Cutting life ( M2/Meter) |
|
Φ11.0mm Φ10.5mm |
MDW-KT-QS |
Spring |
26 |
SOFT |
16-25 |
55-75 |
MEDIUM |
12-16 |
45-65 |
||||
HARD |
7-10 |
30-45 |
||||
|
Φ11.0mm Φ10.5mm |
MDW-KT-QR |
Rubber |
37 |
SOFT |
12-20 |
55-75 |
MEDIUM |
8-14 |
45-65 |
||||
HARD |
5-8 |
30-45 |
||||
Remarks:
1. Other specifications are available as per customers’ requirement.
2. Different bond of diamond cutting wire saw beads specially for different kinds of material are available.

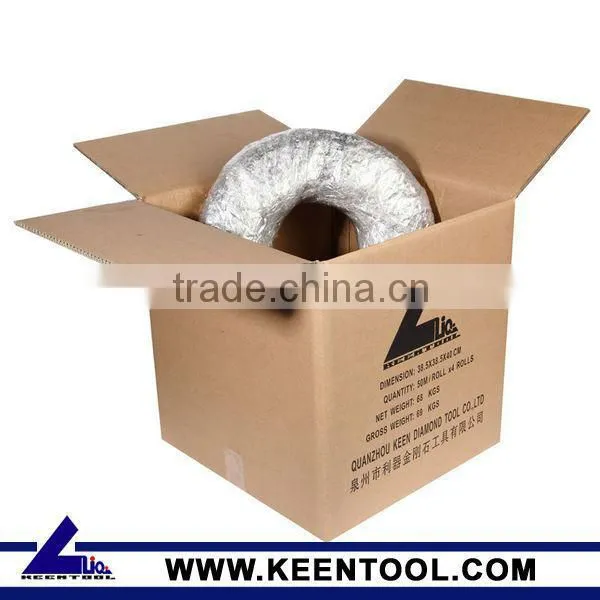

Packaging: Carton with water proof plastic.
Meters/Roll: 50 Meters/Roll
NW: 17-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.

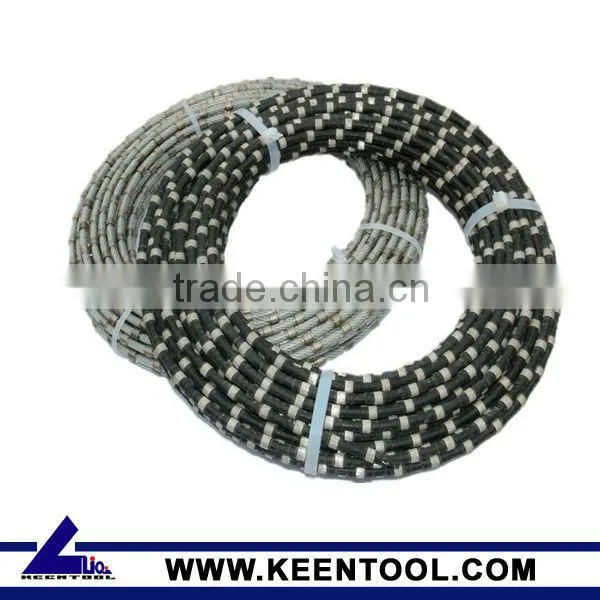

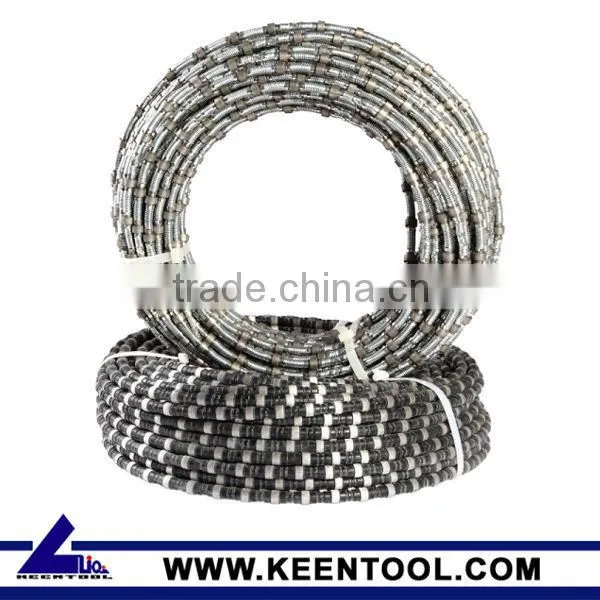

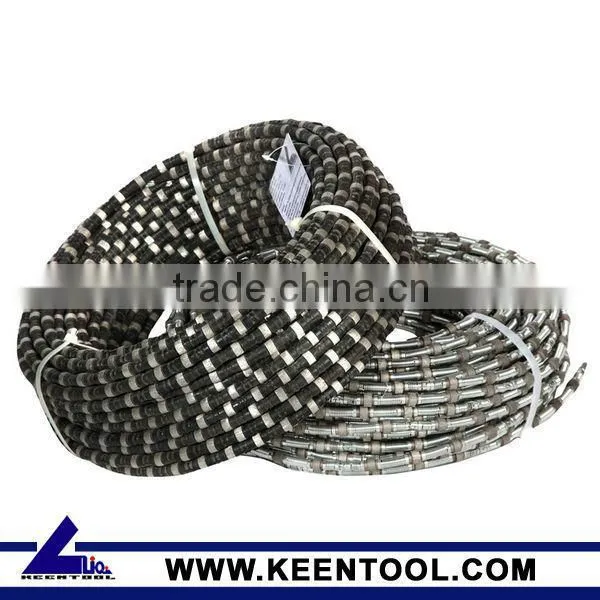

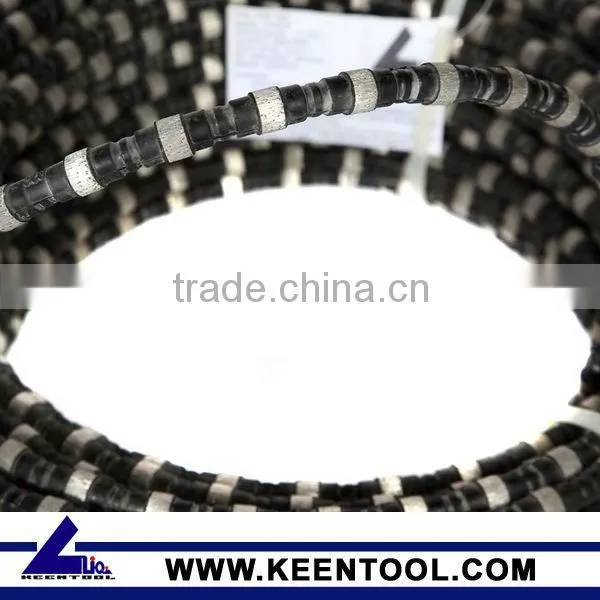

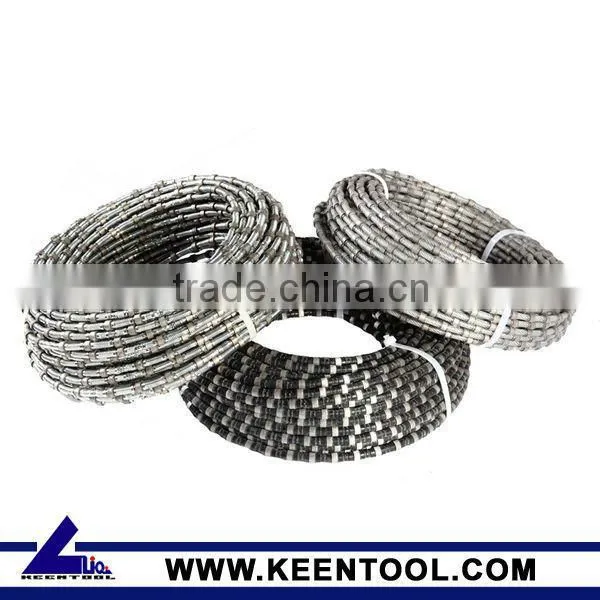

(Related photos of diamond cutting wire saw)
We, KEENTOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
- Diamond cutting wire saw for stone quarry, blocks trimming and profiling.
- Diamond cutting wire saw for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
- Wire saw machine with variable speed and step-less tension system for quarry and block cutting.
- DTH drill machine with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
- Conventional diamond tools for processing stone and other construction materials.
Welcome to visit our website of or https://img13.fr-trading.com to know more about us.
Premium rubber coating diamond wire for granite quarry
Premium rubber coating diamond wire for granite quarry
diamond wire for granite quarry
