Premium Diamond Cable Saw

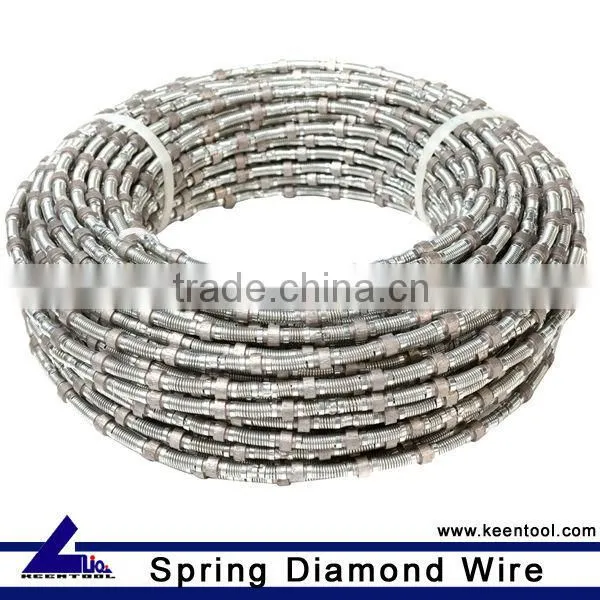

Spring diamond wire with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repairment, low cost, can be considered as the most simple and versatile of instruments for quarrying Marble, Limestone, Travertine etc .

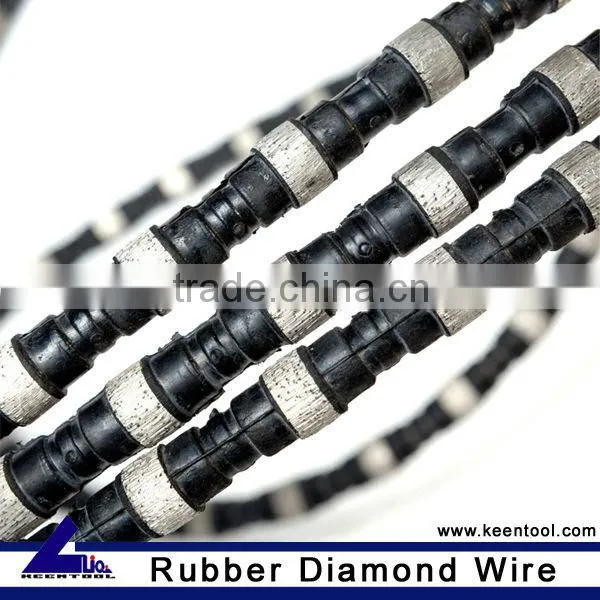

Crude rubber coating diamond wire with advantages of good flexibility, good protection for internal steel cable, good safety and stability during cutting, which is ideal choice for quarrying Marble, Limestone, Travertine etc.
Diamond Cable for Marble Quarry | ||||||
Specification of Beads(mm) |
Model |
Coating |
Beads No. (Pcs/Meter) |
Hardness of Marble |
Cutting speed (M2/Hour) |
Cutting life ( M2/Meter) |
|
Φ11.0mm Φ10.5mm |
MDW-KT-QS |
Spring |
26 |
SOFT |
16-25 |
55-75 |
MEDIUM |
12-16 |
45-65 |
||||
HARD |
7-10 |
30-45 |
||||
|
Φ11.0mm Φ10.5mm |
MDW-KT-QR |
Rubber |
37 |
SOFT |
12-20 |
55-75 |
MEDIUM |
8-14 |
45-65 |
||||
HARD |
5-8 |
30-45 |
||||
Diamond cable for granite quarry | ||||||
Specification of beads(mm) |
Model |
Coating |
Beads No. (Pcs/M) |
Hardness of Granite |
Cutting speed (Sqm/Hr) |
Cutting life (Sqm/Mtr) |
|
Φ11.5mm Φ11.0mm |
GDW-KT-Q |
Rubber |
40 |
Soft |
8-12 |
28-40 |
Medium |
6-8 |
18-25 |
||||
Hard |
3-5 |
8-15 |
||||
Remarks:
1. Other specifications are available as per customers’ requirement.
2. Different bond of wire beads specially for different kinds of material are available.
3. The performance of wire depends much on real cutting operation, power and tension system of wire saws, chemical composition of material and dimension of cutting bench etc.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
Packaging: Carton with water proof plastic.
Meters/Roll: 50 Meters/Roll
NW:/GW: 17KG/18KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cable.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.
We, Keen Diamond Tool Co. Ltd specialize in development and production of series machinery and diamond tools for stone quarry, processing and civil construction work, especially in the fields of diamond wires, diamond beads, wire saws, DTH drill etc. All of our products have been proved in very competitive performance in USA, Brazil, Mexico, Sweden, Germany, South Africa, Thailand etc.
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
1. Diamond Wire for stone quarry, blocks trimming and profiling.
2. Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
3. Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
4. DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
5. Conventional Diamond Tools for processing stone and other construction materials.
Welcome to visit our website of or https://img13.fr-trading.com to know more about us.
