Universal diamond segments for single blade, multi-blade, frame saws, gangsaw, core drills for cutting natural stone and other construction materials.
Detailed specifications of diamond segment:
Diamond Segments for Diamond blades | ||||
Diameter of blade |
Length (mm) |
Width (mm) |
Height (mm) |
|
Inch |
Metric(mm) |
|||
12” |
300 |
40 |
3.0 |
10/12/15/20 |
14” |
350 |
40 |
3.2 |
10/12/15/20 |
16” |
400 |
40 |
3.4 |
10/12/15/20 |
18” |
450 |
40 |
3.6 |
10/12/15/20 |
20” |
500 |
40 |
4.0 |
10/12/15/20 |
24” |
600 |
40 |
4.5 |
10/12/15/20 |
28” |
700 |
40 |
5.0 |
10/12/15/20 |
32” |
800 |
40 |
6.0 |
10/12/15/20 |
36” |
900 |
24 |
6.5/7.5 |
13/15 |
40” |
1000 |
24 |
6.5/7.5 |
13/15 |
48” |
1200 |
24 |
7.0/8.0 |
13/15 |
64” |
1600 |
24 |
8.2/9.2 |
13/15 |
72” |
1800 |
24 |
9.0/10.0 |
13/15 |
80” |
2000 |
24 |
9.5/10.5 |
13/15 |
110” |
2500 |
24 |
11/12 |
15/20 |
120” |
3000 |
24 |
11/12 |
15/20 |
135” |
3500 |
24 |
12.5/13.5 |
15/20 |
155” |
4000 |
24 |
13.5/14.5 |
15/20 |
165” |
4200 |
24 |
13.5/14.5 |
15/20 |
|
|
|
|
|
|
Universal size for Gang Saw Size: 20*5.2/4.6/8*10mm | ||||
Remarks:
1.Other specifications are available as per customer requirement.
2.Different types of segment special for different material are available.
1. Wire sawing operational assistance service.
2. Proposal for quarry development and plan, if necessary.

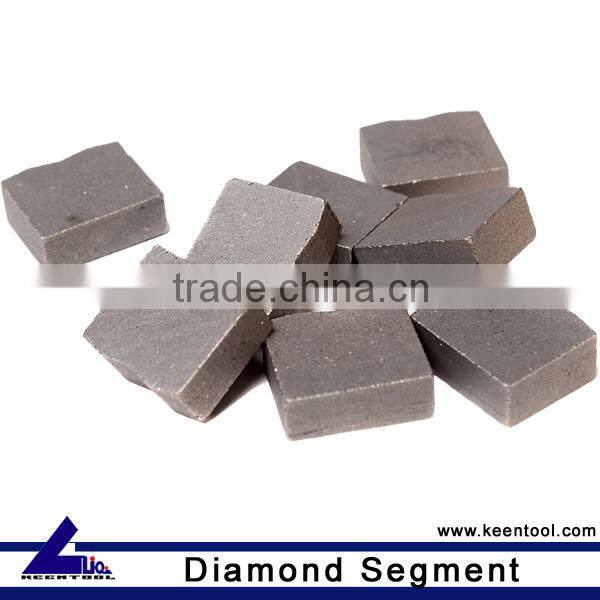

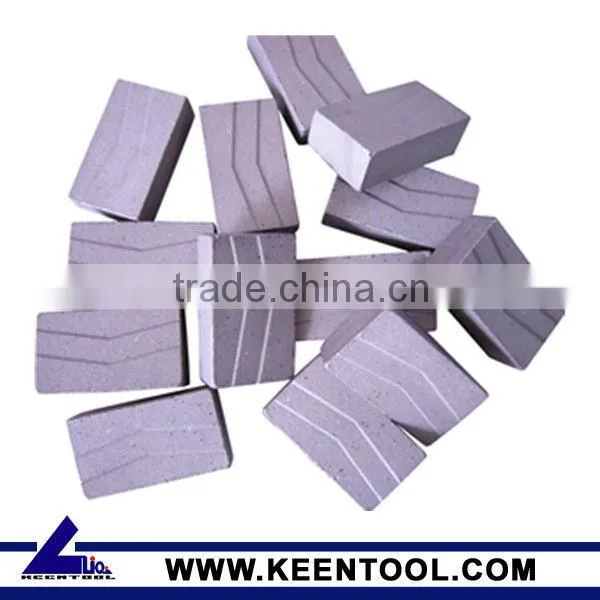

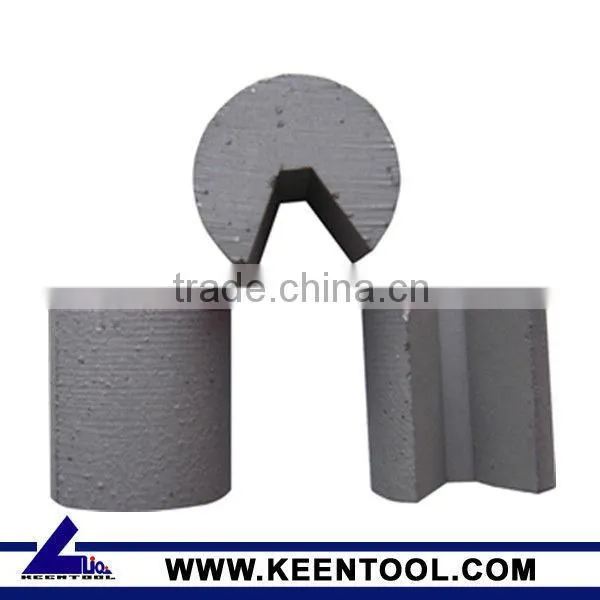

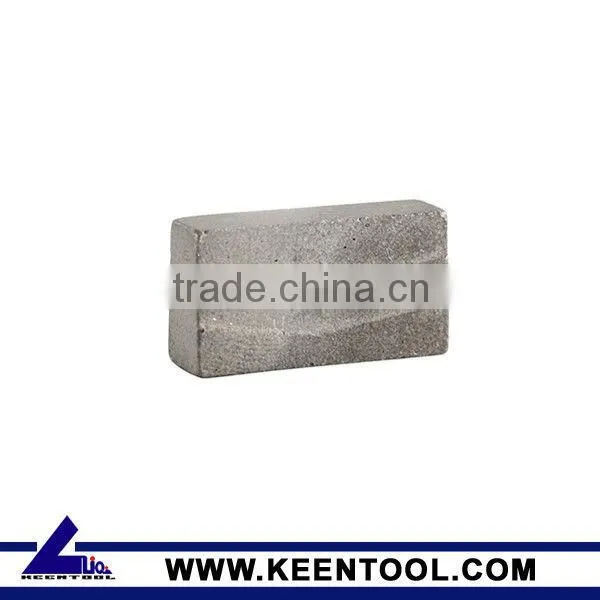

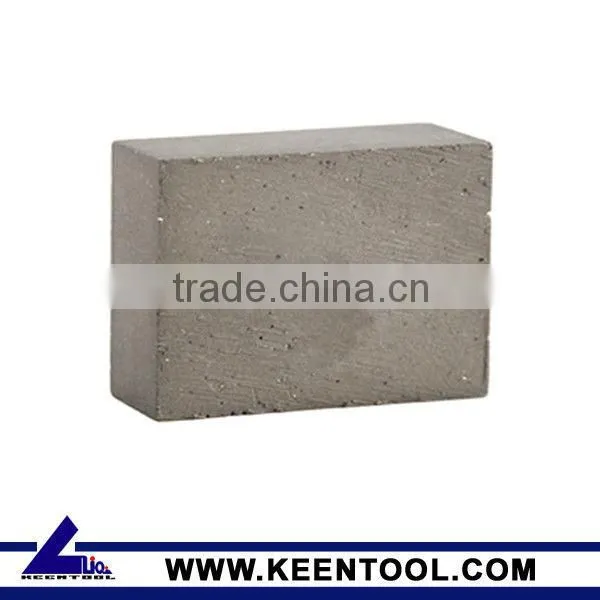

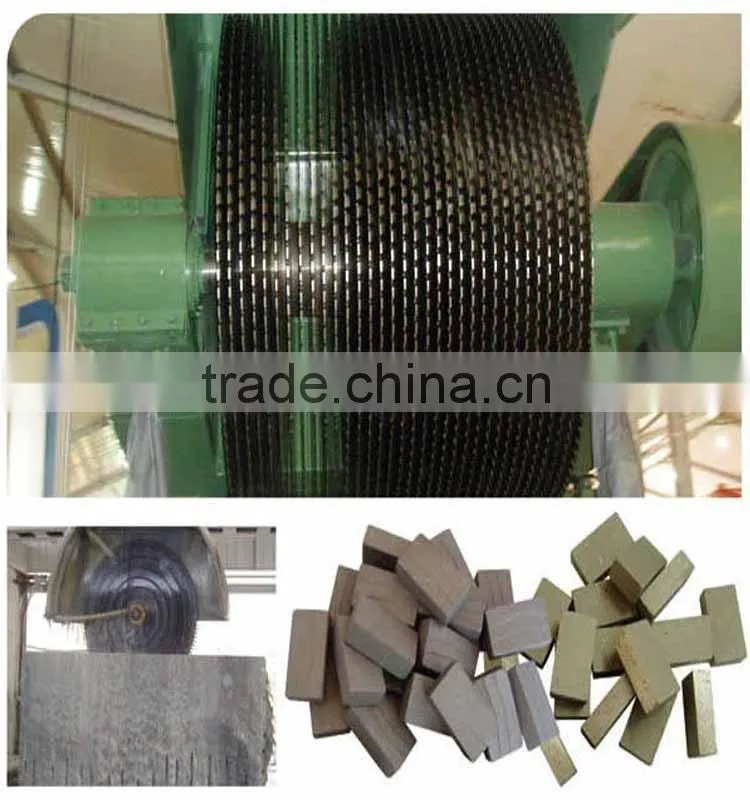

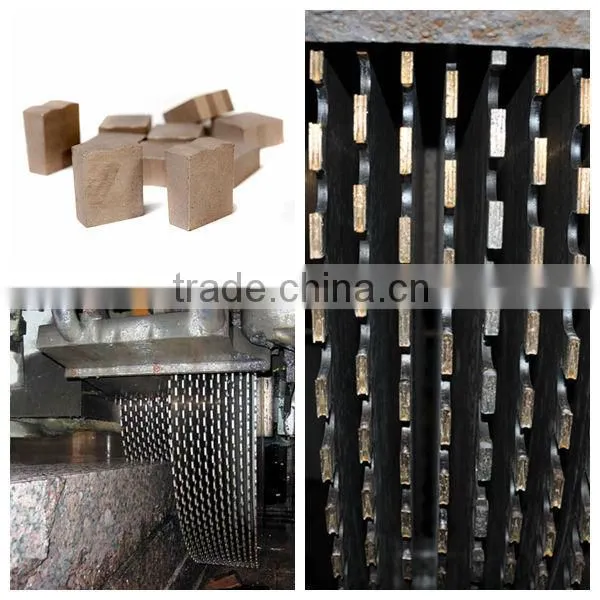

Related photos of diamond segment:
We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:
- Diamond Wire for stone quarry, blocks trimming and profiling.
- Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
- Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
- DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
- Conventional Diamond Tools for processing stone and other construction materials.
Welcome to visit our website of or http://keentool.en.china.cnto know more about us.
