MPEG4 decoder

Specifications

MPEG4 decoder
optional for DVB-S/-S2/-T/-C, ISDB-T tuner
VBI TELETEX , SUBTITILE support
NMS control support

 MPEG4 decoder



Outline

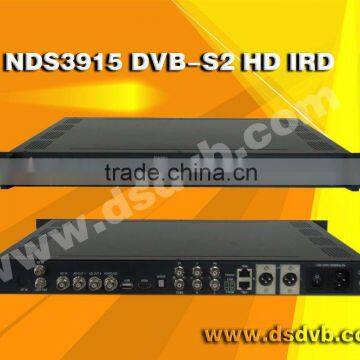

NDS391X Full HD satellite receiver  can decode transport stream from ASI, tuner or IP sources into audio and video signal. With the help of CAM module, it can decrypt the encrypted programs in the input TS. Apart from this function, it also can encapsulate the output TS into IP pocket and output in UDP protocol. User can watch the contents of the IP outputs from decoding software on computer. The professional IRD has full-range of output interface ports, such as HD-SDI, SD-SDI, HDMI, YP_bP_r, XLR, S/P DIF, etc., which can satisfy the professional user's needs.



Features



   Factory optional for DVB-S/-S2/-T/-C, ISDB-T tuner inputs

   MPEG-2 (MP/ML&MP/HL) and MPEG-4 Part 10 ( AVC high profile   level 4.1)   standards complaint and decoding

  Various choice of I/O interfaces, including ASI input/output, CVBS output, YPbPr output, HDMI output, SD/HD output (embedded 2 pairs stereos audio), AES/EBU output, 10/100M TS over IP input/output ( optional)

  Built-in re-multiplexer ( temporarily unavailable )

  VBI TELETEX , SUBTITILE support

  Caption support

  10/100M Ethernet TS over IP I/O, UDP protocol

   Unicast and multicast support

  Two DVB-CI slots, multiple programs decryption support

   NMS control support

Specifications



DVB-CI module	Descrambling procession	Supporting European DVB-CSA
	Smart Card interface	ISO7816
	Interface Card separation	PCMCIA
ASI input	BNC connector 1 route input; 2 routes output	Input impedance 75
	Maximum transmitting rate	54Mbps
ASI   output	BNC connector 1 route input; 2 routes output	Output impedance 75
	Maximum transmitting rate	54Mbps
Ethernet	Connector	RJ-45
	Interface Type	10/100 Base-T
	Protocols	TS Over IP : UDP, NMS : UDP
Video output	CVBS×1 (BNC)	576i-25 fps, 480i-29.94 fps
	YPbPr×1 (BNC)	1080i-25 ,29.94fps 720p - 50 59.94fps
	SDI×1 (BNC)	1080i-25 ,29.94fps;720p-50 59.94fps 576i-25 fps480i-29.94 fps
	HDMI×1	1080i-25 ,29.94fps720p-50 59.94fps 576i-25 fps;480i-29.94 fps
Audio output	Stereo unbalanced audio	BNC interface
	Stereo balanced audio	XLR interface
	Digital audio	SPDIF
General	Dimensions ( L×W×H)	482mm*360mm*44mm
	Approx weight	3.2kg
	Power	<20W(Max)
	Temperature range	0~45∩ (Operation); -20∩~80∩ (Storage)
