Specifications
dvbt IRD1,ASI,SD-SDI, CVBS,S-video and XLR Output interface
2,With CI slot
3,NMS supported
dvbt IRD
Outline

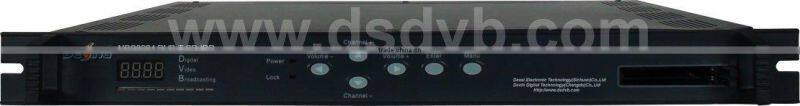

NDS392X DVB SD IRD with CI slot can decode transport stream (compliant with MPEG2) from ASI or tuner into audio & video signal. With the help of CAM module, it can decrypt the encrypted programs in the input TS. It also can encapsulate the input TS into IP pocket and output in UDP protocol. Apart from this, the IRD has 2 ASI outputs and digital video & audio output interfaces, including SD-SDI, S-video and XLR, etc. In a word, the strong network management function provides user more convenient operation experience.
Features
MPEG-2 digital & Fully DVB compliant
Two routes MPEG-2 transport stream output
User can edit various satellites and transponders information
256 colors display
PAL / NTSC automatic conversion
Channels automatically saved
2 CVBS outputs, 2 AUDIO outputs
2 PCMCIA Interfaces
One RJ45 interface, support NMS, TCP / IP network transport protocols to convenient network management
2 TS stream outputs, One TS Stream Input
One S-Video
2 separate CIM modules, each supports up to decrypt 8 channel Programs
One LNB input, one LNB output
2 Video outputs
Specifications

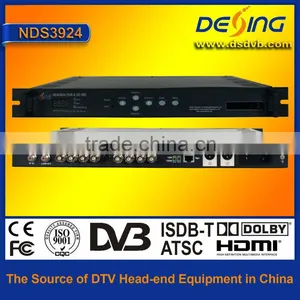

NDS3924 DVB-T SD IRD |
Input Frequency Range: 146-862MHz |
Bandwidth: 8MHz (2, 6, 7MHz Optional) |
Input Level: -87- -20dBm |
Constellations: QPSK, 16QAM, 64QAM |
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8 |
Ethernet |
Connector |
RJ-45 |
Interface Type |
10/100 Base-T |
|
Protocols |
TS Over IP: UDP ; NMS: UDP |
|
DVB-CI |
Descrambler |
DVB-CSA |
Smart Card interface |
ISO7816 |
|
Separate (between TS, converter and card), interface |
PCMCIA |
|
Video output |
2 CH CVBS |
BNC interface,75 ohm |
Audio output |
Stereo unbalanced audio |
BNC interface,10k ohm |
ASI input |
BNC interface |
Input impedance 75 ohm |
Max transport rate |
54Mbps |
|
ASI output |
BNC interface |
Output impedance 75 ohm |
Max transport rate |
54Mbps |
|
General |
Voltage |
AC :110-240V~, 50/60Hz |
Power |
<20W(Max) |
|
Temperature |
0~40∩(Operation); 10∩~35∩(Storage) |
|
Humidity |
10%~90% |
|
Dimension |
44mm*482mm*360mm |
|
Approx weight |
3.2kg |
