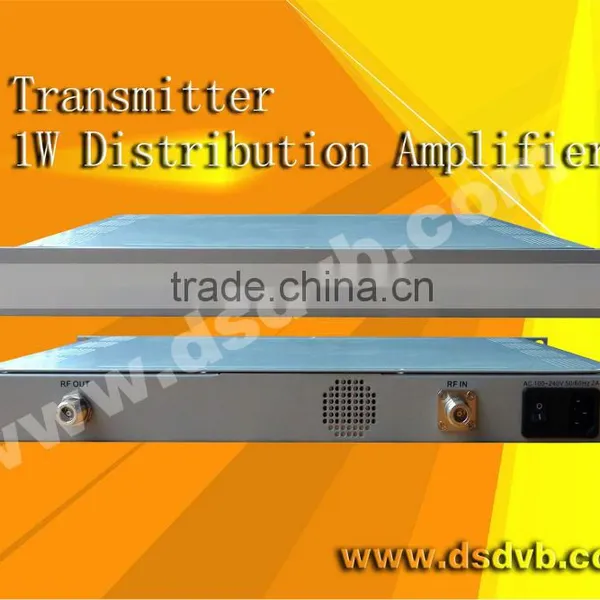

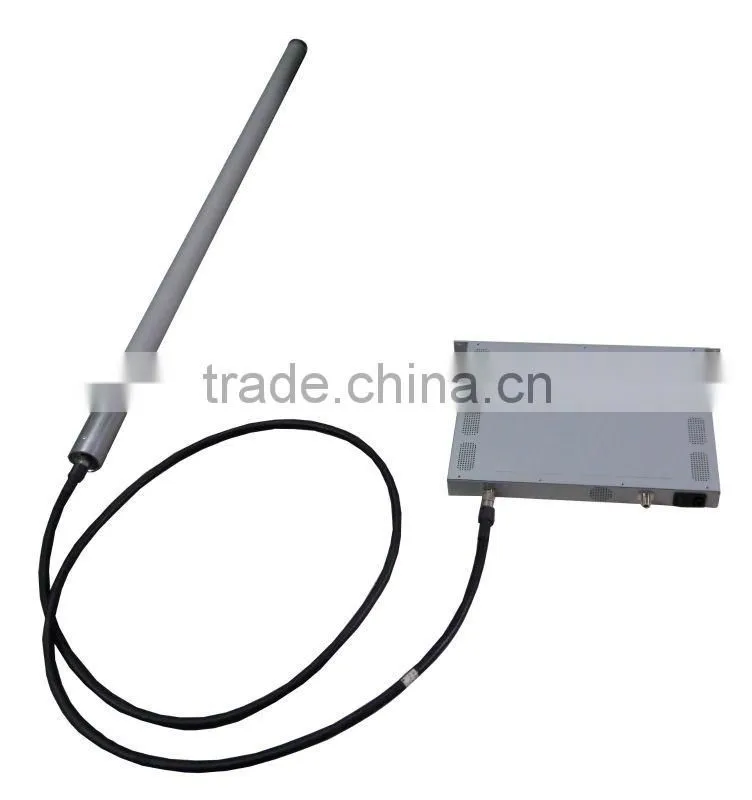

1w Digital Low Power tv Transmitter

1w Digital Low Power tv Transmitter photo-1
US$ 1 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
dexin
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Sichuan, China
Brand Name dexin

Specifications

RF INPUT&OUTPUT
low power consumption
Alarming and signal monitoring function via LED indication

Distribution Amplifier

Outline

The digital TV transmitter (In-room type) is capable of supporting network organizations of single frequency net and multi-frequency net, and supporting single carrier mode and multi-carrier mode. Besides, this transmitter supports the transmitting methods of single channel and broad band; and it provides with band width of 470MHz-566MHz. Furthermore, the transmitter is composed of an import power amplifier with high gain, which greatly increases the linearity and reliability of the product. And because of the AGC function, the stability of output power, the reliability and performance of the product are excellent.

This digital TV transmitter (In-room type) can be widely used in HDTV/SDTV digital TV signal transmitting or broadcasting system as well as digital broadcasting.

Features



  • Provided with intelligent and modular power amplifier and import power amplifier with high gain.



  • Designed with low power consumption and super linearity which greatly increases the transmitting power of the transmitter and reduces the non-linear distortion products.



  • With AGC function for ensuring the stability and reliability of the product.



  • Alarming and signal monitoring function via LED indication.



  • Switching voltage stabilizer with broad stabilizing range and high efficiency.



  • One-to-one allocation of amplifier and switching power supply, high efficiency and low connection loss.



  • With function of multiple lightening protection.



  • Capable of automatically working for 24 hours.



  • Elegant appearance

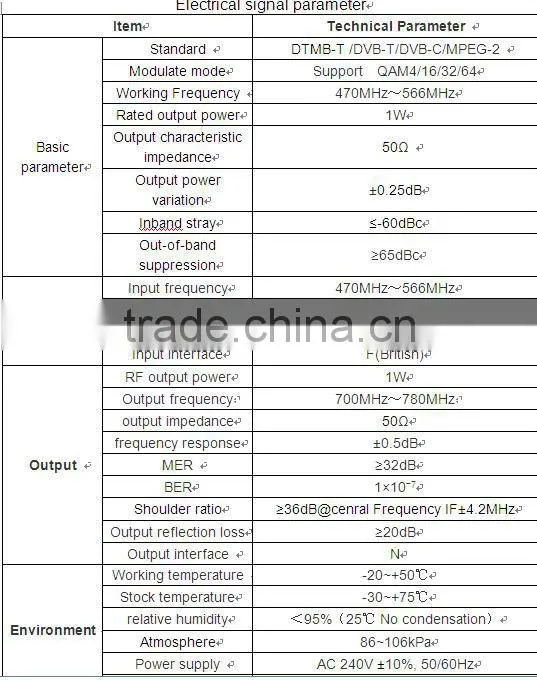

Specification

 1w digital low power tv transmitter

Principle

1w digital low power tv transmitter

1w digital low power tv transmitter

1w digital low power tv transmitter

1w digital low power tv transmitter
