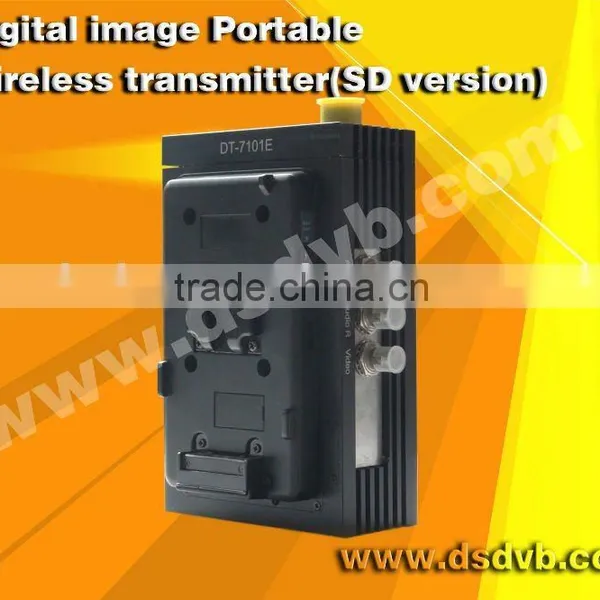

DT-7101E-2 H.264 SD Portable Digital Image Wireless Transmitter
US$ 5,000 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
DESAI
Model Number:
DT-7101E-2
Payment & Shipping
Payment Methods:
Port of Shipment:
CHENGDU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Sichuan, China
Brand Name
DESAI
Model Number
DT-7101E-2
Specifications
H.264 SD Portable Digital Image Wireless Transmitter1 CVBS & SDI input (optional)
2 Real-time video transmission
DT-7101E-2 H.264 SD Portable Digital Image Wireless Transmitter
Features
- support mobile transmission
- Strong Anti-multipath interference ability, strong non-line-of-sight transmission function
- High frequency amplifier adopts automatic control thechnology, energy saving
- The use of advanced COFDM digital modulation and demodulation techniques,as well as audio and video compression technologies to achieve high-quality transmission effects
- Support large input voltagerange,high efficiency,and low power consumption
- Support CVBS and SDI input (optional)
- Small,portable ,and easy to operate
- SD mode. Easy to carry and flexible in using . Applicable to the complex and volatile external environment terrain
- Real-time video transmission
- High-speed mobile communication .
- With secure encryption, small size, light weight, high reliability easy installation , easy operation,support the work of the day.
- A maximum of 5 different channels can be simultaneously used in the same location
Specification :
Central Frequency |
320~360Mhz,600~860Mhz |
Modulation Standard |
COFDM |
Carrier |
2K |
Modulation Mode |
QPSK |
Compressed Format |
H.264/MPEG4 AVC |
Output Power |
≥1W |
Battery life |
18 hours (alkaline) |
| Accessory | Neck strap …1 |
Transmission Distance |
2-3Km |
Channel Bandwidth |
8MHz,2/4/6Mhz(optional) |
Video Data Rate |
≥4.5Mbps (when 8Mhz BW) |
Bit Error Rate |
≤10-8 |
Video format |
CVBS,SDI(optional) |
Audio format |
Stereo |
Video Resolution |
720*576 i, 720*480i |
MTBF |
≥10000 hours |
Operating Voltage |
DC10V-16V |
Operating Temperature |
-30-+50 |
Operating Humidity |
Relative humidity 85% |
Dimension |
180mm*110mm*88mm |
Weight |
1.8 Kg |
