car tv receiverdual rf input
LED real-time monitor
multi AV format output
ASI in/out; IP in/out

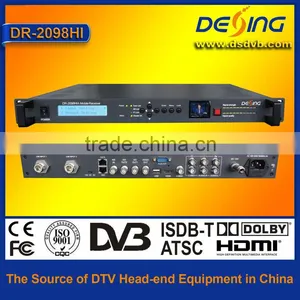

DR-2098HIA Mobile car tv receiver
Brief Introduction

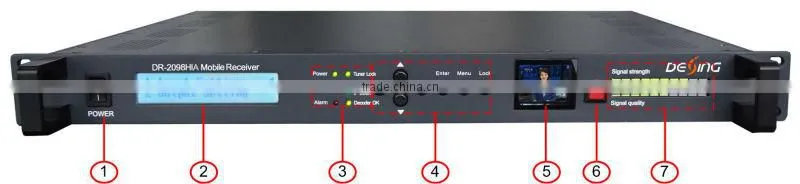

1 |
Power Switch |
|
2 |
LCD Screen |
|
3 |
Indicators |
|
4 |
Key board |
Up/Down/Left/Right Buttons |
Enter/Menu/Lock Buttons | ||
5 |
LCD Monitor |
|
6 |
LCD Monitor Switch |
|
7 |
LED indicator bars for signal strength & quality |
|

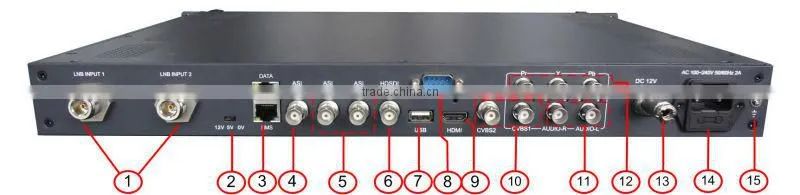

1 |
RF input interface (antenna interface) |
2 |
Antenna feed ( 0V, 5V, 12V) |
3 |
Ethernet Port (NMS: to connect to PC for management; DATA: for IP signal input and output) |
4 |
ASI input |
5 |
ASI output 1 & 2 |
6 |
HDSDI output |
7 |
USB Port (for upgrading via USB driver) |
8 |
Audio XLR output |
9 |
HDMI output |
10 |
CVBS1 and CVBS2 video output |
11 |
Left and right audio channel output |
12 |
YPbPr video output |
13 |
DC Power interface |
14 |
AC Power slot |
15 |
Grounding |
DR-2098HIA is a professional mobile digital receiver to convert the input tuner signals to crystal clear digital or analog video in various formats available at CVBS, YPbPr, HDMI, and HD-SDI.
It is designed to support the industry standard 576i/480i, 576p/480p, 720p and 1080i decoding.
It is also equipped with 1 ASI input, 2 ASI output ports and a data port for both input and output to make it possible to process more programs.
Additionally, the implemented web server allows the configuration of the DR-2098HIA with a standard web browser. Basic configuration can also be done locally with the LCD display and navigation buttons. The LCD monitor can, at the same time, realize the real-time observation about broadcasting status.
Key Features
lconvenient and efficient network transmission
ldual LNB input
lreal-time LED monitor for decoded program
lmulti Audio/Video format output: 1*HDMI, 2*CVBS, 1*YPbPr, 1*HD-SDI
lmultiple video resolution: 576i/480i, 576p/480p, 720p and 1080i decoding
lSupport ASI input and output, IP input and output
lSupport Keyboard and LCD operation
lweb NMS management via Ethernet port
Technical Specifications
Input Parameters | ||
Tuner in |
Signal source |
2*LNB, N-L16 (negative) |
Receiving frequency |
30MHz~900MHz |
|
Bandwidth |
2MHz, 4MHz, 6MHz, 8MHz |
|
Input impedance |
50Ω |
|
Receiving restriction |
20dμBv~103dBμv |
|
Demodulation mode |
COFDM/DVB-T |
|
Transport Stream in |
ASI input |
1*ASI, BNC (negative) |
IP input |
UDP Unicast/Multicast (100M, RJ45) |
|
Output Parameters | ||
Stream out |
Video output port |
1*HDMI, 2*CVBS, 1*YPbPr, 1*HD-SDI |
Audio output |
L/R channel (unbalanced); XLR (balanced) |
|
ASI output |
2*ASI, BNC (negative) |
|
IP output |
UDP/ Unicast/Multicast (100M, RJ45) |
|
Resolution |
HDMI |
1080i-25, 29.94fps, 720p - 50 59.94fps, 576i-25 fps, 480i-29.94 fps |
CVBS |
576i-25 fps, 480i-29.94fps |
|
YPbPr |
1080i- 25, 29.94fps,720p-50, 59.94fps |
|
HD-SDI |
1080i-25, 29.94fps,720p-50, 59.94fps, 576i-25 fps, 480i-29.94 fps |
|
Data Formatting |
MPEG-2, H.264 |
|
BER |
≤10-8 |
|
Miscellaneous | ||
Management |
Web NMS via Ethernet; LCD & Key board |
|
Upgrade |
External USB driver |
|
MTBF |
≥10000hrs |
|
Working voltage |
DC 10V~16V; AC 90V~250V |
|
Feed voltage |
DC 10V~16V |
|
Power dissipation |
12W |
|
Dimension |
19″1U, 483×400×44(mm) |
|
Weight |
3.5Kg |
|

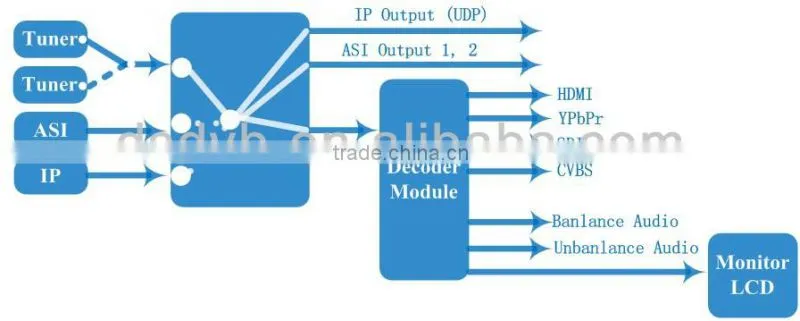

Principle Chart
