Specifications
1.SPTS and MPTS code stream2.two groups separate output
3. ISDB_T and ISDB_TB standard
ISDB-T digital TS multiplexer
Outline

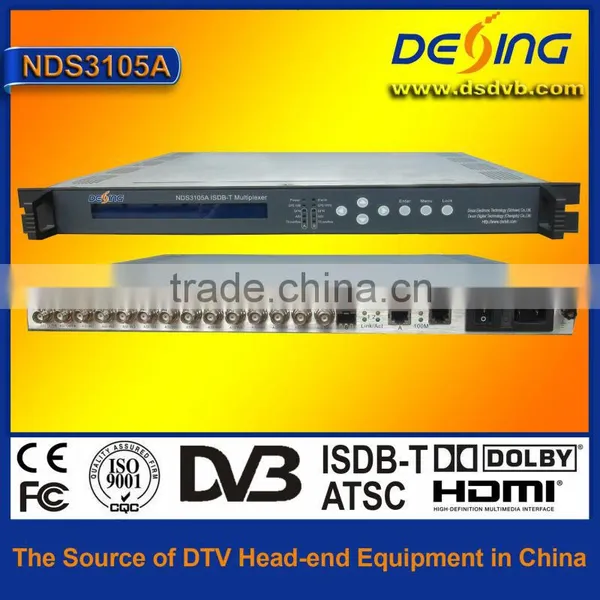

NDS3105A ISDB_T multiplexer is a TS re-multiplexer developed to adapt Japan and those South American countries such as Brazil and Argentina. It supports 2 separate multiplexers which are fully complying with ISDB-T standard. This multiplexer can transfer the head-end single program and multi-program to ISDB-T standard TS as required. Additionally, it also supports PSI/SI table editing and generating, single frequency network and IIP packet editing and inserting. What’s more, the NDS3105A ISDB-T multiplexer can support up to 6channels input and 2 channels output, the transmission mode is compatible with hierarchy. User can upgrade and control the multiplexer system online through network.
Specifications
Signal inputting |
12 groups inputting ( max value 214Mbps/group) |
188/204Byte transmission stream packet | |
TS packet mode and suddenly code rate mode | |
GPS 10mhz reference clock inputting | |
GPS 1pps signal inputting | |
Re-multiplexing |
TS re-multiplexer |
256 PID mapping for each group(manual, auto optional) | |
PCR correction | |
PSI/SI table automatically generating | |
Modulation parameter |
mode mode1(2k) model2(4k) model3(8k) |
Guard interval 1/4 1/8 1/16 1/32 | |
Coding rate 1/4 2/3 3/4 5/6 7/8 | |
constellation DQPSK QPSK 16QAM 64QAM | |
Layer A A+B A+B+C | |
Bandwidth 6MHz 7MHz 8MHz | |
SFN parameter |
Maximum time delay 0ms ~ 1000ms |
Off set -1000ms ~ +1000ms | |
Device ID 0 ~ 30 | |
Output |
2 groups separate output |
RS encoding output supporting | |
1pps signal loop-out | |
General |
Demissionn 44mmx482mmx410 |
Temperature 0~45°C(operation) -20~80°C(storage) | |
Power supply 220VAC±10%,50Hz,10W |
