Specifications
1. Automatically multiplexing TS programs & related EIT tables2. Saving cost of EPG server&database mainten
3. support EIT
DVB EIT TS multiplexer

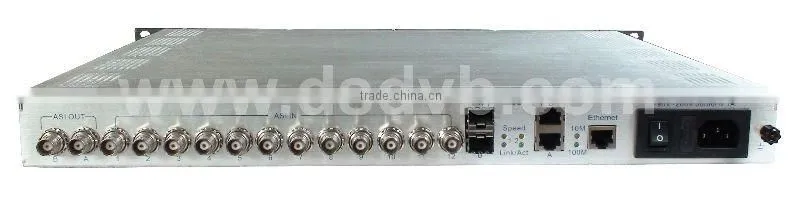

EIT multiplexer can not only multiplex programs' video, audio, PCR PIDs, but also multiplex the PID of program’s EIT table (EPG information). When user selects the needed programs and gives them to the output, The EIT table PID will automatically go to the output together with the programs' video, audio, PCR PIDs. In Comparison with normal EPG system architecture, this facility largely gives the convenience to users who want to have EPG service to their Digital Head-end System. It doesn’t require EPG server, EPG Database, and day after day painstaking Database maintenance.. It has 12 ASI input ports, 2 two separate ASI output ports and 2 gigabits IP output ports.
MPEG-2 TSinput |
Supporting TS packet mode and TS burst mode |
|
188/204Byte TS packet | ||
12 channels ASI input | ||
connecto BNC base, impedance 75Ω | ||
ASI output |
Two separate outputs |
|
Maximum code ratio 215Mbps | ||
IP output |
two separate gigabit outputs via Ethernet ports |
|
Maximum output code ratio 215 | ||
UDP output, unicast and multicast support | ||
Miscellaneous |
Size |
44mm X 482mm X 410mm |
Environment |
0~45°C(operation) -20~80°C(storage) |
|
power |
220VAC±10%,50Hz,25W |
|
