Help CenterSDI to MPEG2 IP Encoder
Related Products
Specifications
1. MPEG2 Ip encoding2. SDI in, CVBS in , ASI out , Ip out
Outline

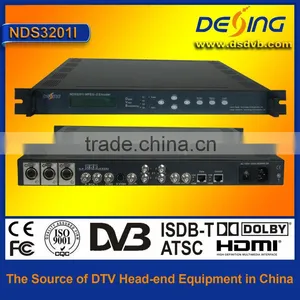

NDS3201I MPEG-2 Encoder( with SDI) is a professional audio &video encoding device with powerful function. This device can support a variety of analog and digital audio and video input interface, say, the video input interfaces include the CVBS, S-Video and SDI , and audio input interfaces include the balanced and unbalanced analog input interface, the analog audio input interface( XLR) and digital audio input interfaces( AES/EBU). Moreover, this encoder can encoder the SD audio & video which format is MPEG-2. In conclusion, its high compatibility and excellent encoding quality makes this device widely be used in a variety of digital broadcasting system.
Features
- MPEG-2 MP@ML(4:2:0) video encoding, advanced video pre-processing algorithms
- MPEG1 Audio Layer 2
- Supports Composite, S-Video analog video input
- Supports SD-SDI digital video input
- Supports balanced and unbalanced analog audio inputs
- Supports AES/EBU, SD-SDI digital audio input
- Supports PAL, NTSC SD video formats
- Supports D1,HD1,2/3D1,3/4D1 Resolutions
- TS over UDP unicast/multicast output
- LCD / keyboard, network management
Specifications
Input |
Video |
Analog composite video(CVBS), BNC interface |
S-Video interface | ||
SD-SDI, BNC interface | ||
Audio |
Analog stereo audio(balanced), XLR interface |
|
Analog stereo audio(unbalanced), BNC interface | ||
AES / EBU digital audio, XLR interface | ||
SD-SDI embedded audio | ||
Video |
Resolution |
720×480_60i, 720×576_50i(D1) |
544×480_60i, 544×576_50i(3/4D1) | ||
352×480_60i, 352×576_50i(HD1) | ||
480×480_60i, 480×576_50i(2/3D1) | ||
Encoding |
MPEG-2 MP@ML(4:2:0) |
|
Bit-rate |
0.8Mbps~20Mbps |
|
Rate Control |
CBR/VBR |
|
GOP Structure |
IBBP |
|
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
|
Audio |
Encoding |
MPEG-1 Layer 2 |
Sampling rate |
48KHz,44.1KHz,32KHz |
|
Resolution |
24-bit |
