Digital TS multiplexer( 8 ASI input 2 ASI output)
- chengdu
- Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | DEXIN | |
| Model Number | NDS3101 |
Product Description
Specifications
Digital TS multiplexer( 8 ASI input 2 ASI output)8 ASI input multiplexer
2 ASI output multiplexer
NMS control

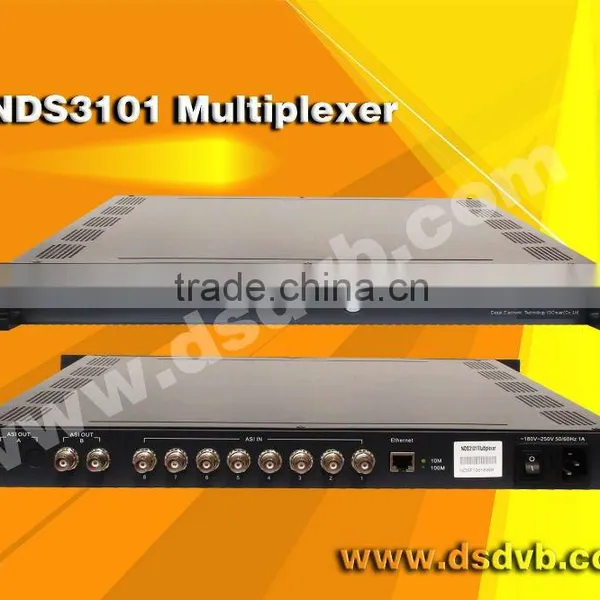

Digital TS multiplexer( 8 ASI input 2 ASI output)

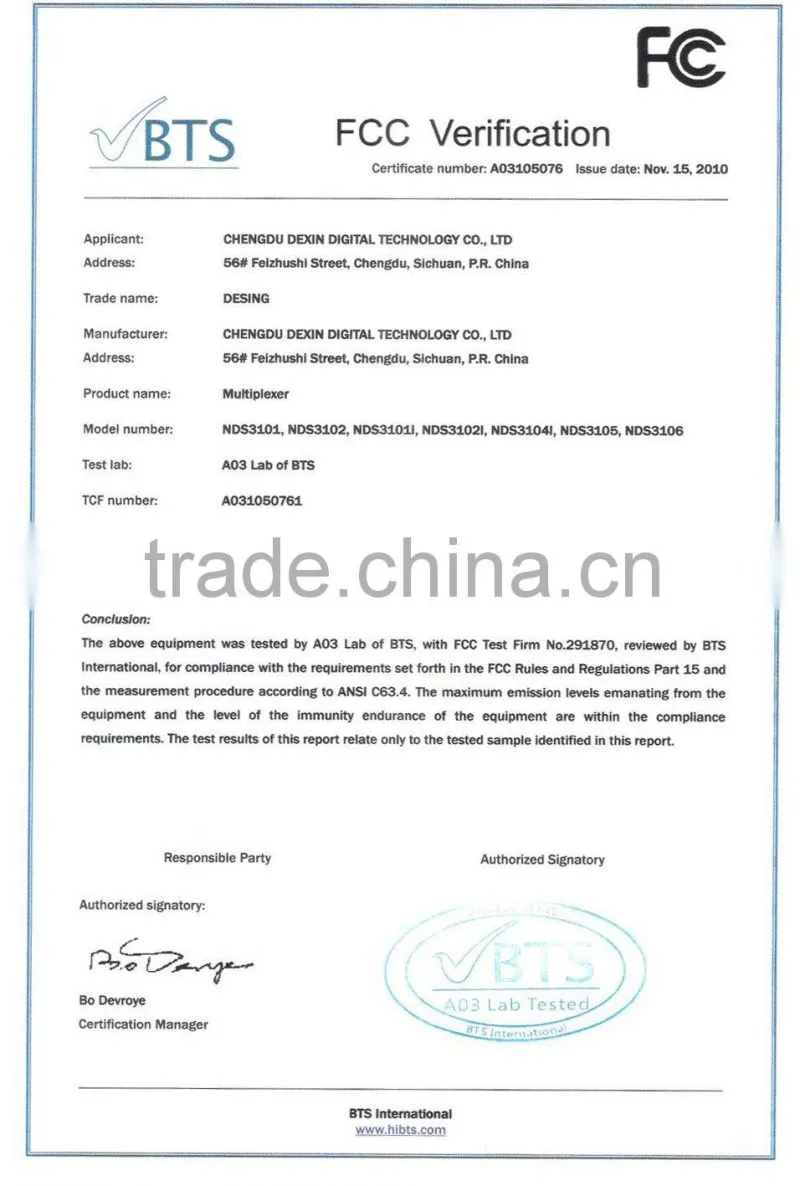

NDS3101 single multiplexer is an enhanced TS multiplexer for digital TV broadcasting head-end system. It can multiplex up to 8 channels ASI input MPTS into one output transport stream (MPTS). The multiplexer also can insert EPG (electronic program guide), CA (conditional access), data broadcasting into output TS. This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PSI/SI editing. The bit rate of input stream can reach up to 216Mbps, while the bit rate of output stream can reach 108 Mbps. Furthermore, the NDS3101 multiplexer is provided with half size LCD display and a 100M/10M Ethernet port for network management. Therefore, user can easily configure the settings of the device. In addition, the NDS3101 single multiplexer has gotten the CE and FCC certifications.
Input Interface | ASI | 8 ASI input ports (Maximum 216Mbps/Route) |
Re-multiplexing | MPEG-2 input TS stream re-multiplexing | |
PID Remapping | ||
PCR Correction | ||
Automatically Generating PSI/SI Table | ||
Output Interface | ASI | One multiplexing output ports (1X2 ASI out, one as mirror) |
Ethernet port | 10/100Mbps NMS Ethernet Port | |
Miscellaneous | Dimension | 44mm´482mm´360mm |
Environment | 0~45°C(Operation)-20~80(Storage) | |
Power | 220VAC±10%, 50Hz, 25W | |
