Help CenterCatv Single Output TS Multiplexer
Related Products
Specifications
1. MPEG2 TS multiplexer2. 8 ASi in , ASI out
catv single output TS multiplexer
Outline

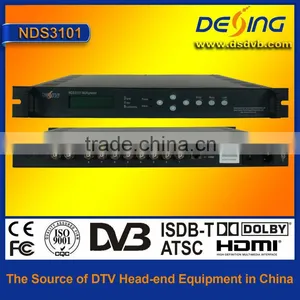

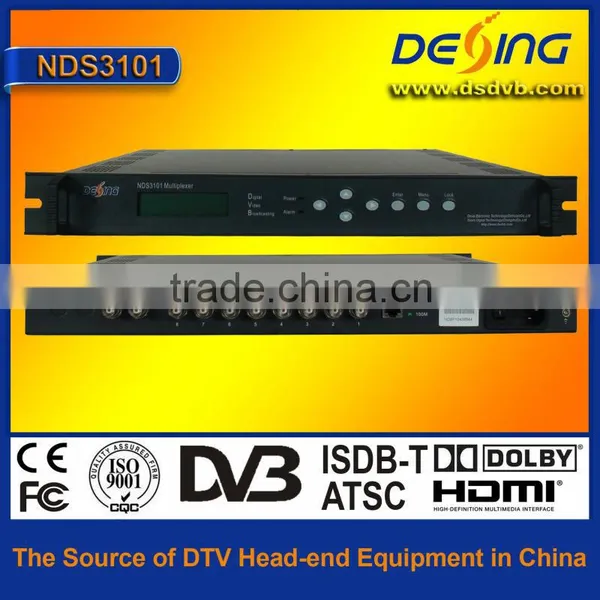

NDS3101 single output multiplexer is enhanced TS multiplexer for digital TV broadcasting head-end system. It can multiplex up to 8 channels ASI input MPTS into one output transport stream (MPTS). The multiplexer also can insert EPG (electronic program guide), CA (conditional access), data broadcasting into output TS. This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PSI/SI editing. The bit rate of input stream can reach up to 216Mbps, while the bit rate of output stream can reach 150Mbps. Furthermore, the NDS3101 multiplexer is provided with half size LCD display and a 100M/10M Ethernet port for network management. Therefore, user can easily configure the settings of the device.
Features
- Fully complying with ISO13818 and EN300468
- MPEG-2 TS re-multiplexing support
- 8 ASI input ports
- One multiplexing ASI output, maximum code rate up to 150Mbps
- PCR correction automatically support
- Program sorting support
- SDT table reflection support
- Generating PSI/SI information
- Supporting PCR correction and PID re-reflection
- extracting PSI/SI information from any route of SPTS/MTPS inputs
- Supporting the cascading connection between multiple equipments.
- Local and Remote network management support
Specifications
Input Interface |
ASI |
8 ASI input ports (Maximum 216Mbps/Route) |
Re-multiplexing |
MPEG-2 input TS stream re-multiplexing |
|
PID Remapping | ||
PCR Correction | ||
Automatically Generating PSI/SI Table | ||
Output Interface |
ASI |
One multiplexing output ports (1X2 ASI out, one as mirror) |
Ethernet port |
10/100Mbps NMS Ethernet Port |
|
Miscellaneous |
Dimension |
44mm´482mm´360mm |
Environment |
0~45°C(Operation); -20~80(Storage) |
|
power |
220VAC±10%,50Hz, 25W |
|
