satellital receiverDVB-C MPEG2 SD STB
DEXIN CAS integrated

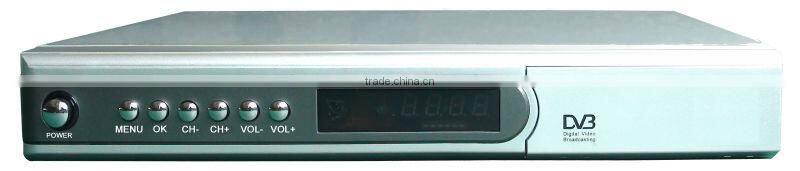

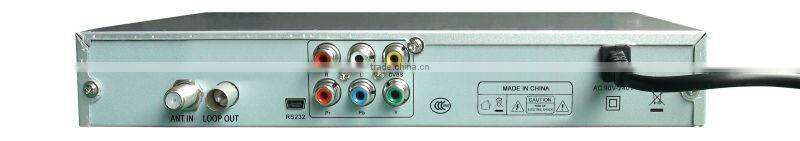

satellital receiver - DVB-C MPEG2 SD STB
Key Features
l DEXIN CAS integrated
l Fully DVB-C/MPEG-2 compliant
l MEPG-2 SD decoding (MP@ML)
l Novel-Supertv decoding system embedded
l Simultaneous viewing of one channel and recording it
l One touch record scheduling in EPG
l Support NIT auto search, list search, manual search
l Powerful program management feature and level restriction features for parental locking
l Support EPG Classified management
l 7 days Electronic Program Guide(EPG)
l Closed Caption, Teletext output with OSD
l Logical channel number (LCN) Supported
l 1 Smart Card embedded
l Software Upgrade via OTA & serial connection (RS-232C)
l Standby consumption less than 1W (True Standby)
Specifications
System Resources
CPU |
GX3001Q, 300 MHz |
Flash |
16Mbit |
DDR |
128Mbit |
Tuner& Demodulator
Tuner |
NXP18520 (On board) |
Constellation |
16/32/64/128/256QAM |
Frequency Range |
47MHZ-862MHZ |
Sensitivity |
35dBµV-80dBµV |
C/N |
≤23dB (64QAM, 6.952 Mbaud) |
Frequency Catch Range |
±150kHz |
Input reflect loss |
≥ 8dB |
Symbol Rate |
3.6~6.952 Mbaud |
Input Impedance |
75Ω |
Video Decoder
standard |
MPEG-2 MP@ML MPEG-1 |
Resolution |
720×576(PAL), 720×480(NTSC) |
Output |
CVBS/Y Pb Pr Component in RCA |
Input Impedance |
75Ω |
Aspect Ratio |
4:3/16:9 (auto) |
Audio Decoder
standard |
MPEG-1, MPEG-2 Layer-I/II, MP3 |
Mode |
Single / Dual mono / Stereo / Joint Stereo |
Sampling Rate |
32KHZ, 44.1KHZ, 48KHZ |
Output |
RCA |
Output Impedance |
600Ω |
General
Smart Card |
1pc cater for ISO7816 standard |
Power supply |
AC100~240V,48~52HZ |
Power consumption |
<5W |
Holding consumption |
<1W |
Anti-electricity durance |
3000V(AC spot value)keep 1 mins not breakdown |
Operation temperature |
0~40°C |
