Help Center4 in 4 DVB-S2 FTA Satellite Receiver
Related Products
Specifications
4 in 1 FTA IRD1 MPEG-2 and DVB-S standards compatible
2 4 to 4 IRD module design
3 4 inputs, 4 loops through output

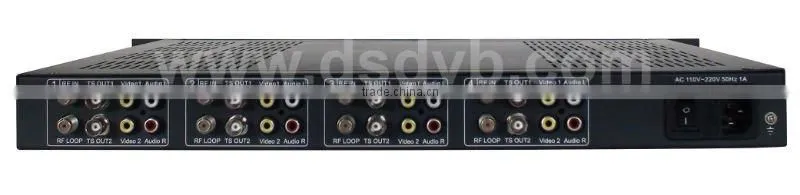

4 in 4 DVB-S2 FTA satellite receiver
Outline

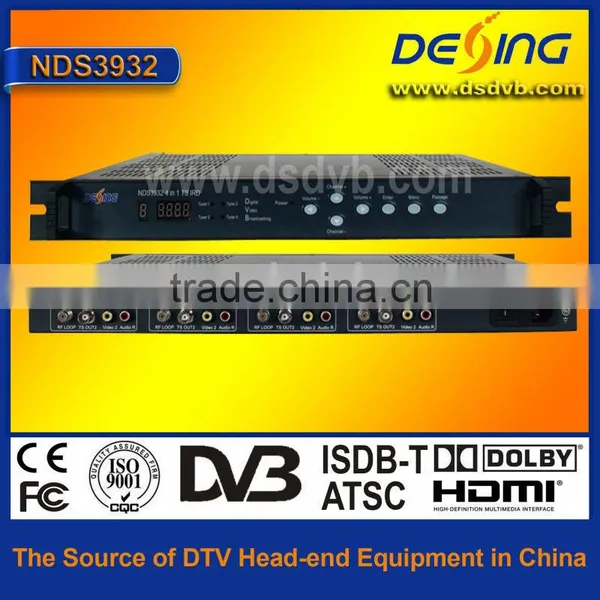

NDS3931 4 to 4 (4 in 1) FTA IRD is a cost effective integrated design of four DVB-S2/S(optional) IRD in one U rack space, every single set performs and operates like a single FTA ASI IRD with separate set of (2 ×CVBS, 1 ×Audio L, 1 ×Audio R) and dual (mirrored) ASI. This modularized design largely saves the cost of the transport freight, the space of frame rack and power consumption. In general, it greatly optimizes the functionality and structure of the normal standard-alone FTA IRD.
Features
MPEG2 and DVB-S standards compatible
User-friendly and easy operating menu
Editing all parameters of satellite and transponder
OSD TV image-test (DVB ETS 300 706) and subtitle supporting
Auto-switching PAL/NTSC
Auto-saving the latest channel
4 to 4 IRD module design, more compact in structure
Standard 19″1U structure
Specifications
Tuner IN |
4×input, 4×loop through output |
|
Input Level |
-65~-25dBm |
|
Input Frequency |
950~2150MHz |
|
Symbol Rate |
2-45Msymbols |
|
FEC Code Rate |
1/2, 2/3, 3/4, 5/6, 7/8QPSK |
|
Video OUT |
4×CVBS (RCA interface) |
|
Audio OUT |
4×Audio (L/R) |
|
ASI OUT |
4×2 BNC interface |
|
|
Miscellaneous |
Dimension |
44mm×482mm×410mm |
Temperature |
0~45°C(Operating), -20~80°C(Storage) |
|
Power |
AC 90~220V, 50/60Hz, 25W |
|
