DVB-S satellite receiver1. Four single IRD in 1U case , save space and cost
2. MPEG2 , DVB-S full compatible
3. 4 ASI input

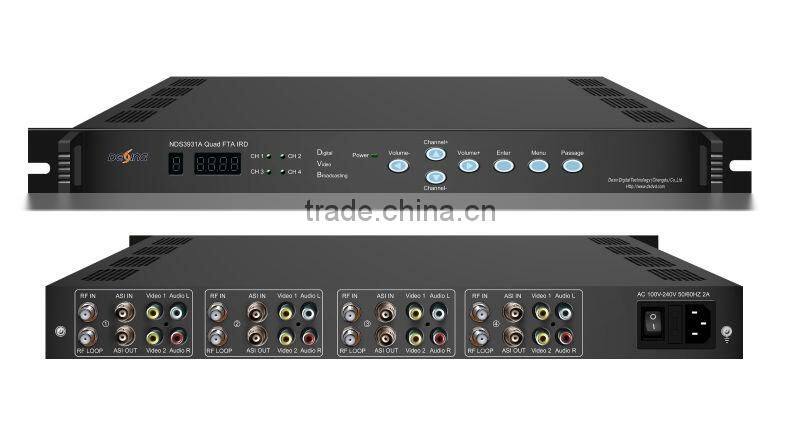

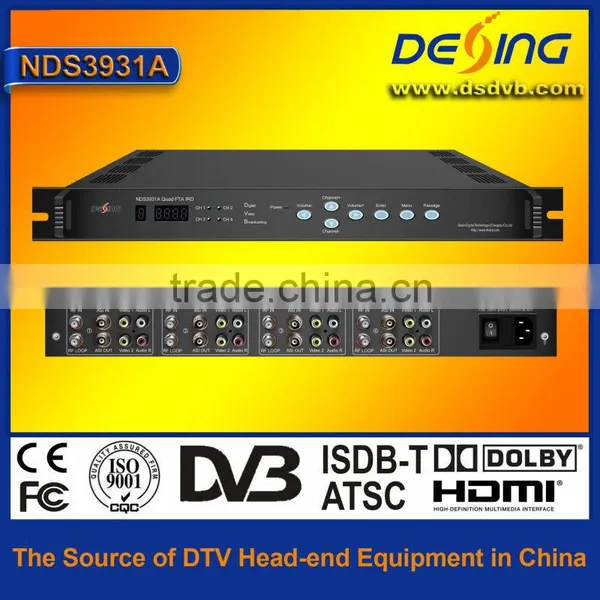

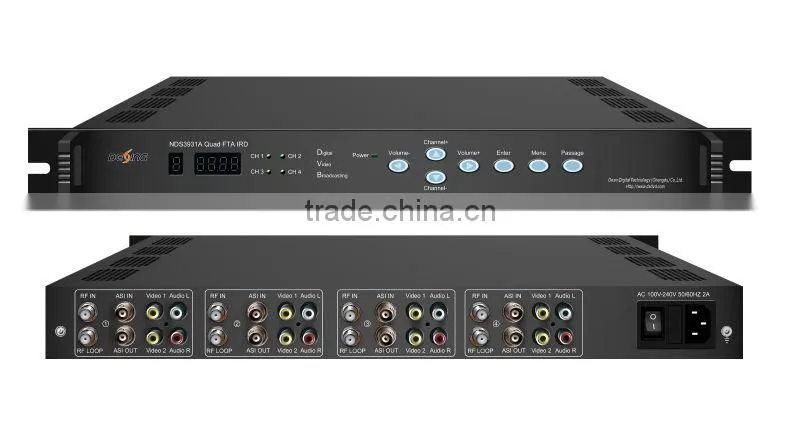

Quad FTA DVB-S satellite receiver
Brief Introduction
NDS3931A Quad FTA IRD is DEXIN’s new cost effective design integrating 4 DVB-S IRDs and 4 TS decoders in one standard Unit rack space. Every single set can perform as a single FTA Satellite Receiver with MPEG-2 TS decoder. After demodulating or decoding, it outputs separate A/V signal and TS over ASI port. This modularized design largely saves the cost of the transport freight, the space of frame rack and power consumption. In general, it greatly optimizes the functionality and structure of the normal standard-alone FTA Satellite Receiver, providing users more convenient operating and maintenance experience.
Key Features
l 4 separate modules in 1U case, each module integrates an IRD and a decoder
l DVB-S Tuner input
l User-friendly and easy operating menu
l Editing all parameters of satellite and transponder
l OSD TV image-test (DVB ETS 300 706) and subtitle supporting
l Auto-switching PAL/NTSC
l Auto-saving the latest channel
l 4 to 4 Satellite Receiver module design, more compact in structure
l Standard 19″1U structure
Technical Specifications
ASI Input |
4×BNC interface |
|
Tuner Input |
Interface |
4×input, 4×loop through output |
Input Level |
-65~-25dBm |
|
Input Frequency |
950~2150MHz |
|
Symbol Rate |
2-45Msps |
|
FEC Code Rate |
1/2, 2/3, 3/4, 5/6, 7/8QPSK |
|
Video OUT |
4×2 CVBS (RCA interface) |
|
Audio OUT |
4×Stereo Audio (L/R) |
|
ASI OUT |
4×BNC interface |
|
Miscellaneous |
Dimension |
44mm×482mm×410mm |
Temperature |
0~45°C(Operating), -20~80°C(Storage) |
|
Power |
AC 90~220V, 50/60Hz, 25W |
|
Principle Chart
