Help CenterNDS397X DVB-T2 HD IRD
Related Products
Specifications
1. DVB-T2 HDIRD support LCD and small monitor window in the front panel2.MPEG-2 & MPEG-4 decoding,Re-multiplexer support
Professional DVB-T2 HD IRD
Outline

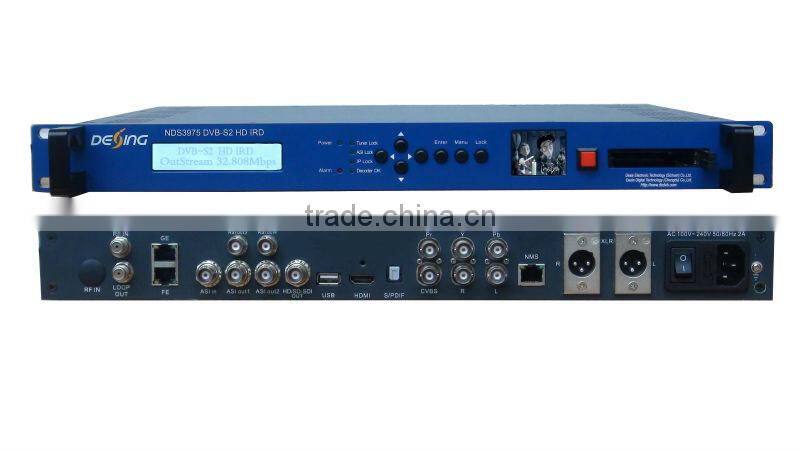

NDS397X/NDS399X HD IRD is Dexin’s new design IRD with LCD video monitor equipped on the front panel. It can receive signals from tuner (DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T optional), ASI and IP sources. After multiplexing and de-encryption with CAM module, it gives content out through ASI, IP as well as various video/audio interfaces. Its video/audio outputs support professional HD/SD-SDI, YPbPr, HDMI, stereo balanced audio, stereo unbalanced audio and S/PDIF digital audio and CVBS, which can greatly satisfy the professional users’ needs. With the CAM slot (CI/CI+) support, The NDS397X/NDS399X can support one channel (Tuner, ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS/SNMP software or Webpage-based NMS. Moreover, users can choose to have an optional ASI output which can pass through the encryption data source directly from tuner.
Features
l Support DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T RF Input
l Support LCD display for decoding video
l Various tuner standard available
l Support MPEG-2 & MPEG-4 video decoding
l Support AC3 pass through
l Re-multiplexer embedded
l Support Tuner, IP, ASI Input at the same time
l Support IP, ASI, Decoding output at the same time
l Support 8xSPTS/32xSPTS and1 IP MPTS output
l Support CAM card insert (CI/CI+)
l Support CC (Closed Caption)
l Support Front Panel and NMS/SNMP network management and Web management

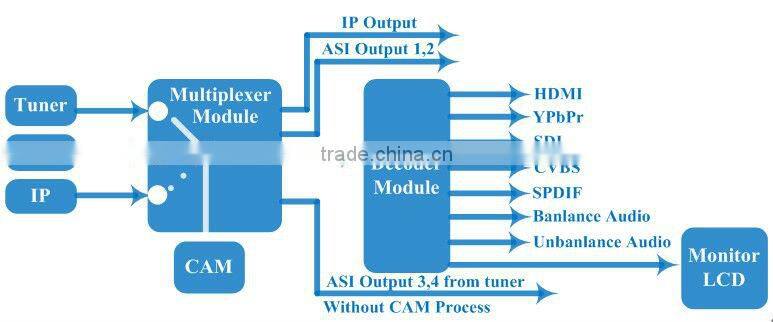

Principle Chart
Specifications
Input Interface |
Tuner |
1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional) DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DMB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth ATSC-T: 54MHz~858MHz, 6M bandwidth DVB-T2: 44MHz ~1002 MHz, 6/7/8 M bandwidth |
|||
ASI |
1 ASI IN(support 188/204 package format) |
||||
IP |
1 IP(100M, RJ45 Port) UDP |
||||
Output |
ASI Output |
2 ASI output(after multiplexer) |
|||
2 ASI output(tuner input pass through) | |||||
|
IP output (UDP, RTP/RTSP) |
1 MPTS output |
||||
8 SPTS output |
NDS397x only |
||||
32 SPTS output |
NDS399x only |
||||
Video Output |
1xCVBS(BNC): 576i-25fps, 480i-29.97fps |
||||
1xYPbPr(BNC): 1080i-25, 29.97, 30fps; 720p-50, 59.94fps | |||||
1xHD/SD-SDI(BNC): 1080i-25, 29.97, 30fps; 720p-50, 59.94fps; 576i-25fps; 480i-29.97fps | |||||
1 x HDMI: 1080i-25, 29.97, 30fps; 720p-50, 59.94fps | |||||
Audio Output |
Stereo unbalanced audio: BNC interface Stereo balanced audio: XLR interface Digital audio: SPDIF |
||||
Video Decoding |
MPEG-2, MPEG-4 |
||||
Audio Decoding |
MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC |
||||
NMS Port |
Ethernet Port |
10/100M |
|||
Protocols |
NMS: TCP/IP |
||||
System |
Management: front panel (LCD + Keyboard); Network (NMS/SNMP); Web-based NMS Management |
||||
English and Chinese interface conversion | |||||
|
Ethernet port for CPU/FPGA upgrade USB port for decoder upgrade | |||||
LCD Monitor for decoding video | |||||
Miscellaneous |
Dimensions |
482mm*455mm*44.5mm ( L×W×H) |
|||
Approx weight |
3.2kg |
||||
Power |
<20W(Max) |
||||
Temperature |
0~45°C(Operating), -20~80°C(Storage) |
||||
Order Information:
NDS3971/ NDS3991 DVB-C HD IRD
NDS3972/ NDS3992 DVB-S HD IRD
NDS3973/ NDS3993 DMB-T HD IRD
NDS3974/ NDS3994 DVB-T HD IRD
NDS3975/ NDS3995 DVB-S2 HD IRD
NDS3976/ NDS3996 ISDB-T HD IRD
NDS3977/ NDS3997 ATSC HD IRD
NDS3978/ NDS3998 DVB-T2 HD IRD
