DVB-C, T/T2, S/S2 sd IRD with CI slot2 independ CVBS output
ASI/IP (8 SPTS) output
plugable module
support BISS descramble
NDS356X SD IRD with CI Slot
DVB-C, T/T2, S/S2 RF to CVBS
Demodulation Module = 2*RF/Loop out + 2*CAM + 2*Smartcard
Key Features
n Demodulation + descrambler + decoder modules in one box
n 2 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
n 1 ASI & 1 IP (UDP) input for re-mux
n One CAM can decrypt multiple programs from Tuners/ASI/IP
Support BISS descrambling
n 2 separate CVBS video output
n IP (1 MPTS & 8 SPTS out) over UDP and RTP/RTSP output; ASI out
n Support maximum 128 PID mapping per input
n Pluggable and changeable demodulator and decoder modules
n LCD display, Remote control and Firmware, web NMS management
n Updates via web
Product Introduction

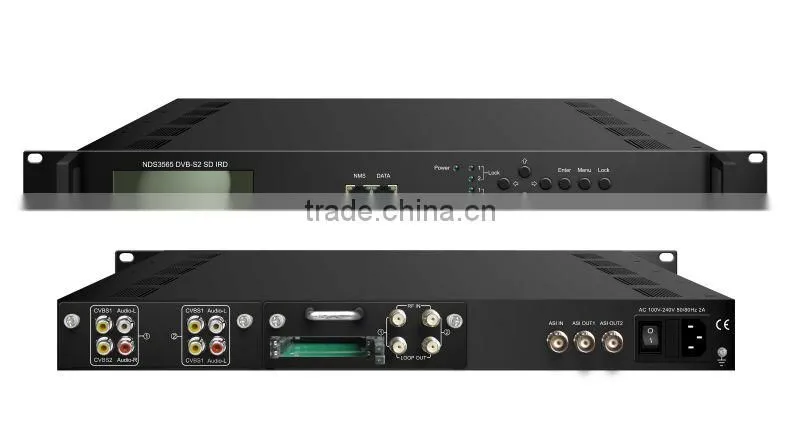

NDS356X SD IRD is DEXIN’s all-in-one device which integrates demodulation, de-scrambler and decoding (DVB-C, T/T2, S/S2 optional) in one case to convert RF signals into analogue video (CVBS) output.
It is a 1-U case which supports 2 tuner inputs. The two CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers’ various requirements, NDS356X is also equipped with 1 ASI input, and output with 2 ASI ports and IP port.

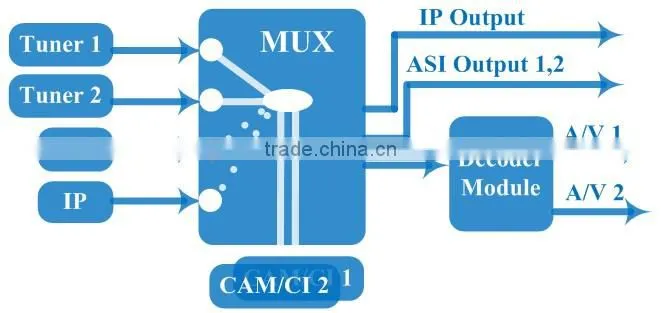

Principle Chart
Technical Specifications
Input
2 x RF (DVB-C, T/T2, S/S2 optional), F type |
1×ASI input for re-mux, BNC interface |
1xIP input for re-mux (UDP) |
Tuner Section
DVB-C | |
Standard |
J.83A(DVB-C), J.83B, J.83C |
Input Frequency |
47 MHz~860 MHz |
Constellation |
16/32/64/128/256 QAM |
DVB-T/T2 | |
Input Frequency |
44MHz ~1002 MHz |
Bandwidth |
6/7/8 M bandwidth |
DVB-S
Input Frequency |
950-2150MHz |
|
Symbol rate |
2-45Msps |
|
Signal Strength |
- 65- -25dBm |
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
DVB-S2 | ||
Input Frequency |
950-2150MHz |
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
Constellation |
QPSK, 8PSK |
|
Output
IP Output |
1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
2×ASI |
BNC interface |
Video Output |
Video Interface: 2xCVBS (RCA) Audio Interface: 2 x Stereo/mono (RCA) Resolution: PAL 576i, NTSC 480i Video Decode: MPEG-2 MP@ML Audio Decode: MPEG 1 Layer II |
System
Local interface |
LCD + control buttons |
Remote management |
Web NMS Management |
Language |
English |
General
Power supply |
AC 100V~240V |
Dimensions |
482*300*44.5mm |
Weight |
3 kgs |
Operation temperature |
0~45°C |
System Connection Sample
|
Ordering Guide NDS356X, ‘X’ should be interpreted as different digits which indicate tuners of different standard. ü NDS3561 DVB-C SD IRD ü NDS3564 DVB-T/T2 SD IRD ü NDS3565 DVB-S/S2 SD IRD |
