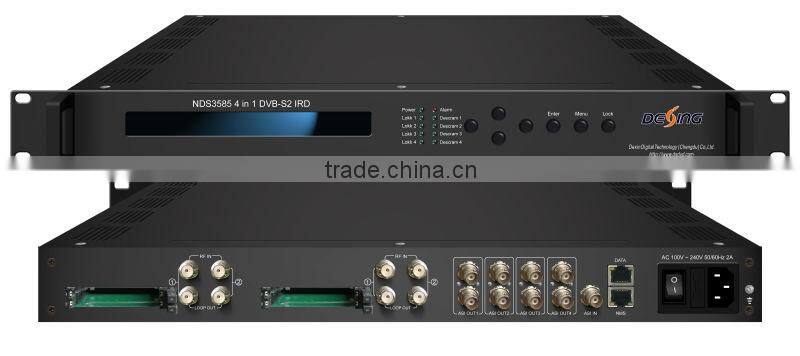

NDS358X 4-in-1 DVB-T2 Receiver
DVB-C, T/T2 S/S2 RF → ASI/IP
Product Introduction
NDS358X IRD is DEXIN’s new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.

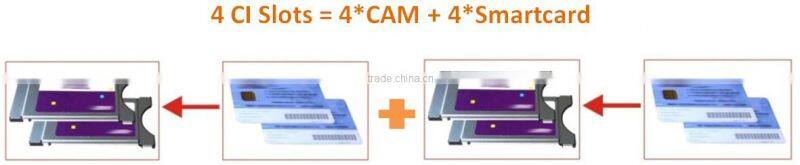

It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
To meet customers’ various requirements, NDS358X is also designed to re-mux programs from any input, and output TS over 48 SPTS UDP .
Key Features
n 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
n 1 ASI & 4 IP (UDP) input for re-mux
n One CAM can decrypt multiple programs from Tuners/ASI/IP
n IP (48 SPTS) over UDP and RTP/RTSP output;
n 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
n Support maximum 128 PID mapping per input
n LCD display, Remote control and Firmware, web NMS management
n Updates via web
n Best quality and breakthrough price

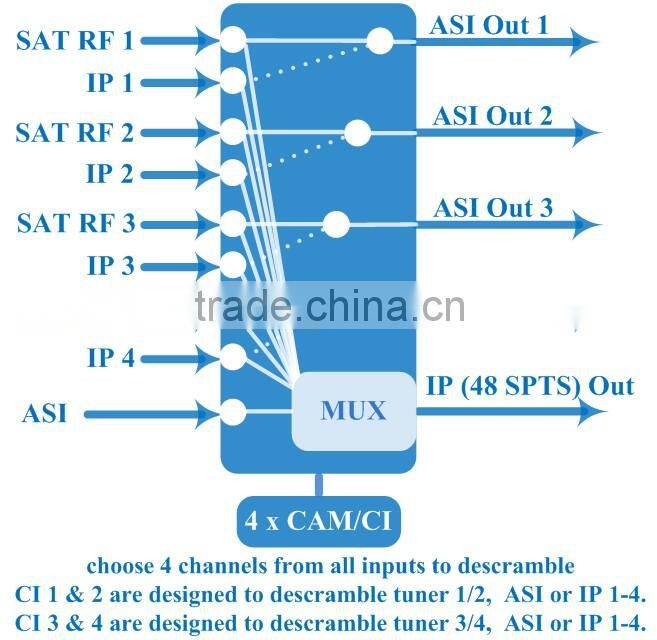

Principle Chart
Technical Specifications
Input
4x RF (DVB-C, T/T2, S/S2 optional), F type |
1×ASI input for de-mux, BNC interface |
4xIP input for de-mux (UDP) |
|
Tuner Section
DVB-C | |
Standard |
J.83A(DVB-C), J.83B, J.83C |
Input Frequency |
47 MHz~860 MHz |
Constellation |
16/32/64/128/256 QAM |
DVB-T/T2 | |
Input Frequency |
44-1002 MHz |
Bandwidth |
6M, 7M, 8M |
DVB-S
Input Frequency |
950-2150MHz |
|
Symbol rate |
1~45Mbauds |
|
Signal Strength |
- 65- -25dBm |
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
DVB-S2 | ||
Input Frequency |
950-2150MHz |
|
Symbol rate |
QPSK/8PSK 1~45Mbauds |
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
Constellation |
QPSK, 8PSK |
|
Output
IP |
48*SPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface (unicast/multicast) 4*MPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one) |
ASI |
4 groups BNC interface, for RF or IP in passthrough (one-to-one) |
System
Local interface |
LCD + control buttons |
Remote management |
Web NMS Management |
Language |
English |
General
Power supply |
AC 100V~240V |
Dimensions |
482*400*44.5mm |
Weight |
3 kgs |
Operation temperature |
0~45℃ |

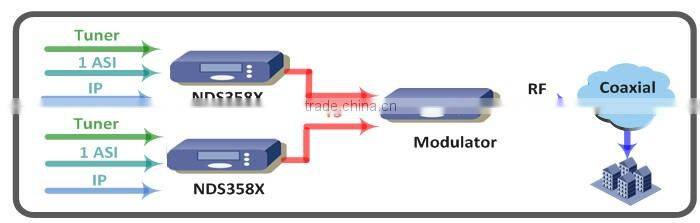

System Connection Sample
|
Ordering Guide
NDS358X, ‘X’ should be interpreted as different digits which indicate tuners of different standard.
ü NDS3581 DVB-C IRD
ü NDS3584 DVB-T/T2 IRD
ü NDS3585 DVB-S/S2 IRD
|
