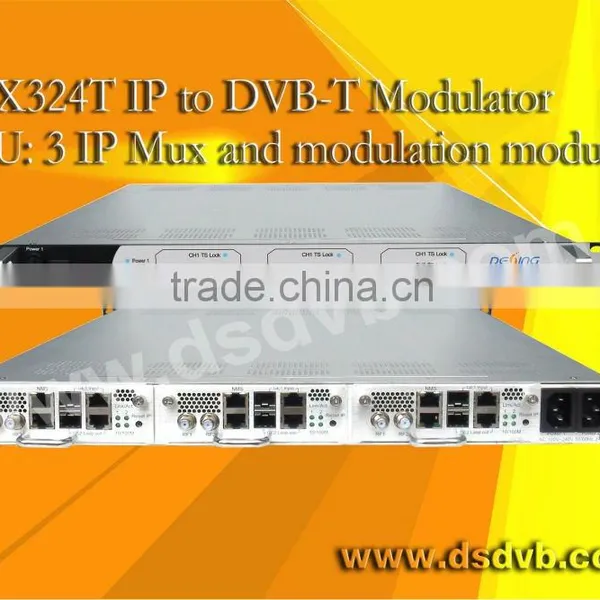

DX324T IP Mux and modulation module is the latest generation mux-modulating all-in-one device. The modular design of this device makes each of its daughter cards stand-alone when operating. Each daughter card can receive the UDP format TS through GE port, and support up to 256 different input address (IP address and port number). It’s like the all-in-one device combined with 4 multiplexers, (256 channels inputs) and 4 DVB-T modulators, which can output 4 carriers (40M~960M) through the two RF output interfaces. Additionally, 1U chassis supports up to 3 modules (12 channels mux-modulation) while the 4U chassis supports up to 12 modules (48 channels mux-modulation). This DX324T IP Mux and modulating module has excellent integrated level, powerful performance and low cost, which is especially adequate for the new generation IP CATV system.
Features
Dual power supply
1 GE input, RJ45interface or SFP
Supports up to 256 channels TS input over UDP, MPTS or SPTS
Supports unicast and multicast, supports IGMP v2v3
Max 840Mbps for all input
Supports 4 channels multiplexing
Supports accurate PCR adjusting
Supports PID filtering, remapping and PSI/SI editing
Supports up to 180 PIDS remapping per channel
4 DVB-T carriers output ,compliant to ETSI EN300 744 standard
RF output frequency range: 40~860Mhz, 1Khz stepping
RF output level: -16~0dbm (per DVB-T carrier), 0.5db stepping
Excellent RF performance, MER≥40db
Support SNMP
Modular design,1U chassis support 3 modules , 4U chassis support 12 modules

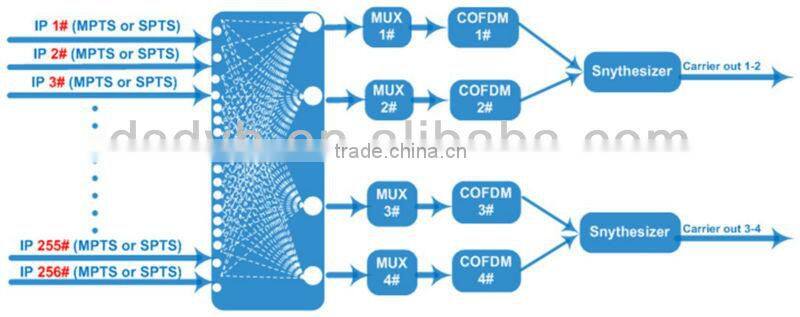

Principle Chart
Specifications
Input |
Interface |
1GE(RJ45) or 1 SFP input port, hot backup |
Transport Protocol |
TS over UDP, unicast and multicast, IGMP V2/V3 |
|
Transmission Code |
Max 840Mbps for all channels |
|
MUX |
Input Channel |
256 |
Output Channel |
4 |
|
Max PIDs |
180 per channel |
|
Functions |
PID remapping (auto/manually optional) |
|
PCR accurate adjusting | ||
PSI/SI table automatically generating | ||
|
Modulation Parameters |
Channel |
4 |
Modulation Standard |
ETSI EN300 744 |
|
Constellation |
QPSK/16QAM/64QAM |
|
Trans mode |
2K/4K/8K |
|
FEC |
1/2,2/3,3/4,5/6,7/8 |
|
RF Output |
Interface |
2 F typed output port (per port 2 adjacent carriers) |
RF Range |
40~860MHz, 1kHz stepping |
|
Output Level |
-16~0dbm (per DVB-T carrier), 0.5db stepping |
|
MER |
≥ 40dB |
|
ACLR |
-55 dBc |
|
System |
Network management software (SNMP) supporting |
|
General |
Demission (WxLxH) |
630mm*440mm*44.5mm |
Weight |
9kg |
|
Temperature |
0~45°C(operation),-20~80°C(storage) |
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Consumption |
15.4W |
|
Order information:
|
DX328 |
DX318 |
DX308A |
DX328A |
DX324T |
multiplexing |
l |
l |
l |
l |
l |
DVB scrambling |
l |
l |
|
|
|
QAM×8 modulation |
l |
|
l |
|
|
8VSB×8 modulation |
|
|
|
l |
|
DVB-T×4 modulation |
|
|
|
|
l |
Send Inquiry to This Supplier
