Specifications
256 IP in, 8 Mux, 8 carriers out each module1U with 3 modules
dual power supply

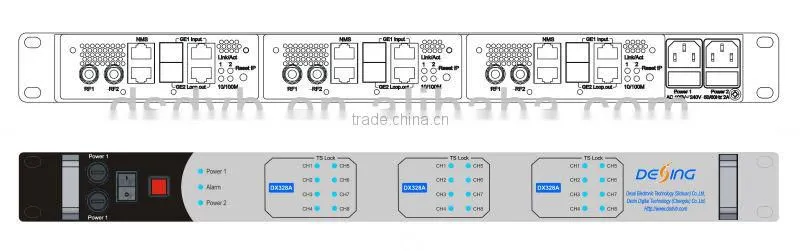

Outline

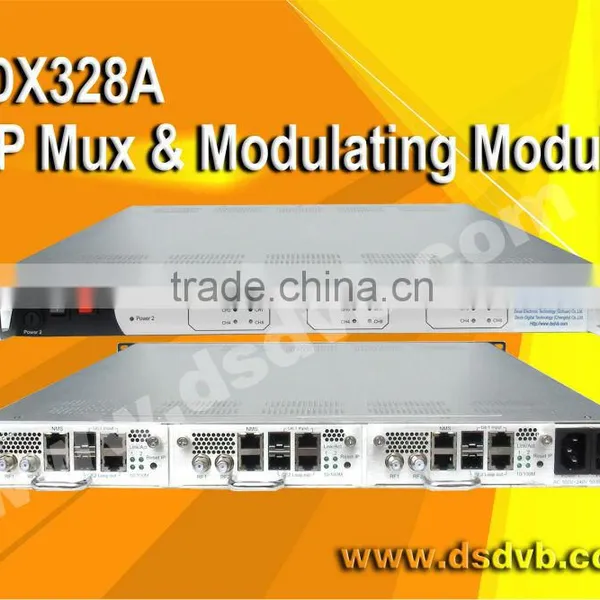

DX328A 8 in 1 IP to ATSC modulator is the latest generation Mux-modulating all-in-one device. Its modular design with each daughter card containing 8 multiplexing modules and 8 ATSC-T modulating modules makes each daughter card able to work stand-alone and receive the UDP format TS through GE port. It can support up to 256 different input address (IP address and port number) and output adjacent channel carrier (40M~860M) through the two RF output interfaces. Additionally, 1U chassis supports up to 3 cards (24 channels mux-modulation) while the 4U chassis supports up to 12 modules (96 channels mux-modulation).
This DX328A 8 in 1 IP to ATSC modulator has adopted slot structure to allow maximum 3 DX328A cards to insert one device simultaneously. To draw a conclusion, its excellent integrated level, powerful performance and low cost make it adequate for the new generation CATV system.
Features
Dual power supply
1 GE input, RJ45 interface or SFP
Supports up to 256 channels TS over UDP, MPTS or SPTS
Supports unicast and multicast, supports IGMP v2v3
Max 840Mbps for all input
Supports 8 channels re-multiplexing and MPTS/SPTS multiplexing
Supports accurate PCR adjusting
Supports PID filtering, remapping
Supports up to 180 PIDS remapping per channel
8 adjacent ATSC-T 8VSB carriers output ,compliant to ATSC A/53 standard
RF output frequency range: 40~860Mhz, 1Khz stepping
RF output level: -16~0dbm(per 8VSB carrier), 0.5db stepping
Excellent RF performance, MER≥40db
Support NMS/SNMP management
Modular design,1U chassis support 3 modules , 4U chassis support 12 modules

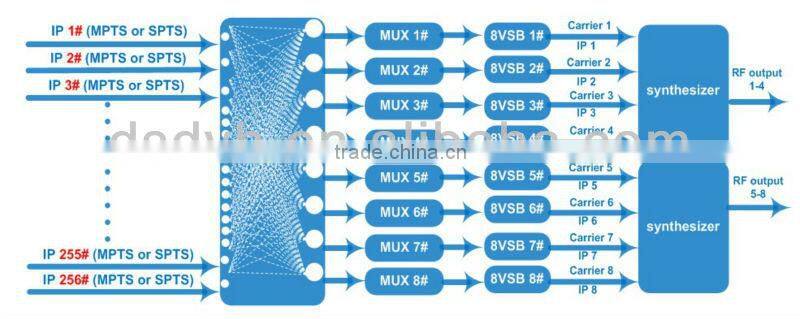

Principle Chart
Specifications
Input |
Interface |
1GE (RJ45) or 1 SFP input port, hot backup |
Transport Protocol |
TS over UDP, unicast and multicast, IGMP V2/V3 |
|
Transmission Code |
Max 840Mbps for all channels |
|
MUX |
Input Channel(IP) |
256 |
Output Channel |
8 |
|
Max PIDs |
180 per channel |
|
Functions |
PID remapping(auto/manually optional) |
|
PCR accurate adjusting | ||
PSI/SI table automatically generating | ||
|
Modulation Parameters |
Channel |
8 |
Modulation Standard |
ATSC A/ 53 |
|
Constellation |
8VSB |
|
FEC |
RS (208 188) +Trellis |
|
RF Output |
Interface |
2 F typed output port (per port 4 adjacent carriers), 50Ω impedance |
RF Range |
40~860MHz, 1kHz stepping |
|
Output Level |
-16~0dbm(per 8VSB carrier), 0.5db stepping |
|
MER |
≥ 40dB |
|
ACLR |
-55 dBc |
|
System |
Network management software (NMS/SNMP) supporting |
|
General |
Demission (WxLxH) |
630mm*440mm*44.5mm |
Weight |
9kg |
|
Temperature |
0~45°C(operation), -20~80°C (storage) |
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Consumption |
15.4W |
|
Order information:
|
DX328 |
DX318 |
DX308A |
DX328A |
DX324T |
multiplexing |
l |
l |
l |
l |
l |
DVB scrambling |
l |
l |
|
|
|
QAM×8 modulation |
l |
|
l |
|
|
8VSB×8 modulation |
|
|
|
l |
|
DVB-T×4 modulation |
|
|
|
|
l |
