DVB-S2 to DVB-T converterDemodulation+modulation+mixer module
2*2 QPSK S/S2 Tuner inputs
2*2 CAM with 2*2 CI card
DVB-S2 to DVB-T modulator --
4 * QPSK S/S2 to DVB-T transmodulator
Product Overview

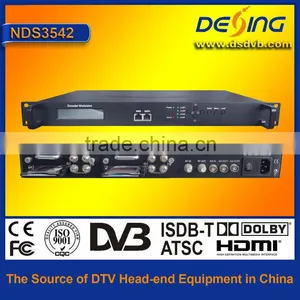

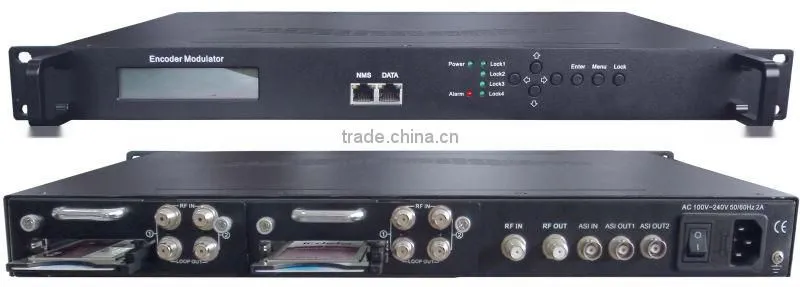

NDS3542 series products are DEXIN’s all-in-one devices which integrate Demodulation, trans-mux and modulation (DVB-C, DVB-T, ISDB-T or ATSC) to convert satellite signals into digital RF output. Its pluggable structure design greatly facilitates the change of modules (RF/HDMI/CVBS/SDI/YPbPr/…) as needed. The unit in this sheet is a 1-U case which supports 4 DVB-S/S2 RF inputs with 4 CAMs accompanied. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
To meet customers’ various requirements, NDS3542 is also equipped with 1 ASI input, and output with 2 ASI ports and 1 UDP IP port.
The output modulated signals are to be received by TVs, STB and etc with corresponding standard.

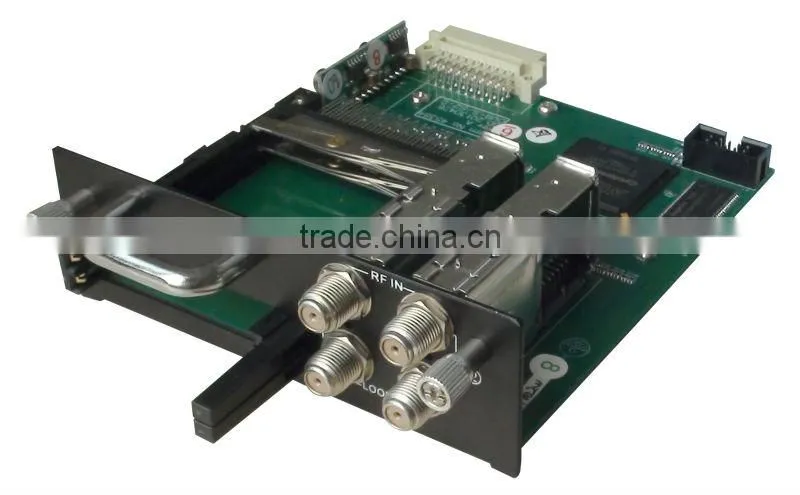

Pluggable Demodulating Module with 2*CAM accompanied

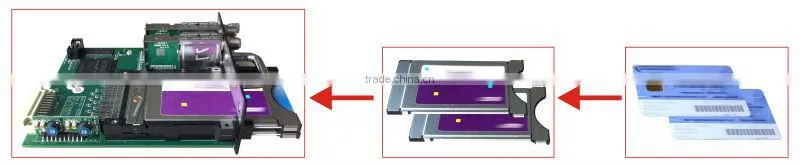

1*Module = 2*RF/Loop out + 2*CAM + 2*Smartcard
Key Features
n Demodulation + modulation + mixer modules in one box
n 2*2 QPSK S/S2 Tuner inputs
n 2*2 CAM with 2*2 CI-slot, one CAM can decrypt multiple programs
n ASI in/out with re-mux
n 1 IP output
n RF mixed in, RF mixed out (DVB-T)
n LCN support (Logical Channel Number)
n Excellent modulation quality: MER≥42dB
n LCD display, Remote control and Firmware, web NMS management
n Updates via web
n Best quality and breakthrough price

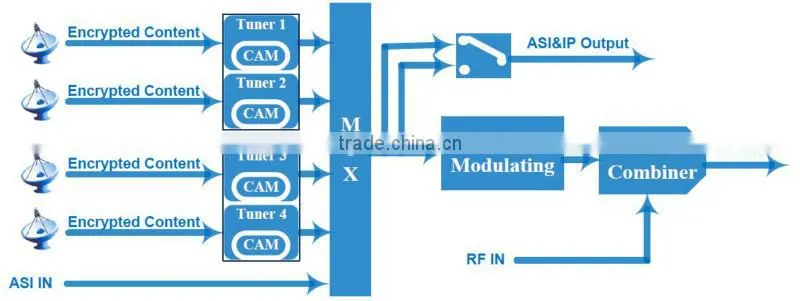

Principle Chart
Technical Specifications
Input
4xDVB-S/S2 RF (HDMI/SDI/ YPbPr/CVBS /… optional) |
1×ASI input for re-mux, BNC interface |
1×RF input for combiner |
Tuner Section
QPSK-S
Input Frequency |
950-2150MHz |
|
Symbol rate |
2-45Msps |
|
Signal Strength |
- 65- -25dBm |
|
FEC Demodulation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
QPSK-S2 | ||
Input Frequency |
950-2150MHz |
|
Symbol rate |
2-45Msps |
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
Input Impedance |
75Ω |
|
Demodulation Mode |
QPSK, 8PSK |
|
Frequency Stepping |
500 KHz |
|
DVB-T Modulator Section
Standard |
EN300744 |
FFT mode |
2K, 8K |
Bandwidth |
6M, 7M, 8M |
Constellation |
QPSK, 16QAM, 64QAM |
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
MER |
≥42dB |
RF frequency |
30~960MHz, 1KHz step |
RF out |
COFDM DVB-T out |
RF output level |
-30~ -10dbm (81~97 dbµV), 0.1db step |
Stream Output
1*RF |
2×ASI outputs, BNC interface |
|
MPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast) |
Interface
Local interface |
LCD + control buttons |
Remote management |
Web NMS Management |
Language |
English |
General
Power supply |
AC 100V~240V |
Dimensions |
482*300*44.5mm |
Weight |
4 kgs |
Operation temperature |
0~45°C |
