Product Details
| Place of Origin: | Sichuan, China | Brand Name: | DEXIN | Model Number: | NDS3543 |
Product Description
Specifications
SDI to DVB-S2 encoder modulatorMpeg2 HD & H.264 HD encode, DVB-S2 modulation
support BISS
pluggalble and changable board

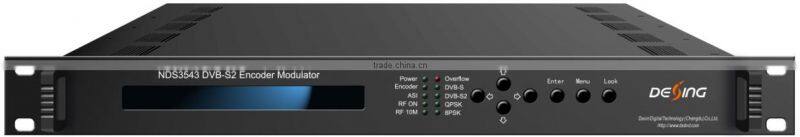

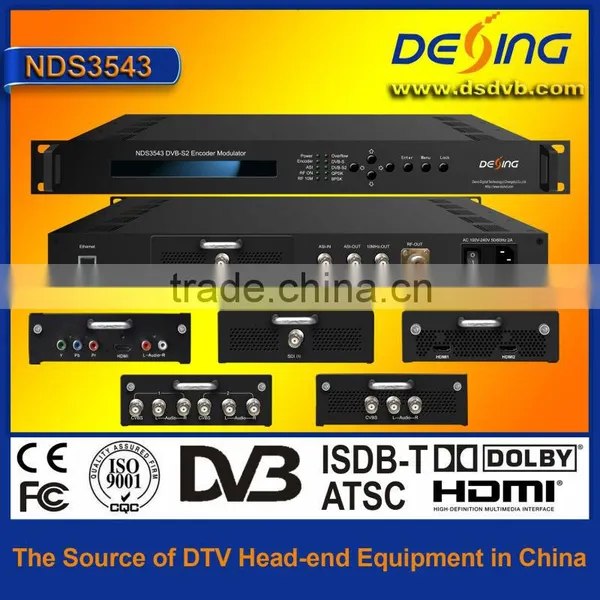

NDS3543 HDMI/YPbPr/CVBS/ SDI to DVB-S2 Encoder Modulator
Product Overview
NDS3543 DVB-S/S2 Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel ASI input for program re-mux. It outputs ASI and DVB-S/S2 RF in the same time.
The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, NDS3543 is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Key Features
nMPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
nCVBS/SDI/HDMI/YPbPr…signals in & 1*ASI in
nSupport DVB-S/S2 RF output and ASI output
nLCN support (Logical Channel Number)
nOutput Frequency: 950-2150MHz
nSymbol Rate: 0.05-20Msps
nLow latency achieved (CVBS Encoding modules excluded)
nSupport BISS fucntion
nSupport 10MHz reference clock
nSupport Web NMS and front panel LCD & Keyboard control
nUpgrade device through web NMS

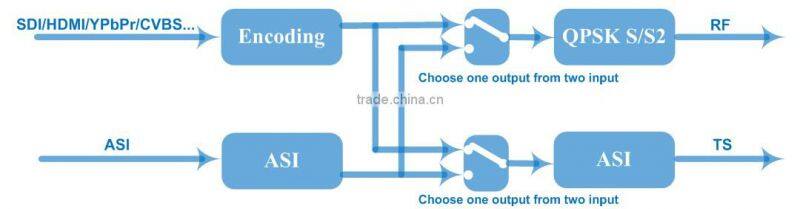

Principle Chart

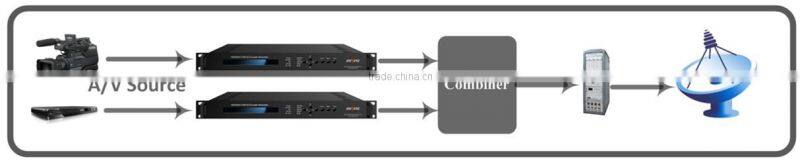

System Connection Sample
Technical Specifications

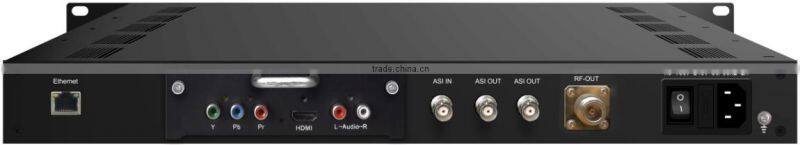

HDMI/YPbPr/CVBS 3-in-1 Encoding Input
Video (HDMI) | |
Encoding | MPEG2; MPEG4 AVC/H.264 |
Interface | HDMI*1 |
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
Audio (HDMI) | |
Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
Interface | HDMI*1 |
Sample rate | 48KHz |
Bit rate | 64/96/128/ 192/256/320kbps |
Video (YPbPr/CVBS) | |
Encoding | MPEG2; MPEG4 AVC/H.264 |
Interface | YPbPr*1/CVBS *1 |
Resolution | CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
Audio (L/R) | |
Encoding | MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
Interface | 1*Stereo/2*mono |
Sample rate | 48KHz |
Bit rate | 64/96/128/ 192/256/320kbps |

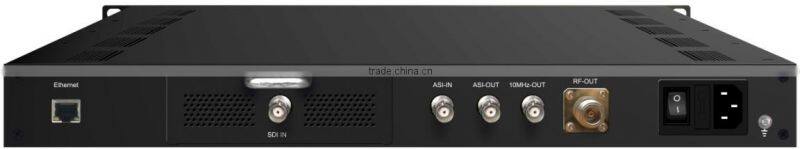

Single SDI Encoding Input
Video
Encoding | MPEG2; MPEG4 AVC/H.264 |
Input | SDI*1 |
Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
encoding | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
Sample rate | 48KHz |
Bit rate | 64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps
|
Single HDMI Encoding Input
Video
Encoding | MPEG2; MPEG4 AVC/H.264 |
Input | HDMI*1 |
Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
encoding | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
Sample rate | 48KHz |
Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |

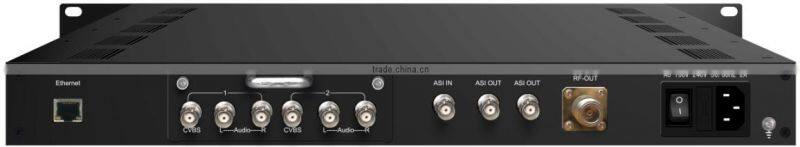

Dual CVBS Encoding Input
Video
Encoding | MPEG-2 MP@ML(4:2:0) |
Input | CVBS*2 |
Resolution | 720*576 (PAL), 720*480 (NTSC) |
Audio
encoding | MPEG1 Layer II |
Input | Unbalanced 1 stereo/2 Mono |
Sample rate | 48KHz |
Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |

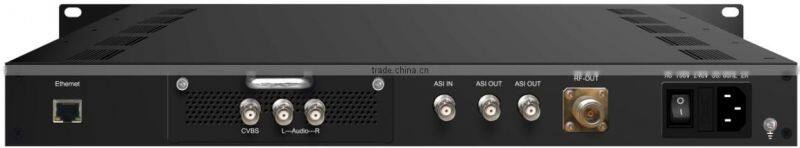

Single CVBS Input Encoding
Video
Encoding | Option 1: MPEG-2 MP@ML(4:2:0); Option 2: H.264 High Profile Level 3.0 (SD) |
Input | CVBS*1 |
Resolution | 720*576 (PAL), 720*480 (NTSC) |
Audio
encoding | MPEG1 Layer II |
Input | Unbalanced 1 stereo/2 Mono |
Sample rate | 48KHz |
Bit rate | 64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |

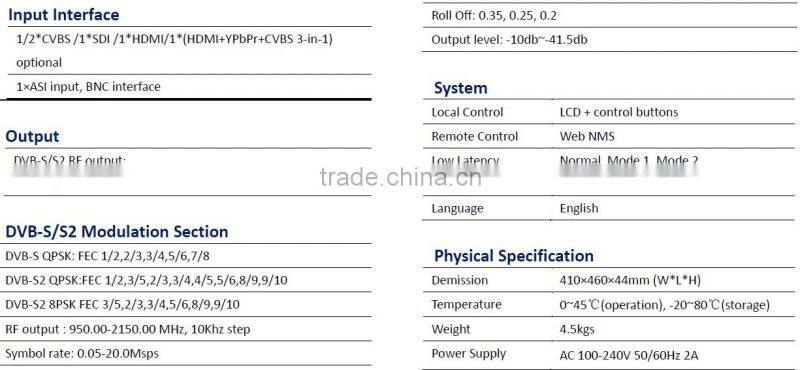

Generals
