Help CenterNDS3242B Component Encoder
Related Products
Specifications
component encoderMPEG2 HD & MPEG4 AVC H.264 HD video encoding
DD AC3 (2.0) audio encoding
4xHDMI/YPbPr in
TS/IP out

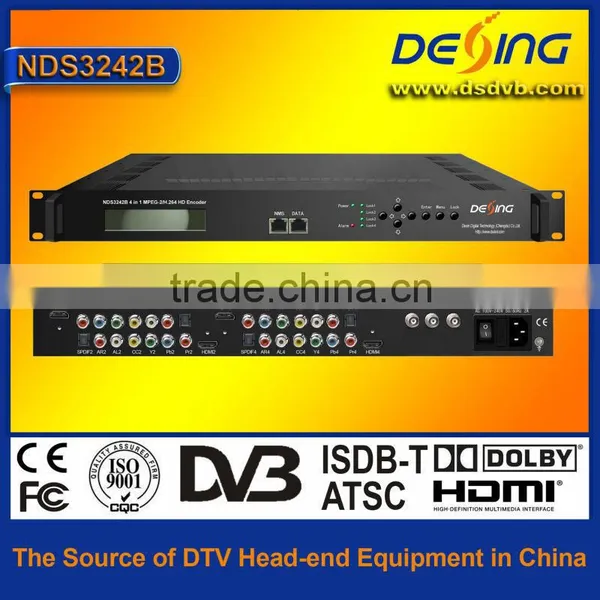

NDS3242B h.264 hd component encoder
Outline
NDS3242B MPEG2/H.264 HD Encoder is DEXIN’s new professional HD audio & video encoding device with powerful functionality.

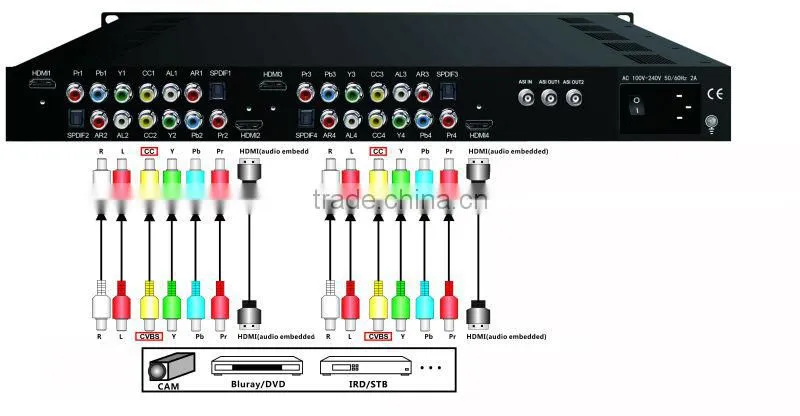

It has equipped with 4 YPbPr/HDMI channels input supporting MPEG-2 & MPEG-4 AVC/H.264 video encoding and DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding and AC3 (2.0/5.1/7.1) passthrough. It is also embedded with 4 CVBS port for CC (Closed Caption) only.
To meet customers’ various requirements, NDS3542B is also equipped with 1 ASI input, and output with 2 ASI ports and 1 IP port.
Features
n MPEG2 HD & MPEG4 AVC H.264 HD video encoding
n DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding
n Support DD AC3 (2.0/5.1/7.1) passthrough
n 4* HDMI/YPbPr channels in
n 1*ASI in for re-mux;
n Support CC (Closed Caption) EIA608, (from CVBS source only)
n Support Low Delay
n LCN (Logical Channel Number) support
n LCD display, Remote control and firmware
n Web-based NMS management; Updates via web

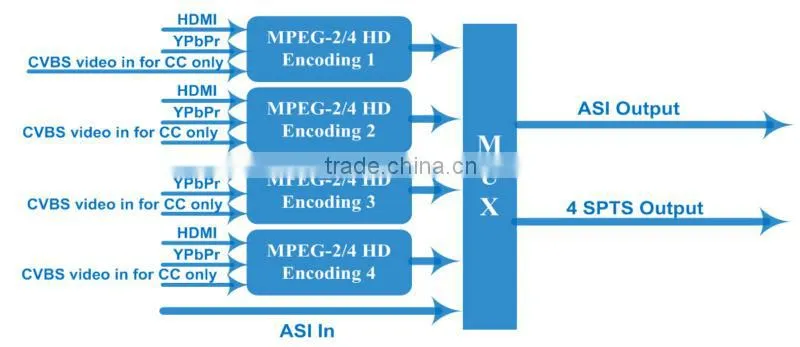

Principle Chart
Specifications
Encoding Section | |
Video (HDMI) | |
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Interface |
HDMI*4 |
Resolution |
1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
Low Delay |
Normal, Mode 1, Mode 2 |
Aspect Ratio |
4:3; 16:9 |
Audio (HDMI) | |
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough |
Interface |
HDMI*4 (SPDIF Not Applicable) |
Sample rate |
48KHz |
Bit rate |
64/96/128/ 192/256/320kbps |
Video (YPbPr) | |
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Interface |
YPbPr*4 (RCA) |
Resolution |
1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
Audio (L/R) | |
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough |
Interface |
4*Stereo/8*mono |
Sample rate |
48KHz |
Bit rate |
64/96/128/ 192/256/320kbps |
System | ||
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS |
|
Stream Out |
2 ASI mirrored out (BNC type, 100M); IP (4 SPTS) over UDP, RTP/RTSP out (RJ45, 100M) |
|
NMS interface |
RJ45, 100M |
|
Language |
English |
|
General | ||
Power supply |
AC 100V~240V |
|
Dimensions |
482*400*44mm |
|
Weight |
4.5 kg |
|
Operation temperature |
0~45℃ |
|
