NDS3242B 4 in 1 Encoder

Name: NDS3242B 4 in 1 Encoder
Brand: dexin
Availability: InStock

FOB Price

US$ 1 - 1,800 / Set

1 Set(Min. Order)

Port chengdu china
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	dexin
Model Number	NDS3242B

Product Description

Specifications

hd 4 in 1 encoder
MPEG2 HD & MPEG4 AVC H.264 HD video encoding
DD AC3 (2.0) audio encoding
4xHDMI/YPbPr in
TS/IP out

NDS3242B h.264 hd 4 in 1 encoder

Outline

NDS3242B MPEG2/H.264 HD Encoder is DEXIN’s new professional HD audio & video encoding device with powerful functionality.

It has equipped with 4 YPbPr/HDMI channels input supporting MPEG-2 & MPEG-4 AVC/H.264 video encoding and DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding and AC3 (2.0/5.1/7.1) passthrough. It is also embedded with 4 CVBS port for CC (Closed Caption) only.

To meet customers’ various requirements, NDS3542B is also equipped with 1 ASI input, and output with 2 ASI ports and 1 IP port.

Features

n MPEG2 HD & MPEG4 AVC H.264 HD video encoding

n DD AC3 (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding

n Support DD AC3 (2.0/5.1/7.1) passthrough

n 4* HDMI/YPbPr channels in

n 1*ASI in for re-mux;

n Support CC (Closed Caption) EIA608, (from CVBS source only)

n Support Low Delay

n LCN (Logical Channel Number) support

n LCD display, Remote control and firmware

n Web-based NMS management; Updates via web

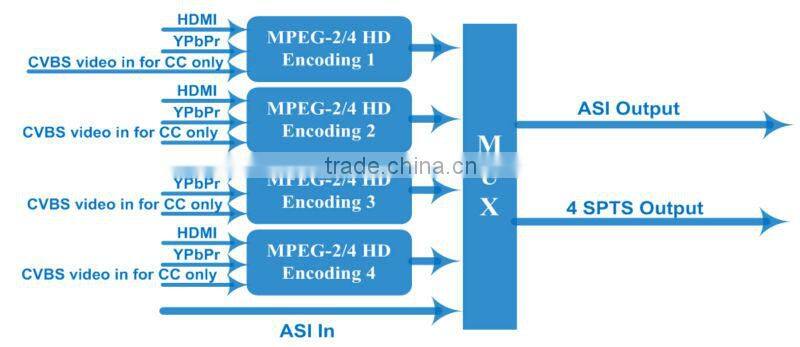

Principle Chart

Specifications

Encoding Section
Video (HDMI)
Encoding	MPEG2; MPEG4 AVC/H.264
Interface	HDMI*4
Resolution	19201080_60i, 19201080_50i, 1280720_60p, 1280720_50P
Low Delay	Normal, Mode 1, Mode 2
Aspect Ratio	4:3; 16:9
Audio (HDMI)
Encoding	MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough
Interface	HDMI*4 (SPDIF Not Applicable)
Sample rate	48KHz
Bit rate	64/96/128/ 192/256/320kbps
Video (YPbPr)
Encoding	MPEG2; MPEG4 AVC/H.264
Interface	YPbPr*4 (RCA)
Resolution	19201080_60i, 19201080_50i; 1280720_60p, 1280720_50P
Audio (L/R)
Encoding	MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD AC3(2.0); DD AC3 (2.0/5.1/7.1) passthrough
Interface	4Stereo/8mono
Sample rate	48KHz
Bit rate	64/96/128/ 192/256/320kbps

System
Local interface	LCD + control buttons
Remote management	Web NMS
Stream Out	2 ASI mirrored out (BNC type, 100M); IP (4 SPTS) over UDP, RTP/RTSP out (RJ45, 100M)
NMS interface	RJ45, 100M
Language	English
General
Power supply		AC 100V~240V
Dimensions		48240044mm
Weight		4.5 kg
Operation temperature		0~45℃
